GRX130-AETUH (2012)

Toyota Mark X

Production Aug 2012 - Nov 2016
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1208-1611)PREM

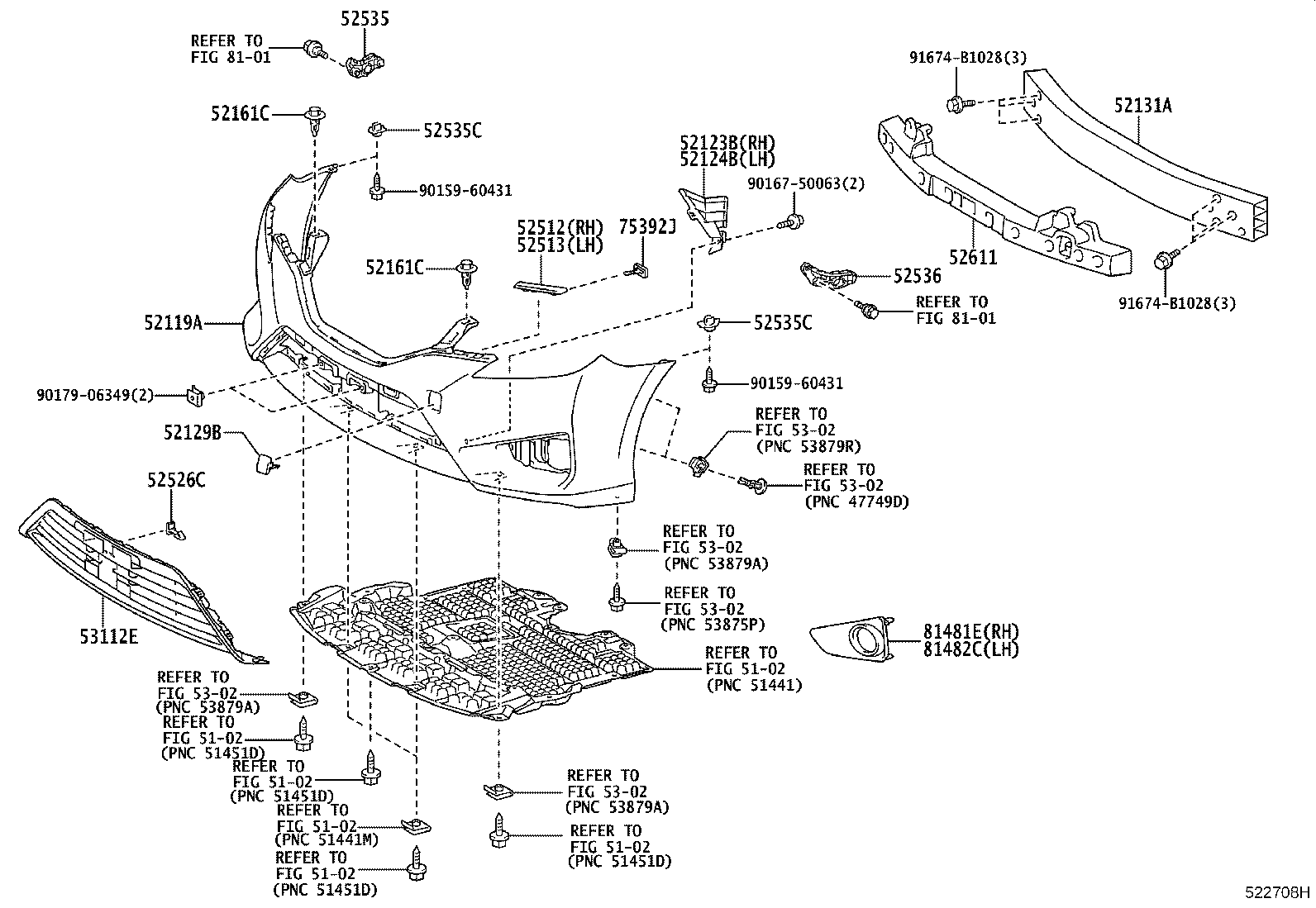

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 52119A 52123B 52124B 52129B 52131A 52161C 52161C 52512 52513 52526C 52535 52535C 52535C 52536 52611 5302 5302 5302 5302 5302 5302 53112E 75392J 8101 8101 81481E 81482C 9015960431 9015960431 9016750063 9017906349 91674B1028 91674B1028
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-22A50B0

GRX130,135

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7

 1
52119-22A40D0

GRX130,135

GINGER RED M.M.,3R6

 1
52119-22A40C0

GRX130,135

BLACK,202

 1
52119-22A50B1

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ICE TITANIUM M.M.,1H4

 1
52119-22A40B0

GRX130,135

SILVER ME.,1F7

 1
52119-22A40E0

GRX130,135

BRONZE M.M.,4T3

 1
52119-22A50A0

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,062

 1
52119-22A50A0

GRX130,135

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,062

 1
52119-22A40A0

GRX130,135

WHITE PEARL CS.,062

 1
52119-22A40B1

GRX130,135

ICE TITANIUM M.M.,1H4

 1
52119-22A50B0

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7

 1
52119-22A50C0

GRX130,135

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202

 1
52119-22A60A0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE PEARL CS.,062

 1
52119-22A50D0

GRX130,135

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GINGER RED M.M.,3R6

 1
52119-22A50E0

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BRONZE M.M.,4T3

 1
52119-22A50E0

GRX130,135

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BRONZE M.M.,4T3

 1
52119-22A60D0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,GINGER RED M.M.,3R6

 1
52119-22A60B1

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,ICE TITANIUM M.M.,1H4

 1
52119-22A50D0

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GINGER RED M.M.,3R6

 1
52119-22A50C0

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202

 1
52119-22A60C0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLACK,202

 1
52119-22A70C0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202

 1
52119-22A70B1

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ICE TITANIUM M.M.,1H4

 1
52119-22A70A0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,062

 1
52119-22A70E0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BRONZEM.M.,4T3

 1
52119-22A50B1

GRX130,135

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ICE TITANIUM M.M.,1H4

 1
52119-22A60E0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BRONZE M.M.,4T3

 1
52119-22A60B0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,1F7

 1
52119-22A70D0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GINGERRED M.M.,3R6

 1
52119-22A70B0

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVERME.,1F7

 1
52119-22B40B1

GRX130,135..PREM

ICE TITANIUM M.M.,1H4

 1
52119-22B40C0

GRX130,135..PREM

BLACK,202

 1
52119-22B40A0

GRX130,135..PREM

WHITE PEARL CS.,062

 1
52119-22B40J0

GRX130,135..PREM

DK.BLUE MC.,8T5

 1
52119-22B40D0

GRX130,135..PREM

DK. RED M.M.,3Q3

 1
52119-22B60D0

GRX130,135..PREM

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK. RED M.M.,3Q3

 1
52119-22B60B0

GRX130,135..PREM

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),SILVER ME.,1F7

 1
52119-22B60C0

GRX130,135..PREM

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),BLACK,202

 1
52119-22B40B0

GRX130,135..PREM

SILVER ME.,1F7

 1
52119-22B60A0

GRX130,135..PREM

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),WHITE PEARL CS.,062

 1
52119-22B60B1

GRX130,135..PREM

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),ICE TITANIUM M.M.,1H4

 1
52119-22B60J0

GRX130,135..PREM

EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き&ｻｲﾄﾞﾓﾆﾀ付き),DK.BLUE MC.,8T5

 1
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
52123-22060

GRX13#

 1
52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH
52124-22040

GRX13#

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-22070B0

GRX13#

SILVER ME.,1F7

 1
52129-22070C0

GRX13#

BLACK,202

 1
52129-22070J0

GRX13#

DK.BLUE MC.,8T5

 1
52129-22070A0

GRX13#

WHITE PEARL CS.,062

 1
52129-22070D0

GRX13#

DK. RED M.M.,3Q3

 1
52129-22070B1

GRX13#

ICE TITANIUM M.M.,1H4

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-22210

GRX13#

 1
52131-22210

GRX13#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

GRX13#

 2
52161-16010

GRX13#

 2
52161C - PIECE, FRONT BUMPER
52161-16010

GRX13#

 2
52161-16010

GRX13#

 2
52512 - FILLER, FRONT BUMPER, RH
52502-22010

GRX13#

 1
52513 - FILLER, FRONT BUMPER, LH
52503-22010

GRX13#

 1
52526C - RETAINER, FRONT BUMPER, LOWER
52535-28020

GRX13#..350S,PREM

 4
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-22100

GRX13#

 1
52535-22100

GRX13#

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

GRX13#

 2
52535-50060

GRX13#

 2
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060

GRX13#

 2
52535-50060

GRX13#

 2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-22080

GRX13#

 1
52536-22080

GRX13#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-22330

GRX13#

 1
52611-22330

GRX13#

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-22180

GRX13#..PREM

ﾒｯｷ

 1
75392J - RETAINER, OUTSIDE MOULDING
75392-35200

GRX13#

 4
81481E - COVER, FOG LAMP, RH
52127-22150

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
52127-22190

GRX13#..PREM

 1
52127-22150

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
52127-22150

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
52127-22150

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
81482C - COVER, FOG LAMP, LH
52128-22100

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
52128-22100

GRX130

Sﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
52128-22140

GRX13#..PREM

 1
52128-22100

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
52128-22100

GRX130,135

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り

 1
Common parts
90159-60431
90167-50063
90179-06349
91674-B1028
Linked diagrams
5102
5302
8101
