GRX130-AETSH (2016)

Toyota Mark X

Production Nov 2016 - Dec 2019
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

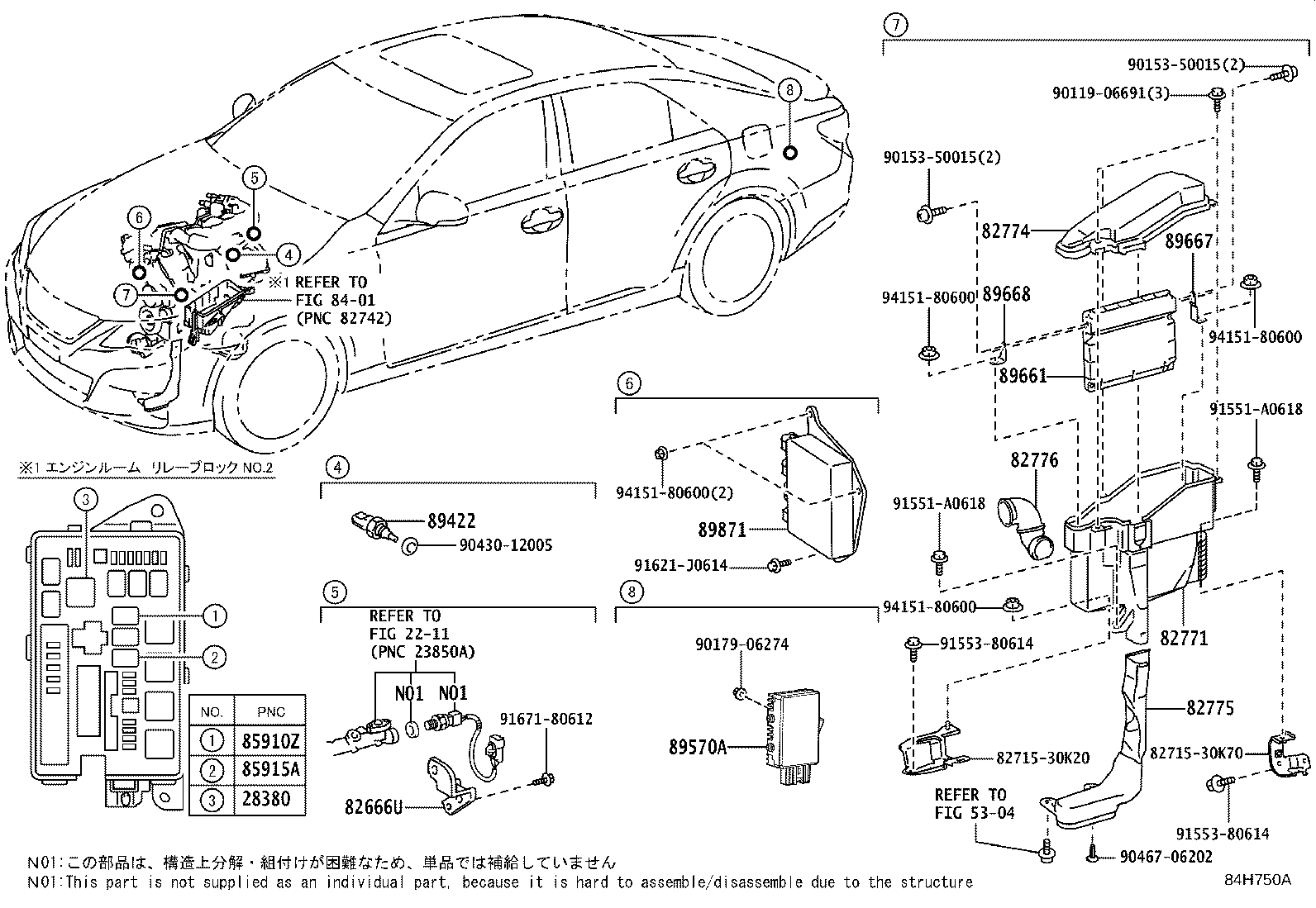

Click highlighted areas on diagram

diagram 2211 28380 5304 82666U 8271530K20 8271530K70 82771 82774 82775 82776 8401 85910Z 85915A 89422 89570A 89661 89667 89668 89871 9011906691 9015350015 9015350015 9017906274 9043012005 9046706202 91551A0618 91551A0618 9155380614 9155380614 91621J0614 9167180612 9415180600 9415180600 9415180600 9415180600
Part # Description Qty Price
82666U - HOLDER, CONNECTOR
82666-30780

GRX13#

 1
82666-30780

GRX13#

 1
82771 - BOX, ENGINE ROOM ECU
82771-30060

GRX13#

 1
82771-30060

GRX13#

 1
82774 - COVER, ENGINE ROOM ECU
82774-22010

GRX13#

 1
82774-22010

GRX13#

 1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-22020

GRX13#

 1
82775-22020

GRX13#

 1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-22040

GRX13#

 1
82776-22040

GRX13#

 1
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027

GRX13#

 1
90987-02027

GRX13#

 1
85915A - RELAY, MAIN
90987-02027

GRX13#

 1
90987-02027

GRX13#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

GRX13#

 1
89422-33030

GRX13#

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-22200

GRX130,135

 1
89570-30300

GRX130,135

 1
89661 - COMPUTER, ENGINE CONTROL
89661-22A60

GRX130

DENSO

 1
89661-22C00

GRX130..250S

DENSO,GR SPORT

 1
89661-22B70

GRX130

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30300

GRX13#

 1
89667-30300

GRX13#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-30280

GRX13#

 1
89668-30280

GRX13#

 1
89871 - DRIVER, INJECTOR
89871-53010

GRX13#

 1
89871-53010

GRX13#

 1
Common parts
82715-30K20
82715-30K70
90119-06691
90153-50015
90179-06274
90430-12005
90467-06202
91551-A0618
91553-80614
91621-J0614
91671-80612
94151-80600
Linked diagrams
2211
5304
8401
