GRX125-AEAZH (2004)

Toyota Mark X

Production Nov 2004 - Oct 2006
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0411-0610)

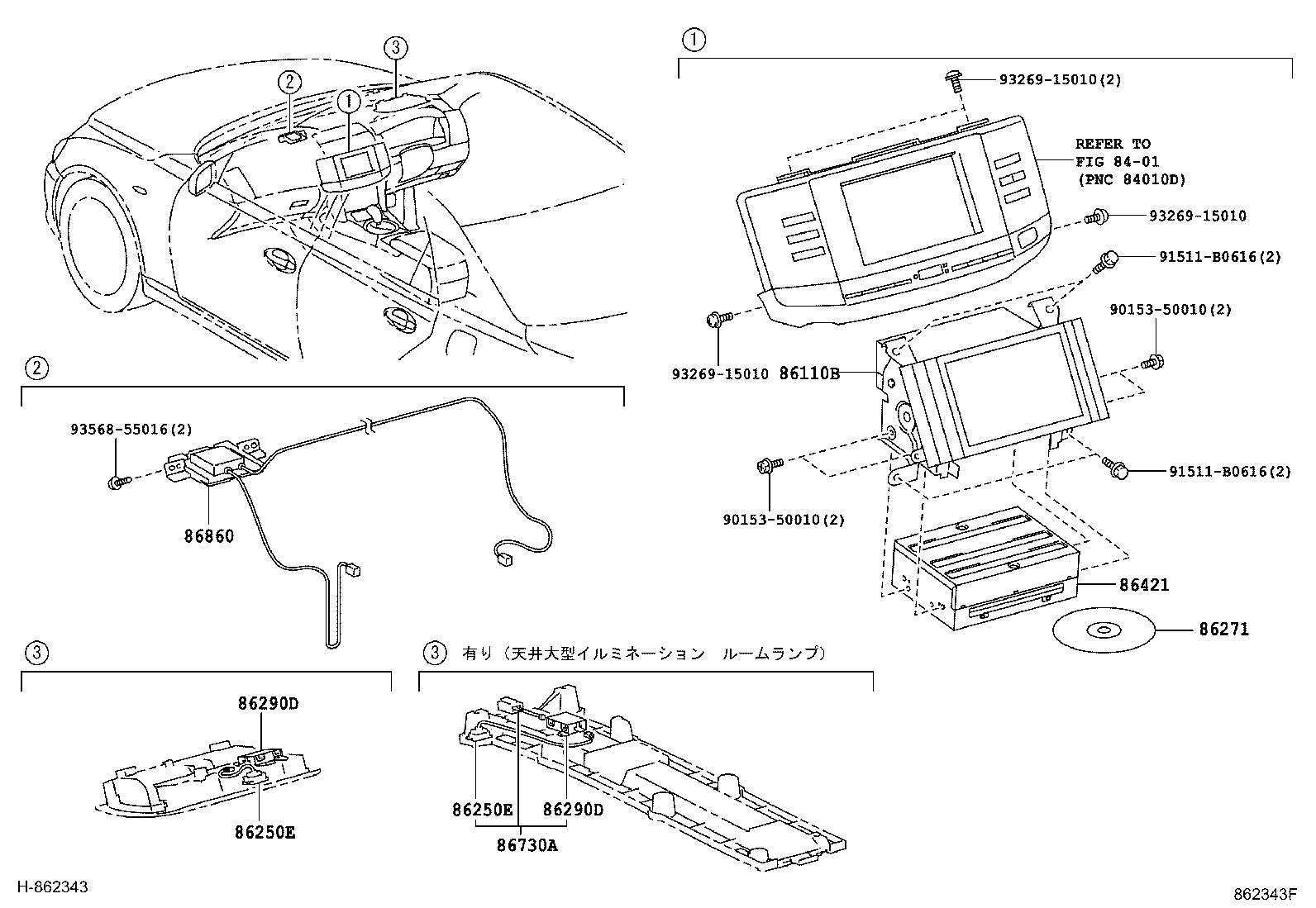

Click highlighted areas on diagram

diagram 8401 86110B 86250E 86250E 86271 86290D 86290D 86421 86730A 86860 9015350010 9015350010 91511B0616 91511B0616 9326915010 9326915010 9326915010 9356855016
Part # Description Qty Price
86110B - MULTI-DISPLAY ASSY
86111-22050

GRX12#

PANASONIC,EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞ[ｼｮﾝ)

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-47020

GRX120,125

ﾙｰﾑﾗﾝﾌﾟ−天井大型ｲﾙﾐﾈｰｼｮﾝ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86250-47010

GRX120,125

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-47020

GRX120,125

ﾙｰﾑﾗﾝﾌﾟ−天井大型ｲﾙﾐﾈｰｼｮﾝ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86250-47010

GRX120,125

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86271 - DISC, DISC PLAYER
86271-13064

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86271-13063

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86271-13066

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86271-13065

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86290D - AMPLIFIER ASSY, MICROPHONE
86290-47010

GRX120,125

ﾙｰﾑﾗﾝﾌﾟ−天井大型ｲﾙﾐﾈｰｼｮﾝ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86290-47010

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86290D - AMPLIFIER ASSY, MICROPHONE
86290-47010

GRX120,125

ﾙｰﾑﾗﾝﾌﾟ−天井大型ｲﾙﾐﾈｰｼｮﾝ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86290-47010

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86421 - BOARD, NAVIGATION MODULE
86421-30020

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86421-30020

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86421-30020

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-22030

GRX120,125

ﾙｰﾑﾗﾝﾌﾟ−天井大型ｲﾙﾐﾈｰｼｮﾝ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-22070

GRX12#

EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ)

 1
Common parts
90153-50010
91511-B0616
93269-15010
93568-55016
Linked diagrams
8401
