Toyota Mark x GRX121 HEADLAMP - JDM Part Detective

Part #	Description	Period	Qty
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-22A10	GRX12#..250G,300G	11/2004 - 10/2006	1
81107-22A10	GRX12#..250G,300G	10/2006 - 12/2999	1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-22A10	GRX12#..250G,300G	10/2006 - 12/2999	1
81107-22A10	GRX12#..250G,300G	11/2004 - 10/2006	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	GRX12# 12V65W(SAE),60W(ECE)	11/2004 - 10/2006	2
90981-13046	GRX12# 12V65W(SAE),60W(ECE)	10/2006 - 12/2999	2
81110L - BULB, DISCHARGE HEADLAMP
90981-20013	GRX12# 45V 35W	11/2004 - 10/2006	2
90981-20013	GRX12# 45V 35W	10/2006 - 05/2008	2
90981-20021	GRX12# 45V 35W	06/2008 - 10/2008	2
90981-20024	GRX12# 42V 35W	11/2008 - 12/2999	2
81134 - GASKET, HEADLAMP
90075-68007	GRX12#	10/2006 - 12/2999	1
90075-68007	GRX12#..250G,300G	11/2004 - 10/2006	4
81134 - GASKET, HEADLAMP
90075-68007	GRX12#	10/2006 - 12/2999	1
90075-68007	GRX12#..250G,300G	11/2004 - 10/2006	4
81135 - UNIT ASSY, HEADLAMP, RH
81145-22A60	GRX12#..250G,300G	10/2006 - 12/2999	1
81145-22A10	GRX12#..250G,300G	11/2004 - 10/2006	1
81139 - COVER, HEADLAMP SOCKET
81139-22A20	GRX12#	10/2006 - 12/2999	2
81139-22A20	GRX12#	11/2004 - 10/2006	2
81145 - COVER, HEADLAMP, NO.2
90075-99054	GRX12#	10/2006 - 12/2999	2
90075-99054	GRX12#	11/2004 - 10/2006	2
81175 - UNIT ASSY, HEADLAMP, LH
81185-22A60	GRX12#..250G,300G	10/2006 - 12/2999	1
81185-22A10	GRX12#..250G,300G	11/2004 - 10/2006	1
81210D - BULB, FOG LAMP
90981-13083	GRX12# 12V 35W,ﾊﾛｹﾞﾝ	10/2006 - 12/2999	2
90981-13047	GRX12# 12V 55W,ﾊﾛｹﾞﾝ	11/2004 - 10/2006	2
81212D - COVER, FOG LAMP
90075-65010	GRX12#	11/2004 - 10/2006	2
90075-65010	GRX12#	10/2006 - 12/2999	2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	GRX12# 12V 21W,ｱﾝﾊﾞｰ	10/2006 - 12/2999	2
90981-15011	GRX12# 12V 21W,ｱﾝﾊﾞｰ	11/2004 - 10/2006	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	GRX12#	10/2006 - 12/2999	2
90075-60028	GRX12#	11/2004 - 10/2006	2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050	GRX12# 12V 5W	11/2004 - 10/2006	2
99132-12050	GRX12# 12V 5W	10/2006 - 12/2999	2
81615D - SOCKET, CLEARANCE LAMP
90075-60046	GRX12#	11/2004 - 01/2005	2
90075-60077	GRX12#	10/2006 - 12/2999	2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-12020	GRX12#..250G,300G	10/2006 - 12/2999	1
85661-12020	GRX12#..250G,300G	11/2004 - 10/2006	1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-12020	GRX12#..250G,300G	10/2006 - 12/2999	1
85661-12020	GRX12#..250G,300G	11/2004 - 10/2006	1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120	GRX12#	10/2006 - 12/2999	2
90075-99120	GRX12#	11/2004 - 10/2006	2
Common parts
90075-02727
90105-06298
90109-06374

GRX121-AETZH (2006)

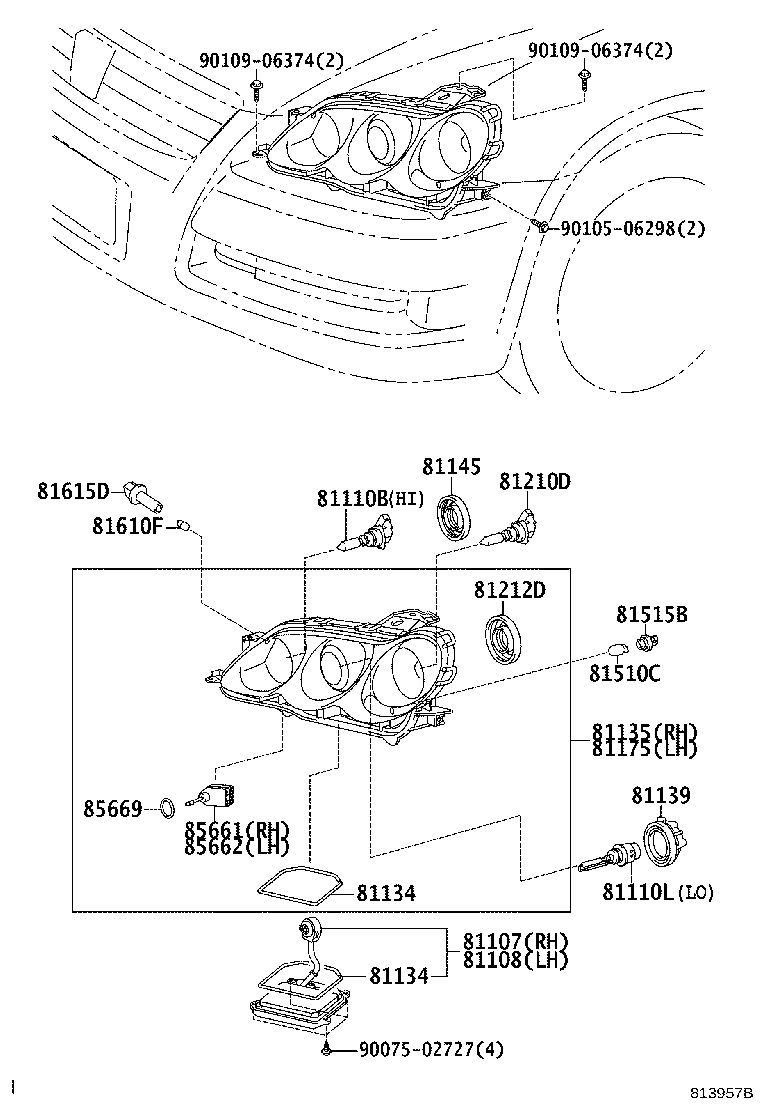

ILLUST NO. 1 OF 2(0610- )250G,300G
