GRX121-AETZH (2004)

Toyota Mark X

Production Nov 2004 - Oct 2006
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0411-0610)

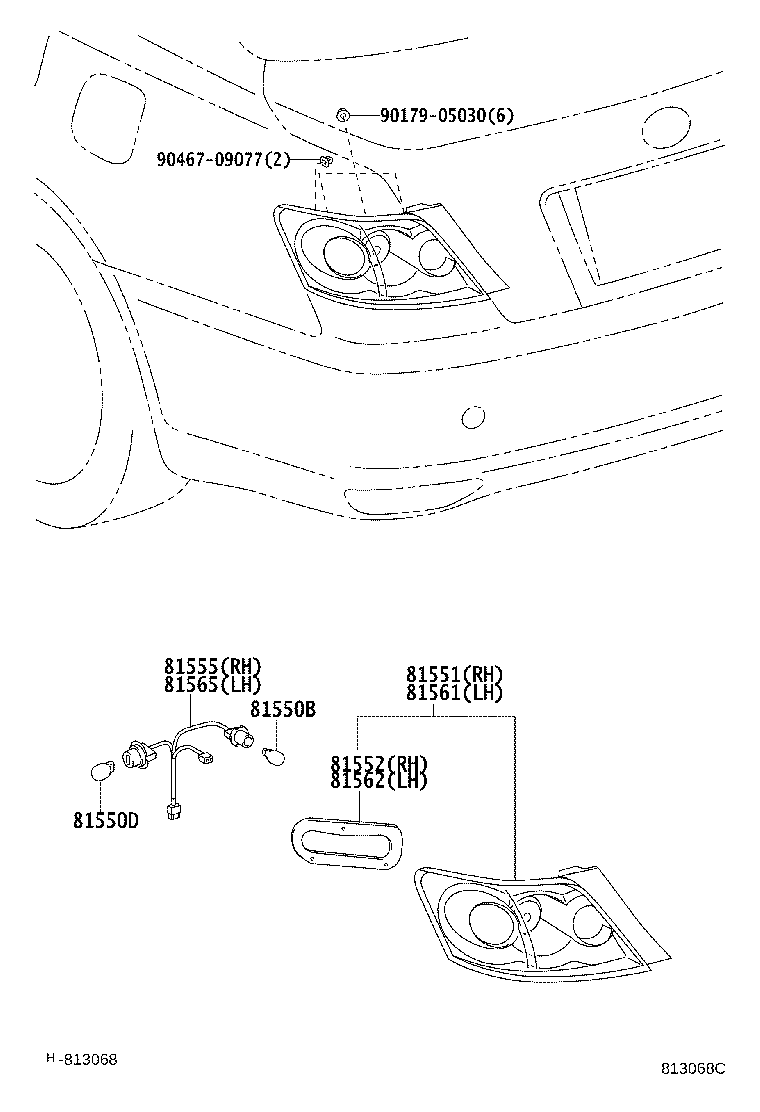

Click highlighted areas on diagram

diagram 81550B 81550D 81551 81552 81555 81561 81562 81565 9017905030 9046709077
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-11059

GRX12#

12V 16W

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
90981-15011

GRX12#

12V 21W,ｱﾝﾊﾞｰ

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-22A00

GRX12#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-22A00

GRX12#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-22A00

GRX12#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-22A00

GRX12#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-22A00

GRX12#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-22A00

GRX12#

 1
Common parts
90179-05030
90467-09077
