GRX121-AETZH (2004)
Toyota Mark X

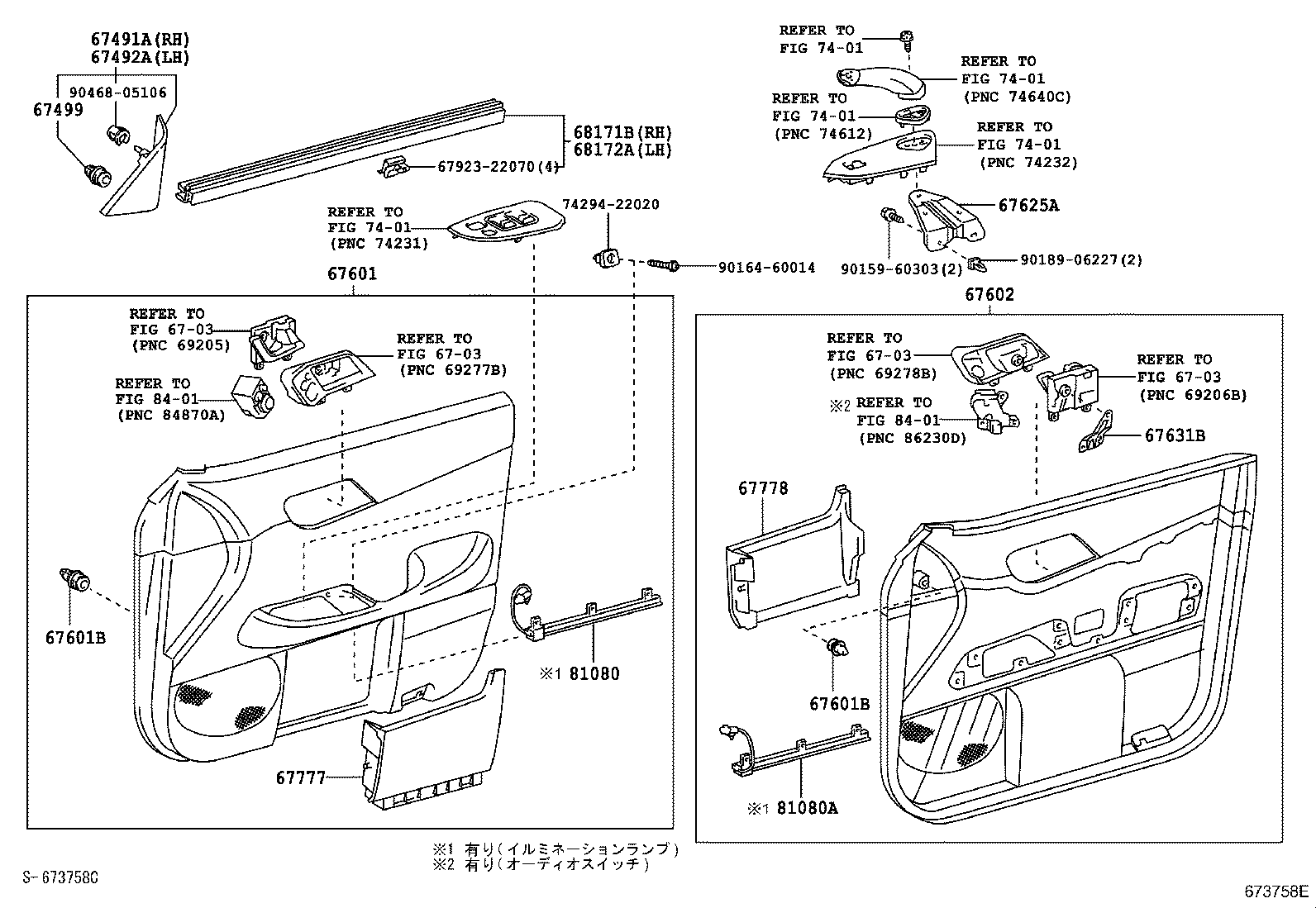

ILLUST NO. 2 OF 2(0411- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-22160 |
GRX12# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-22160 |
GRX12# |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12060 |
GRX12# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-22A30E1 |
GRX121 BLACK,TRIM4# |
1 | ||
| 67610-22A30A1 |
GRX121 IVORY,TRIM0# |
1 | ||
| 67610-22A60A1 |
GRX121 ｼｰﾄ表皮−本革,IVORY,TRIM0# |
1 | ||
| 67610-22A60A1 |
GRX121 ｼｰﾄ表皮−本革&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ),IVORY,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRX12# |
16 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRX12# |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-22A20E0 |
GRX121 BLACK,TRIM4# |
1 | ||
| 67620-22A80A0 |
GRX121 ｼｰﾄ表皮−本革,IVORY,TRIM0# |
1 | ||
| 67620-22A30E0 |
GRX121 EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ),BLACK,TRIM4# |
1 | ||
| 67620-22A20A0 |
GRX121 IVORY,TRIM0# |
1 | ||
| 67620-22A30A0 |
GRX121 EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ),IVORY,TRIM0# |
1 | ||
| 67620-22A90A0 |
GRX121 ｼｰﾄ表皮−本革&EMV & ﾅﾋﾞｹﾞｰｼｮﾝ ｼｽﾃﾑ−有り(DVDﾎﾞｲｽﾅﾋﾞｹﾞｰｼｮﾝ),IVORY,TRIM0# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67645-22070 |
GRX12# |
1 | ||
| 67631B - RETAINER, FRONT DOOR TRIM, UPPER | ||||
| 67631-22010 |
GRX12# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-22170C0 |
GRX12# BLACK,TRIM2#,4# |
1 | ||
| 67777-22170A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-22170A0 |
GRX12# IVORY,TRIM0# |
1 | ||
| 67778-22170C0 |
GRX12# BLACK,TRIM2#,4# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-22050 |
GRX12# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-22030 |
GRX12# |
1 | ||
| 81080 - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-22020 |
GRX121 |
1 | ||
| 81080A - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-22030 |
GRX121 |
1 | ||
| Common parts | ||||
| 67923-22070 | ||||
| 74294-22020 | ||||
| 90159-60303 | ||||
| 90164-60014 | ||||
| 90189-06227 | ||||
| 90468-05106 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8401 | ||||

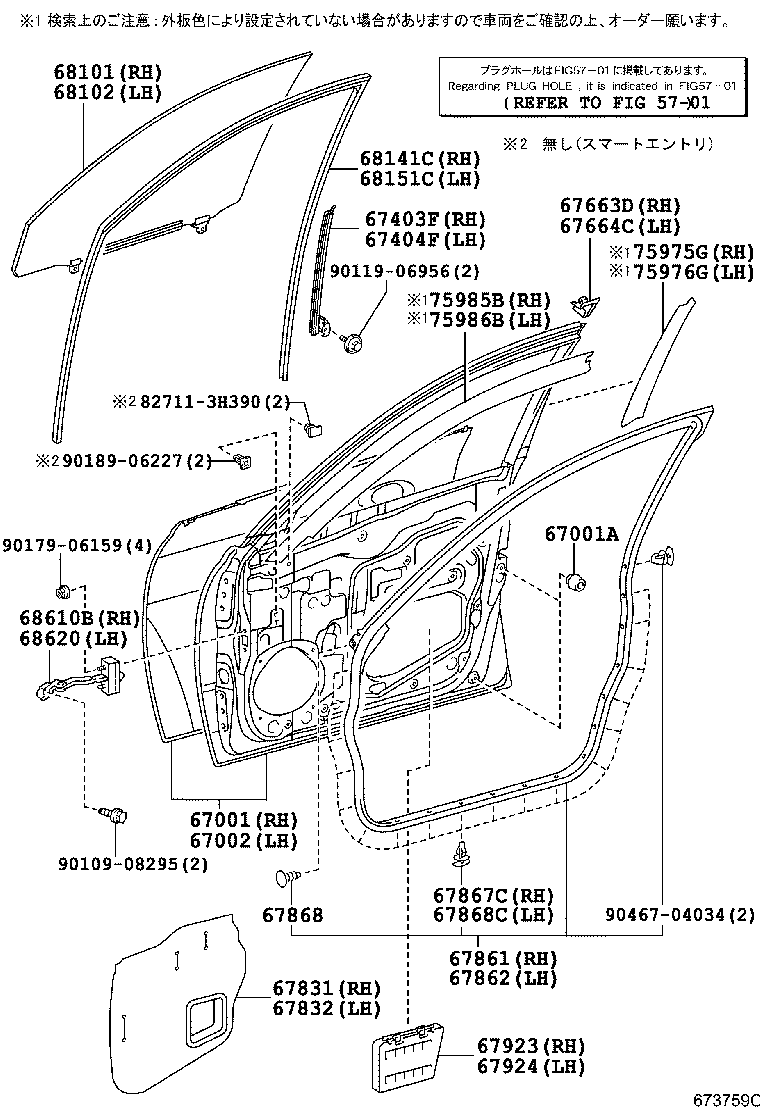

ILLUST NO. 1 OF 2(0411- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22460 |
GRX12# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
GRX12# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22480 |
GRX12# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-22130 |
GRX12# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-22130 |
GRX12# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-22010 |
GRX12# |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-22010 |
GRX12# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22270 |
GRX12# |
1 | ||
| 67831-22271 |
GRX12# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-22170 |
GRX12# |
1 | ||
| 67832-22171 |
GRX12# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22330 |
GRX12# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22330 |
GRX12# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GRX12# |
18 | ||
| 67868 - CLIP, FRONT DOOR GLASS WEATHERSTRIP | ||||
| 67868-30030 |
GRX12# |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GRX12# |
18 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-22060 |
GRX12# |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-22040 |
GRX12# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-22440 |
GRX121 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-22440 |
GRX121 *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-22290 |
GRX12# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-22220 |
GRX12# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-22130 |
GRX12# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-22090 |
GRX12# |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-22030 |
GRX12# ｲﾗｽﾄ参照 |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-22030 |
GRX12# ｲﾗｽﾄ参照 |
1 | ||
| 75985B - STRIPE, FRONT DOOR, NO.3 RH | ||||
| 75985-22080 |
GRX12# ｲﾗｽﾄ参照 |
1 | ||
| 75986B - STRIPE, FRONT DOOR, NO.3 LH | ||||
| 75986-22070 |
GRX12# ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 82711-3H390 | ||||
| 90109-08295 | ||||
| 90119-06956 | ||||
| 90179-06159 | ||||
| 90189-06227 | ||||
| 90467-04034 | ||||
| Linked diagrams | ||||
| 5701 | ||||
