GRX121-AETZH (2004)

Toyota Mark X

Production Nov 2004 - Oct 2006
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0411- )

Click highlighted areas on diagram

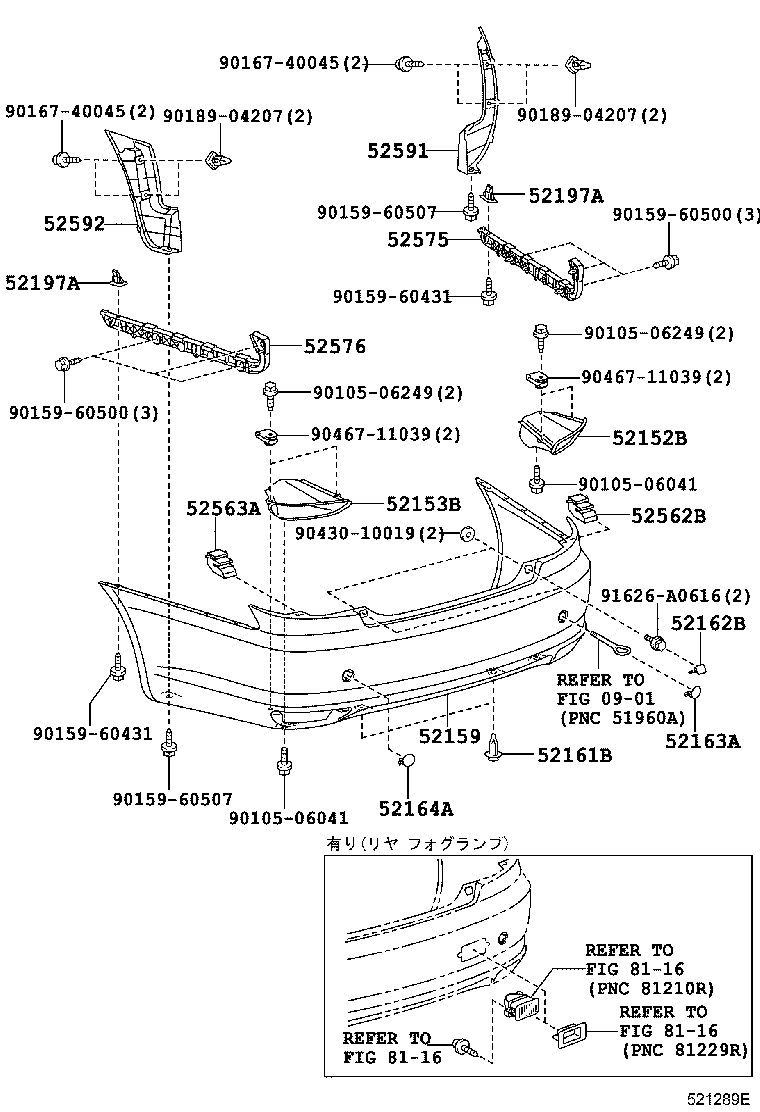

diagram 0901 52152B 52153B 52159 52161B 52162B 52163A 52164A 52197A 52197A 52562B 52563A 52575 52576 52591 52592 8116 8116 8116 9010506041 9010506041 9010506249 9010506249 9015960431 9015960431 9015960500 9015960500 9015960507 9015960507 9016740045 9016740045 9018904207 9018904207 9043010019 9046711039 9046711039 91626A0616
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52106-22080

GRX12#

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-22080

GRX12#

 1
52159 - COVER, REAR BUMPER
52159-22700B0

GRX12#

SILVER ME.,1F7

 1
52159-22700D0

GRX12#

DK. RED M.M.,3Q3

 1
52159-22710D0

GRX12#

有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ),DK. RED M.M.,3Q3

 1
52159-22710C0

GRX12#

有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ),BLACK MC.,211

 1
52159-22700J0

GRX12#

DK.BLUE MC.,8S6

 1
52159-22700A0

GRX12#

WHITE PEARL CS.,062

 1
52159-22700J1

GRX12#

LT.BLUE ME.,8S7

 1
52159-22710J0

GRX12#

有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ),DK.BLUE MC.,8S6

 1
52159-22710J1

GRX12#

有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ),LT.BLUE ME.,8S7

 1
52159-22700B1

GRX12#

ﾓﾃﾞﾘｽﾀ−ｳﾞｪﾙﾃｨｶﾞ,GRAY ME.,1D2

 1
52159-22710A0

GRX12#

有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ),WHITE PEARL CS.,062

 1
52159-22700C0

GRX12#

BLACK MC.,211

 1
52159-22710B0

GRX12#

有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ),SILVER ME.,1F7

 1
52161B - PIECE, REAR BUMPER
52161-16010

GRX12#

 2
52162B - PLATE, REAR BUMPER, NO.1
52162-30060A1

GRX12#

WHITE PEARL CS.,062

 2
52162-30060B3

GRX12#

ﾓﾃﾞﾘｽﾀ−ｳﾞｪﾙﾃｨｶﾞ,GRAY ME.,1D2

 2
52162-30060J2

GRX12#

DK.BLUE MC.,8S6

 2
52162-30060C1

GRX12#

BLACK MC.,211

 2
52162-30060D1

GRX12#

DK. RED M.M.,3Q3

 2
52162-30060B2

GRX12#

SILVER ME.,1F7

 2
52162-30060J3

GRX12#

LT.BLUE ME.,8S7

 2
52163A - PLATE, REAR BUMPER, RH
52163-22090J1

GRX12#

LT.BLUE ME.,8S7

 1
52163-22090A0

GRX12#

WHITE PEARL CS.,062

 1
52163-22090C0

GRX12#

BLACK MC.,211

 1
52163-22090D0

GRX12#

DK. RED M.M.,3Q3

 1
52163-22090B0

GRX12#

SILVER ME.,1F7

 1
52163-22090B1

GRX12#

ﾓﾃﾞﾘｽﾀ−ｳﾞｪﾙﾃｨｶﾞ,GRAY ME.,1D2

 1
52163-22090J0

GRX12#

DK.BLUE MC.,8S6

 1
52164A - PLATE, REAR BUMPER, LH
52164-22060C0

GRX12#

BLACK MC.,211

 1
52164-22060A0

GRX12#

WHITE PEARL CS.,062

 1
52164-22060J1

GRX12#

LT.BLUE ME.,8S7

 1
52164-22060B1

GRX12#

ﾓﾃﾞﾘｽﾀ−ｳﾞｪﾙﾃｨｶﾞ,GRAY ME.,1D2

 1
52164-22060B0

GRX12#

SILVER ME.,1F7

 1
52164-22060D0

GRX12#

DK. RED M.M.,3Q3

 1
52164-22060J0

GRX12#

DK.BLUE MC.,8S6

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-22020

GRX12#

 2
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-22020

GRX12#

 2
52562B - RETAINER, REAR BUMPER, UPPER RH
52561-22150

GRX12#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52561-22150

GRX12#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-22110

GRX12#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-22110

GRX12#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-22050

GRX12#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-22040

GRX12#

 1
Common parts
90105-06041
90105-06249
90159-60431
90159-60500
90159-60507
90167-40045
90189-04207
90430-10019
90467-11039
91626-A0616
Linked diagrams
0901
8116
