GRX121-AETZH (2004)

Toyota Mark X

Production Nov 2004 - Oct 2006
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0411- )GRX120,121

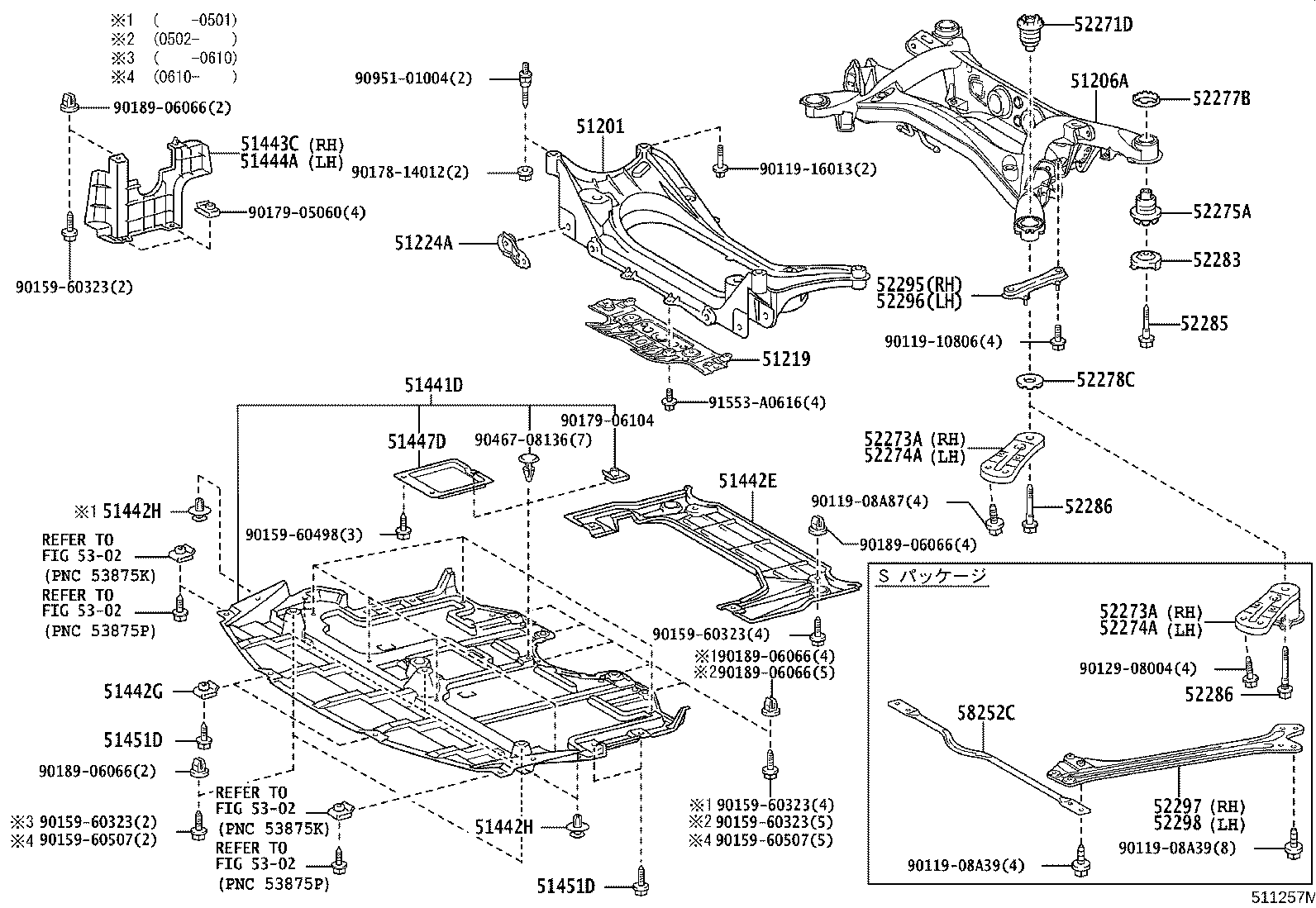

Click highlighted areas on diagram

diagram 51201 51206A 51219 51224A 51441D 51442E 51442G 51442H 51442H 51443C 51444A 51447D 51451D 51451D 52271D 52273A 52273A 52274A 52274A 52275A 52277B 52278C 52283 52285 52286 52286 52295 52296 52297 52298 5302 5302 5302 5302 58252C 9011908A39 9011908A39 9011908A87 9011910806 9011916013 9012908004 9015960323 9015960323 9015960323 9015960323 9015960323 9015960498 9015960507 9015960507 9017814012 9017905060 9017906104 9018906066 9018906066 9018906066 9018906066 9018906066 9046708136 9095101004 91553A0616
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-30130

GRX120,121

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-30080

GRX12#

 1
51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51219-30030

GRX120,121

 1
51219-30031

GRX120,121

 1
51224A - PLATE, FRONT SUSPENSION MENBER BRACE
51224-30030

GRX120,121

 2
51441D - COVER, ENGINE UNDER
51410-22021

GRX120,121

 1
51410-22020

GRX120,121

 1
51410-22022

GRX120,121

 1
51442E - COVER, ENGINE UNDER, NO.2
51442-30130

GRX120,121

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90179-05025

GRX12#

 2
90467-05166

GRX12#

 2
51442H - CLIP, ENGINE UNDER COVER, NO.2
90467-07166

GRX12#

 3
90467-07166

GRX12#

 5
51442H - CLIP, ENGINE UNDER COVER, NO.2
90467-07166

GRX12#

 3
90467-07166

GRX12#

 5
51443C - COVER, ENGINE UNDER, REAR RH
51443-30140

GRX120,121

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-30170

GRX120,121

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-30080

GRX120,121

 1
51447-30080

GRX120,121

 1
51447-30080

GRX120,121

 1
51451D - SCREW, NO.1
90159-60477

GRX12#

 4
51451D - SCREW, NO.1
90159-60477

GRX12#

 4
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-30110

GRX12#

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-30080

GRX12#

 1
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-30080

GRX12#

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-30080

GRX12#

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-30080

GRX12#

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30120

GRX12#

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30060

GRX12#

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-30050

GRX12#

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30060

GRX12#

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-22020

GRX12#

 2
52285-30021

GRX12#

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-53020

GRX12#

 2
52286-30010

GRX12#

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-53020

GRX12#

 2
52286-30010

GRX12#

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30030

GRX12#

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-30030

GRX12#

 1
Common parts
90119-08A39
90119-08A87
90119-10806
90119-16013
90129-08004
90159-60323
90159-60498
90159-60507
90178-14012
90179-05060
90179-06104
90189-06066
90467-08136
90951-01004
91553-A0616
Linked diagrams
5302
