GRX121-AETUH (2004)

Toyota Mark X

Production Nov 2004 - Oct 2006
Engine 3GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0411- )

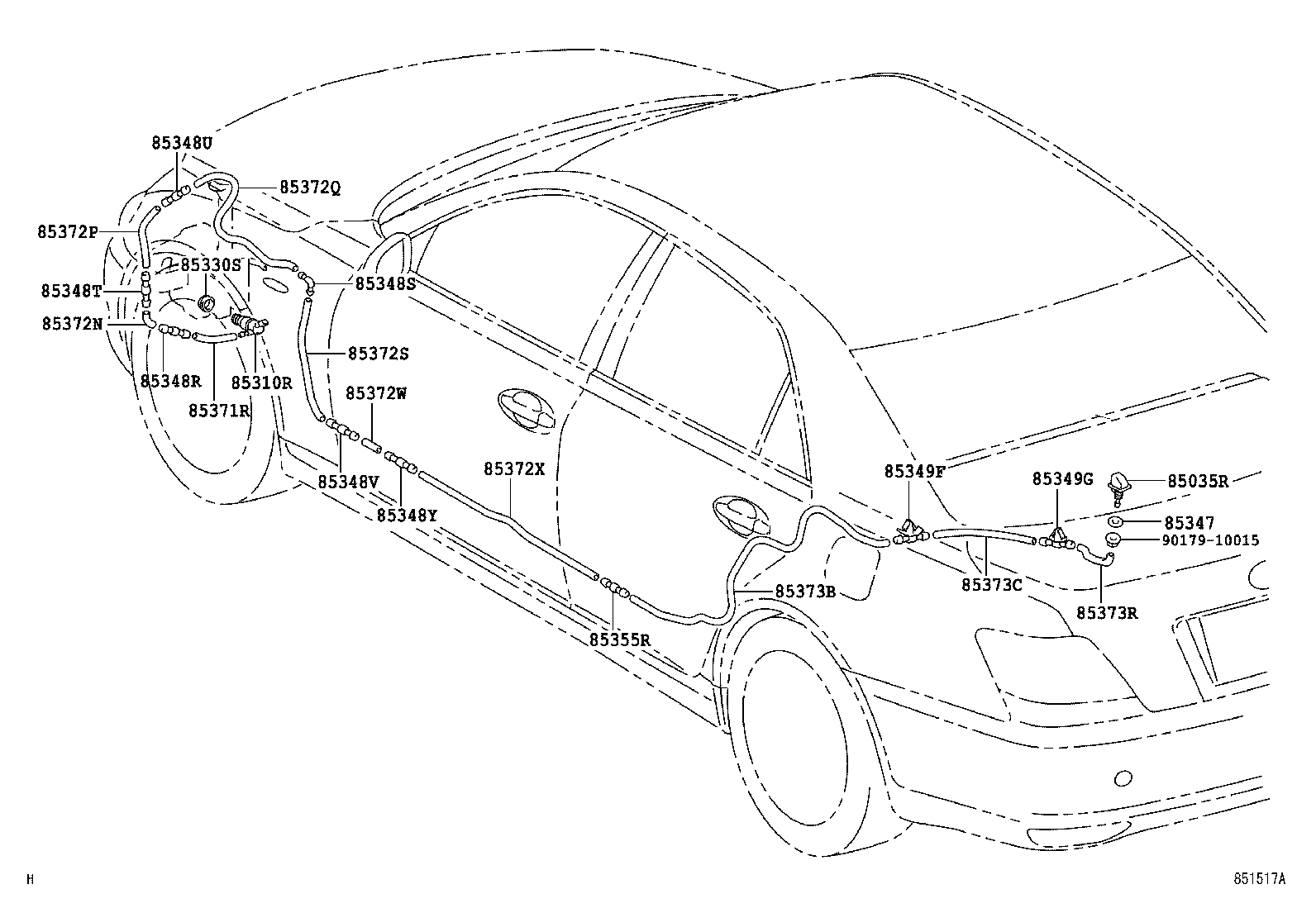

Click highlighted areas on diagram

diagram 85035R 85310R 85330S 85347 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349G 85355R 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85373C 85373R 9017910015
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-22080

GRX12#

寒冷地仕様

 1
85310R - MOTOR ASSY, REAR WASHER
85330-60160

GRX12#

寒冷地仕様

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

GRX12#

寒冷地仕様

 1
85347 - PACKING, REAR WASHER
85347-12010

GRX12#

寒冷地仕様

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

GRX12#

寒冷地仕様

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

GRX12#

寒冷地仕様

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

GRX12#

寒冷地仕様

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

GRX12#

寒冷地仕様

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

GRX12#

寒冷地仕様

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

GRX12#

寒冷地仕様

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85375-20800

GRX12#

寒冷地仕様

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85375-17050

GRX12#

寒冷地仕様

 1
85355R - VALVE, REAR WASHER HOSE
85321-26020

GRX12#

寒冷地仕様

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

GRX12#

*H,L=150,寒冷地仕様

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GRX12#

*H,L=50,寒冷地仕様

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

GRX12#

*H,L=130,寒冷地仕様

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

GRX12#

*H,L=950,寒冷地仕様

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

GRX12#

*H,L=590,寒冷地仕様

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

GRX12#

*H,L=40,寒冷地仕様

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90446-07001

GRX12#

*H,L=1280,寒冷地仕様

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90446-07001

GRX12#

*H,L=1580,寒冷地仕様

 1
85373C - TUBE, REAR WASHER RUBBER
90446-07001

GRX12#

*H,L=200,寒冷地仕様

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374-22030

GRX12#

長さ=150,寒冷地仕様

 1
Common parts
90179-10015
