Toyota Mark x GRX121 HOOD & FRONT FENDER

GRX121-AETUH (2004)

Toyota Mark X

Production Nov 2004 - Oct 2006

Engine 3GRFSE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

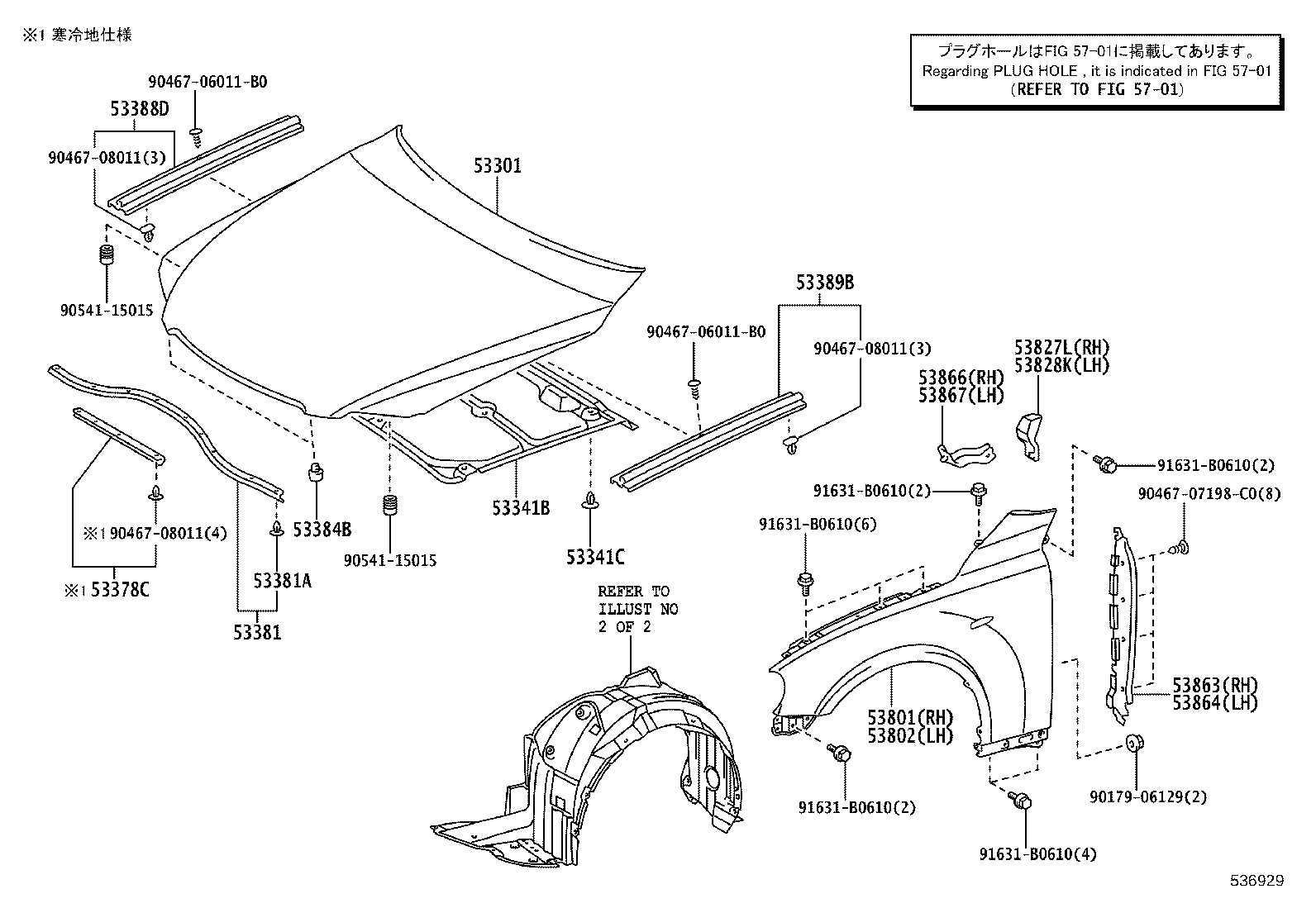

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-22420	GRX12#	11/2004 - 10/2006	1
53341B - INSULATOR, HOOD
53341-22180	GRX12#	11/2004 - 10/2006	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-08124	GRX12#	11/2004 - 10/2006	8
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-22080	GRX12# 寒冷地仕様	11/2004 - 10/2006	1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-22190	GRX12#	11/2004 - 10/2006	1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011	GRX12#	11/2004 - 10/2006	9
53384B - CUSHION, HOOD, CENTER
53384-60050	GRX12#	11/2004 - 10/2006	2
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-22070	GRX12#	11/2004 - 10/2006	1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-22060	GRX12#	11/2004 - 10/2006	1
53801 - FENDER SUB-ASSY, FRONT RH
53811-22A00	GRX12#	11/2004 - 10/2006	1
53802 - FENDER SUB-ASSY, FRONT LH
53812-22A00	GRX12#	11/2004 - 10/2006	1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-22040	GRX12#	11/2004 - 10/2006	1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-22040	GRX12#	11/2004 - 10/2006	1
53863 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH
53863-22040	GRX12#	11/2004 - 10/2006	1
53864 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH
53864-22050	GRX12#	11/2004 - 10/2006	1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-22120	GRX12#	11/2004 - 10/2006	1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-22120	GRX12#	11/2004 - 10/2006	1
Common parts
90179-06129
90467-06011B0
90467-07198C0
90467-08011
90541-15015
91631-B0610
Linked diagrams
5701

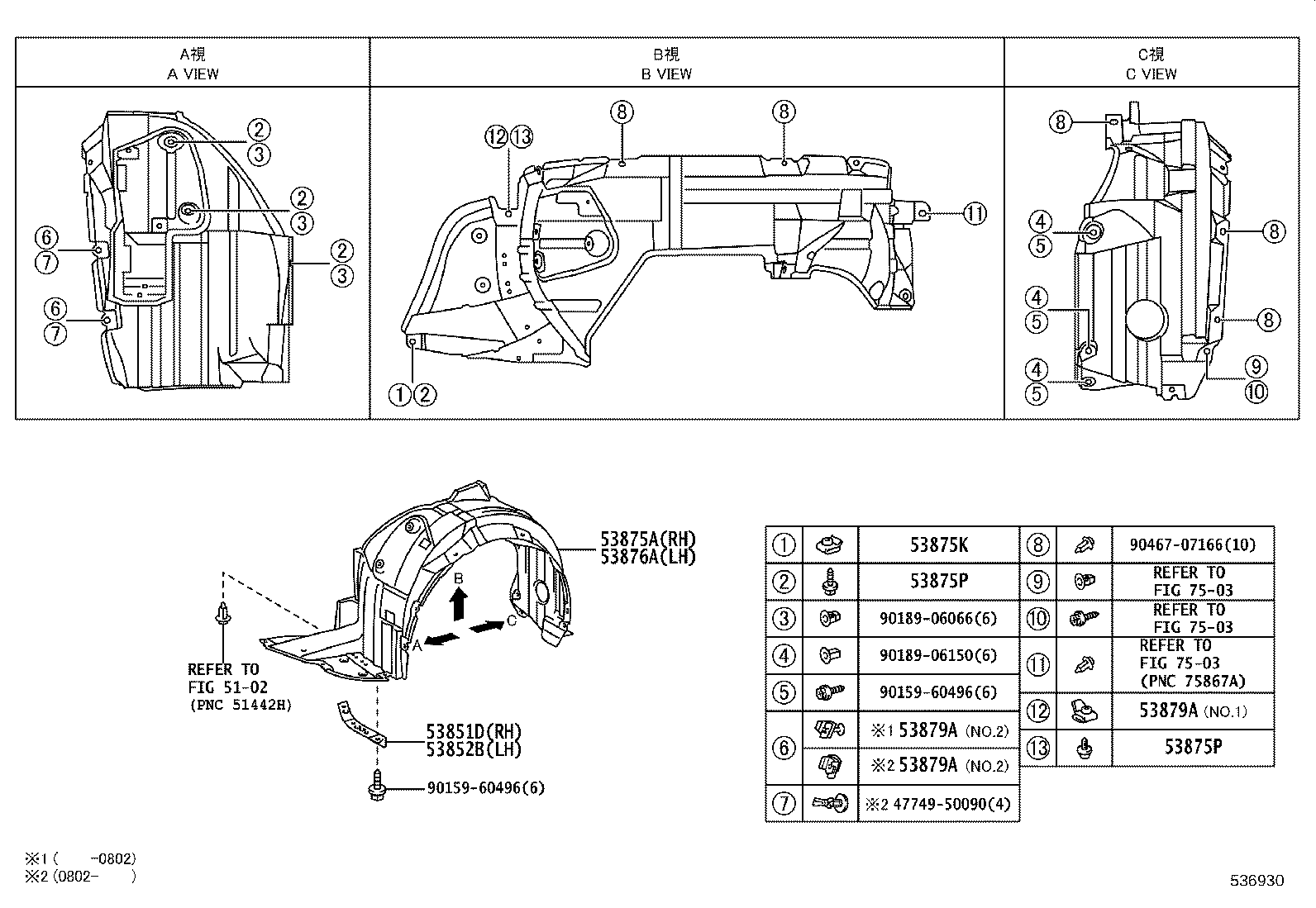

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

Part #	Description	Period	Qty
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-30050	GRX12#	11/2004 - 10/2006	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-30050	GRX12#	11/2004 - 10/2006	1
53875A - LINER, FRONT FENDER, RH
53805-22040	GRX12#	11/2004 - 10/2006	1
53875K - GROMMET, SCREW
90179-05025	GRX12# 材料着色	11/2004 - 10/2006	2
90179-05060	GRX12# ﾌﾞﾗｯｸ	11/2004 - 10/2006	2
53875P - SCREW, NO.1
90159-60477	GRX12#	11/2004 - 10/2006	8
53875P - SCREW, NO.1
90159-60477	GRX12#	11/2004 - 10/2006	8
53876A - LINER, FRONT FENDER, LH
53806-22040	GRX12#	11/2004 - 10/2006	1
53879A - RETAINER, FRONT FENDER LINER
53879-28010	GRX12# NO.2	11/2004 - 10/2006	4
53879-17020	GRX12# NO.1	11/2004 - 10/2006	2
53879A - RETAINER, FRONT FENDER LINER
53879-28010	GRX12# NO.2	11/2004 - 10/2006	4
53879-17020	GRX12# NO.1	11/2004 - 10/2006	2
53879A - RETAINER, FRONT FENDER LINER
53879-28010	GRX12# NO.2	11/2004 - 10/2006	4
53879-17020	GRX12# NO.1	11/2004 - 10/2006	2
Common parts
47749-50090
90159-60496
90189-06066
90189-06150
90467-07166
Linked diagrams
5102
7503
