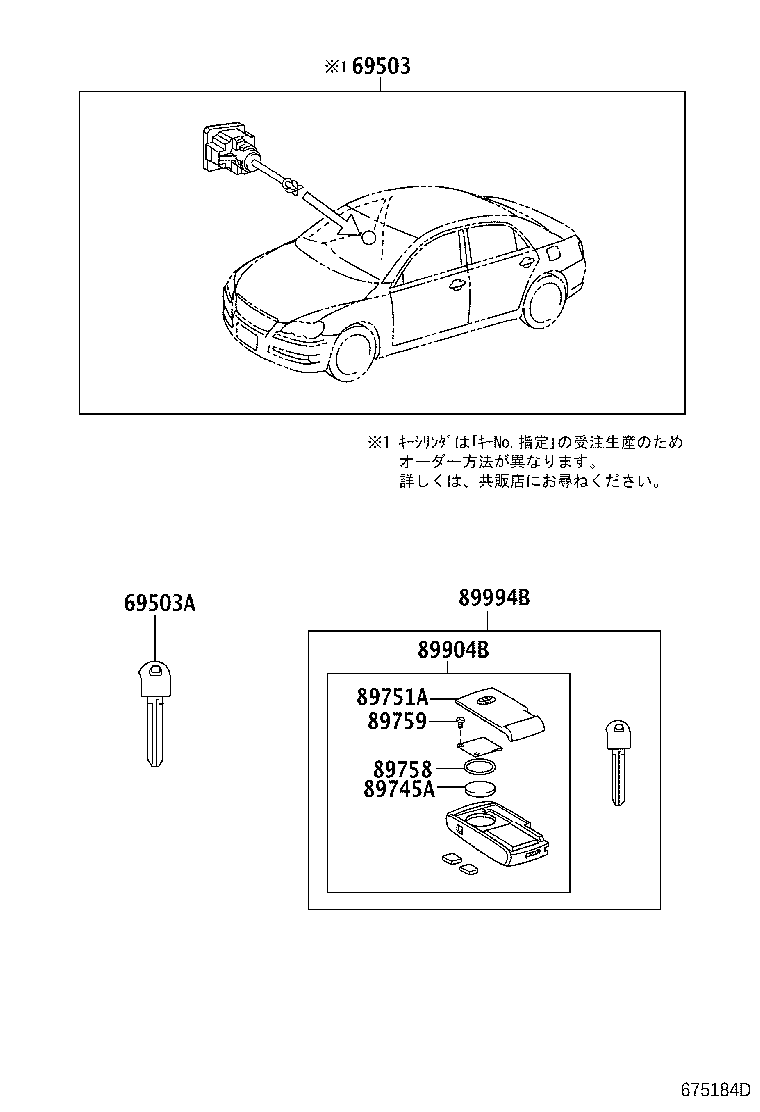

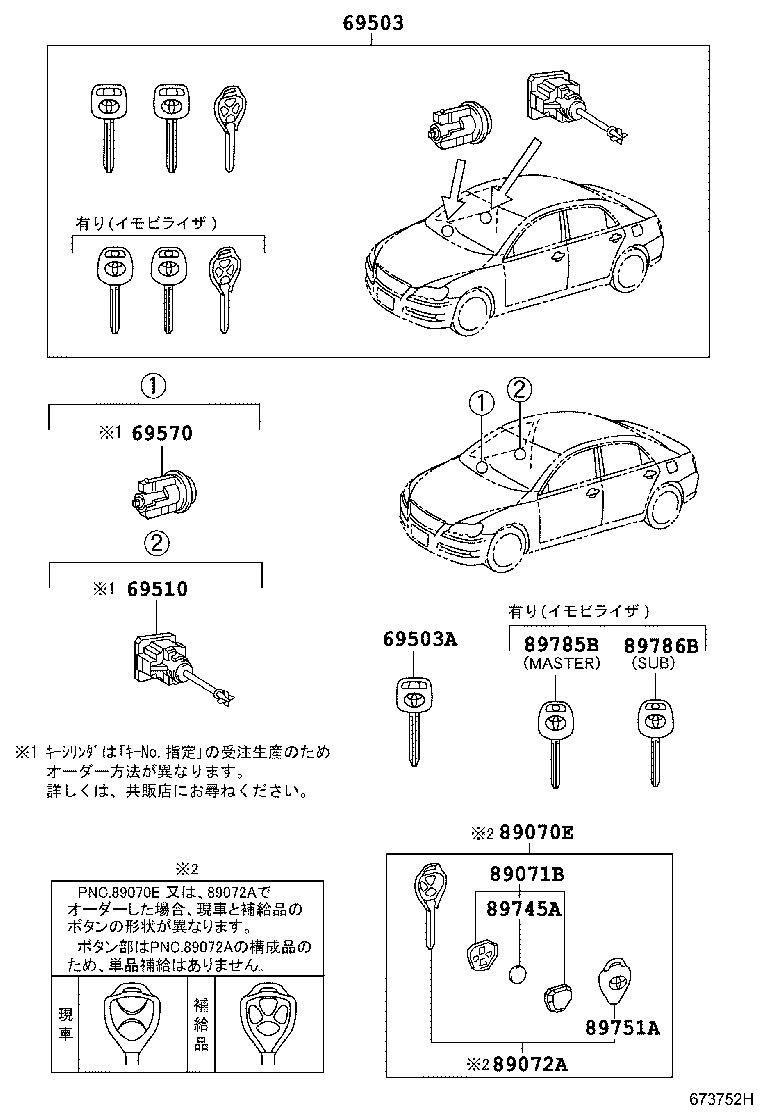

GRX120-AETZH (2004)
Toyota Mark X
(0411-0610)
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-22A30 |
GRX120,125 Lﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｱﾝｻｰﾊﾞｯｸﾌﾞｻﾞｰ) |
1 | ||
| 69510-20290 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 69005-22A40 |
GRX120,125 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
GRX120,125 ﾏｽﾀｰｷｰ,*68付き |
2 | ||
| 69515-47010 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-20290 |
GRX12#..250G,300G |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-22130 |
GRX12#..250G,300G |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-22240 |
GRX120,125 |
1 | ||
| 89070-22230 |
GRX120,125 Lﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｱﾝｻｰﾊﾞｯｸﾌﾞｻﾞｰ) |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-30080 |
GRX12#..250G,300G |
1 | ||
| 89072A - HOUSING SET, DOOR CONTROL TRANSMITTER | ||||
| 89072-33481 |
GRX120,125 Lﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｱﾝｻｰﾊﾞｯｸﾌﾞｻﾞｰ) |
1 | ||
| 89072-22080 |
GRX120,125 ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89072-22080 |
GRX120,125 |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89745-48030 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89745-48030 |
GRX12#..250G,300G |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-22050 |
GRX12#..250G,300G |
1 | ||
| 89751-30080 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
2 | ||
| 89751-22050 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60160 |
GRX120,125 Lﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｱﾝｻｰﾊﾞｯｸﾌﾞｻﾞｰ) |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60170 |
GRX120,125 ﾌﾞﾗﾝｸｷｰ,Lﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｱﾝｻｰﾊﾞｯｸﾌﾞｻﾞｰ) |
1 | ||
(0411-0610)
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ & ｽﾀｰﾄｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-22A30 |
GRX120,125 Lﾊﾟｯｹｰｼﾞ&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｱﾝｻｰﾊﾞｯｸﾌﾞｻﾞｰ) |
1 | ||
| 69510-20290 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 69005-22A40 |
GRX120,125 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
GRX120,125 ﾏｽﾀｰｷｰ,*68付き |
2 | ||
| 69515-47010 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-50020 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89745-48030 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89745-48030 |
GRX12#..250G,300G |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-22050 |
GRX12#..250G,300G |
1 | ||
| 89751-30080 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
2 | ||
| 89751-22050 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89758 - PACKING, DOOR CONTROL TRANSMITTER | ||||
| 89758-30010 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
2 | ||
| 89759 - SCREW, DOOR CONTROL TRANSMITTER | ||||
| 89759-40010 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
4 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-22020 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-22010 |
GRX12#..250G,300G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘｰ&ｽﾀｰﾄｼｽﾃﾑ) |
1 | ||
