SXV25W-HWPGK (1997)

Toyota Mark 2 Wg

Production Jun 1997 - Dec 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

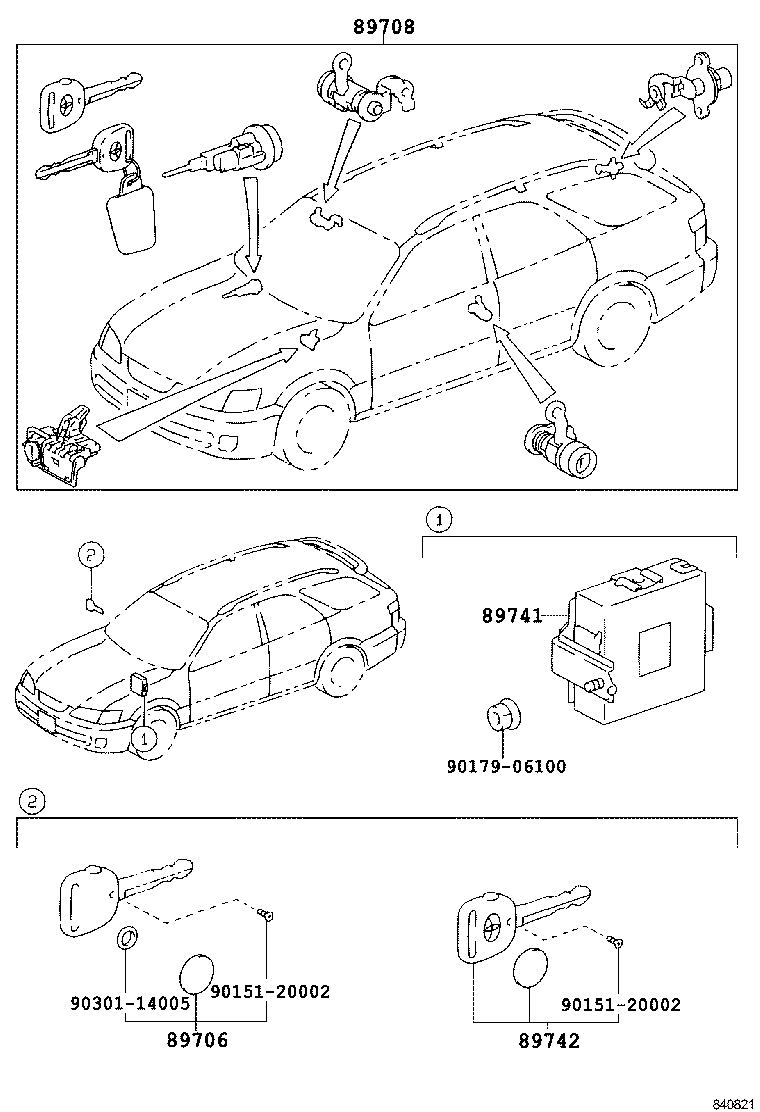

(9704-9808)

Click highlighted areas on diagram

diagram 89706 89708 89741 89742 9015120002 9015120002 9017906100 9030114005
Part # Description Qty Price
89706 - BATTERY SET, TRANSMITTER
89706-50010

MCV2#,SXV2#

 1
89708 - CYLINDER SET, WIRELESS DOOR LOCK
89708-33180

MCV2#,SXV2#

 1
89741 - RECEIVER, DOOR CONTROL
89741-33350

MCV2#,SXV2#

 1
89741-33171

MCV2#,SXV2#

 1
89741-33210

MCV2#,SXV2#

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-26050

MCV2#,SXV2#

 1
Common parts
90151-20002
90179-06100
90301-14005

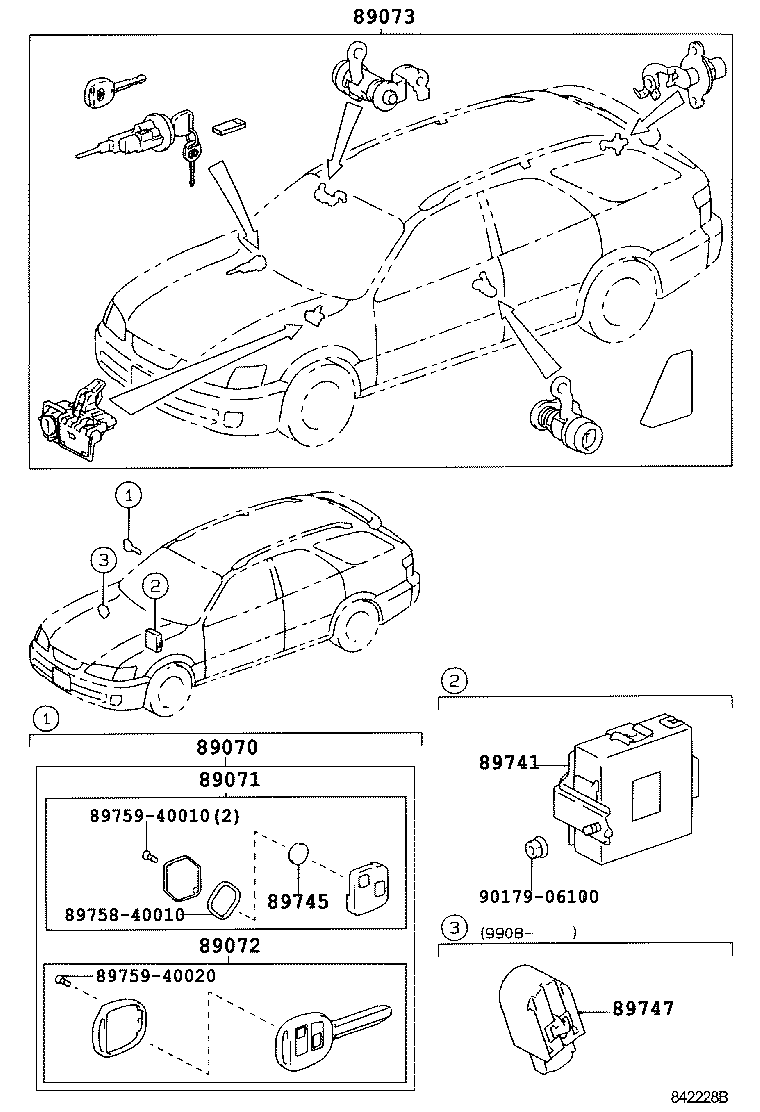

(9808- )

Click highlighted areas on diagram

diagram 89070 89071 89072 89073 89741 89745 89747 8975840010 8975940010 8975940020 9017906100
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-33060

MCV2#,SXV2#

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-33020

MCV2#,SXV2#

 1
89072 - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-33020

MCV2#,SXV2#

 1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-33340

MCV2#,SXV2#

 1
89073-33031

MCV2#,SXV2#

 1
89741 - RECEIVER, DOOR CONTROL
89741-33350

MCV2#,SXV2#

 1
89741-33171

MCV2#,SXV2#

 1
89741-33210

MCV2#,SXV2#

 1
89745 - BATTERY, TRANSMITTER
89745-40010

MCV2#,SXV2#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-51010

MCV2#,SXV2#

 1
Common parts
89758-40010
89759-40010
89759-40020
90179-06100
