SXV25W-HWPGK (1997)
Toyota Mark 2 Wg
(9706- )MCV25,SXV25
A541F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41107 - RETAINER SUB-ASSY, FRONT DIFFERENTIAL OIL SEAL | ||||
| 41107-33020 |
MCV25,SXV25 |
1 | ||
| 41107A - SEAL, OIL (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER) | ||||
| 90311-54005 |
MCV25,SXV25 |
1 | ||
| 41107B - BOLT (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER) | ||||
| 91611-60820 |
MCV25,SXV25 |
4 | ||
| 91511-60820 |
MCV25,SXV25 |
4 | ||
| 41109 - CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41109-33020 |
MCV21,25,SXV25 |
1 | ||
| 41109-33020 |
MCV2#,SXV25 |
1 | ||
| 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90310-35007 |
MCV2#,SXV25 |
1 | ||
| 90310-35007 |
MCV21,25,SXV25 |
1 | ||
| 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) | ||||
| 90521-83002 |
MCV2#,SXV25 NO.1 |
1 | ||
| 90521-83002 |
MCV21,25,SXV25 NO.1 |
1 | ||
| 90521-79008 |
MCV21,25,SXV25 NO.2 |
1 | ||
| 90521-79008 |
MCV2#,SXV25 NO.2 |
1 | ||
| 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) | ||||
| 90521-83002 |
MCV2#,SXV25 NO.1 |
1 | ||
| 90521-83002 |
MCV21,25,SXV25 NO.1 |
1 | ||
| 90521-79008 |
MCV21,25,SXV25 NO.2 |
1 | ||
| 90521-79008 |
MCV2#,SXV25 NO.2 |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41101-33050 |
MCV21,25 |
1 | ||
| 41101-33040 |
SXV25 |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 91611-60825 |
SXV2# *8−1.25PX25−25 |
6 | ||
| 90105-08050 |
MCV21,25,SXV25 *8−1.25PX28−28 |
6 | ||
| 90105-08050 |
MCV2#,SXV25 *8−1.25PX28−28 |
6 | ||
| 90105-08062 |
MCV2#,SXV25 *8−1.25PX29−24 |
6 | ||
| 90105-08062 |
MCV21,25,SXV25 *8−1.25PX29−24 |
6 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18021 |
MCV2#,SXV2# |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
MCV2#,SXV2# |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-33080 |
MCV25,SXV25 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-36003 |
MCV2#,SXV25 |
1 | ||
| 90366-36003 |
MCV21,25,SXV25 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40074 |
MCV21,25,SXV25 |
1 | ||
| 90366-40074 |
MCV2#,SXV25 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-33010 |
MCV2#,SXV25 |
1 | ||
| 41214-33010 |
MCV21,25,SXV25 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-33080 |
MCV25,SXV25 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12154 |
MCV2#,SXV25 |
12 | ||
| 90105-12154 |
MCV21,25,SXV25 |
12 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-24006 |
MCV2#,SXV25 |
1 | ||
| 90179-24006 |
MCV21,25,SXV25 |
1 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-33010 |
MCV21,25,SXV25 |
1 | ||
| 41231-33010 |
MCV2#,SXV25 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-33040 |
SXV25 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-76001 |
MCV2#,SXV25 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-76006 |
MCV2#,SXV25 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-76002 |
MCV2#,SXV25 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-76003 |
MCV2#,SXV25 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-76005 |
MCV2#,SXV25 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-76010 |
MCV2#,SXV25 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-76011 |
MCV2#,SXV25 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-76007 |
MCV2#,SXV25 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-76008 |
MCV2#,SXV25 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-76014 |
MCV2#,SXV25 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-49001 |
SXV2# 厚さ=1.90,ﾏｰｸ 01 |
1 | ||
| 90564-76012 |
MCV2#,SXV25 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-76009 |
MCV2#,SXV25 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-49005 |
SXV2# 厚さ=2.10,ﾏｰｸ 05 |
1 | ||
| 90564-76015 |
MCV2#,SXV25 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-76018 |
MCV2#,SXV25 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 90564-49010 |
SXV2# 厚さ=2.35,ﾏｰｸ 10 |
1 | ||
| 90564-49002 |
SXV2# 厚さ=1.95,ﾏｰｸ 02 |
1 | ||
| 90564-49003 |
SXV2# 厚さ=2.00,ﾏｰｸ 03 |
1 | ||
| 90564-49007 |
SXV2# 厚さ=2.20,ﾏｰｸ 07 |
1 | ||
| 90564-76004 |
MCV2#,SXV25 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-76016 |
MCV2#,SXV25 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-49008 |
SXV2# 厚さ=2.25,ﾏｰｸ 08 |
1 | ||
| 90564-49013 |
SXV2# 厚さ=2.50,ﾏｰｸ 13 |
1 | ||
| 90564-49011 |
SXV2# 厚さ=2.40,ﾏｰｸ 11 |
1 | ||
| 90564-49006 |
SXV2# 厚さ=2.15,ﾏｰｸ 06 |
1 | ||
| 90564-49014 |
SXV2# 厚さ=2.55,ﾏｰｸ 14 |
1 | ||
| 90564-49015 |
SXV2# 厚さ=2.60,ﾏｰｸ 15 |
1 | ||
| 90564-76013 |
MCV2#,SXV25 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-76017 |
MCV2#,SXV25 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-49019 |
SXV2# 厚さ=2.80,ﾏｰｸ 19 |
1 | ||
| 90564-49016 |
SXV2# 厚さ=2.65,ﾏｰｸ 16 |
1 | ||
| 90564-49009 |
SXV2# 厚さ=2.30,ﾏｰｸ 09 |
1 | ||
| 90564-76001 |
MCV21,25,SXV25 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-76009 |
MCV21,25,SXV25 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-49004 |
SXV2# 厚さ=2.05,ﾏｰｸ 04 |
1 | ||
| 90564-49012 |
SXV2# 厚さ=2.45,ﾏｰｸ 12 |
1 | ||
| 90564-76006 |
MCV21,25,SXV25 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-76010 |
MCV21,25,SXV25 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-76004 |
MCV21,25,SXV25 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-49017 |
SXV2# 厚さ=2.70,ﾏｰｸ 17 |
1 | ||
| 90564-76008 |
MCV21,25,SXV25 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-49018 |
SXV2# 厚さ=2.75,ﾏｰｸ 18 |
1 | ||
| 90564-76014 |
MCV21,25,SXV25 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-76012 |
MCV21,25,SXV25 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-76005 |
MCV21,25,SXV25 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-76018 |
MCV21,25,SXV25 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 90564-76007 |
MCV21,25,SXV25 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-76011 |
MCV21,25,SXV25 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-76017 |
MCV21,25,SXV25 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-76013 |
MCV21,25,SXV25 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-76002 |
MCV21,25,SXV25 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-76016 |
MCV21,25,SXV25 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-76015 |
MCV21,25,SXV25 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-76003 |
MCV21,25,SXV25 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57026 |
MCV2#,SXV25 |
1 | ||
| 90366-57026 |
MCV21,25,SXV25 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-44001 |
SXV2# |
1 | ||
| 90366-50030 |
MCV21,25 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
SXV2# |
2 | ||
| 41331-32010 |
SXV25 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
SXV2# |
2 | ||
| 41331-32010 |
SXV25 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
SXV2# |
2 | ||
| 41341-24010 |
MCV21,25 |
2 | ||
| 41341-30011 |
SXV25 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
SXV2# |
2 | ||
| 41341-24010 |
MCV21,25 |
2 | ||
| 41341-30011 |
SXV25 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
MCV2#,SXV2# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33030 |
SXV25 |
1 | ||
| 41342-33010 |
MCV21,25 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
SXV2# |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
SXV2# |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
SXV2# 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22140 |
SXV2# 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22040 |
SXV2# 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22020 |
SXV2# 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22160 |
SXV2# 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-17010 |
SXV2# 厚さ=0.95 |
2 | ||
| 41361-22030 |
SXV2# 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-17050 |
SXV2# 厚さ=1.15 |
2 | ||
| 41361-17040 |
SXV2# 厚さ=1.10 |
2 | ||
| 41361-17020 |
SXV2# 厚さ=1.00 |
2 | ||
| 41361-17030 |
SXV2# 厚さ=1.05 |
2 | ||
| 41361-17060 |
SXV2# 厚さ=1.20 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22150 |
SXV2# 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22140 |
SXV2# 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22040 |
SXV2# 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22020 |
SXV2# 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22160 |
SXV2# 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| 41361-17010 |
SXV2# 厚さ=0.95 |
2 | ||
| 41361-22030 |
SXV2# 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-17050 |
SXV2# 厚さ=1.15 |
2 | ||
| 41361-17040 |
SXV2# 厚さ=1.10 |
2 | ||
| 41361-17020 |
SXV2# 厚さ=1.00 |
2 | ||
| 41361-17030 |
SXV2# 厚さ=1.05 |
2 | ||
| 41361-17060 |
SXV2# 厚さ=1.20 |
2 | ||

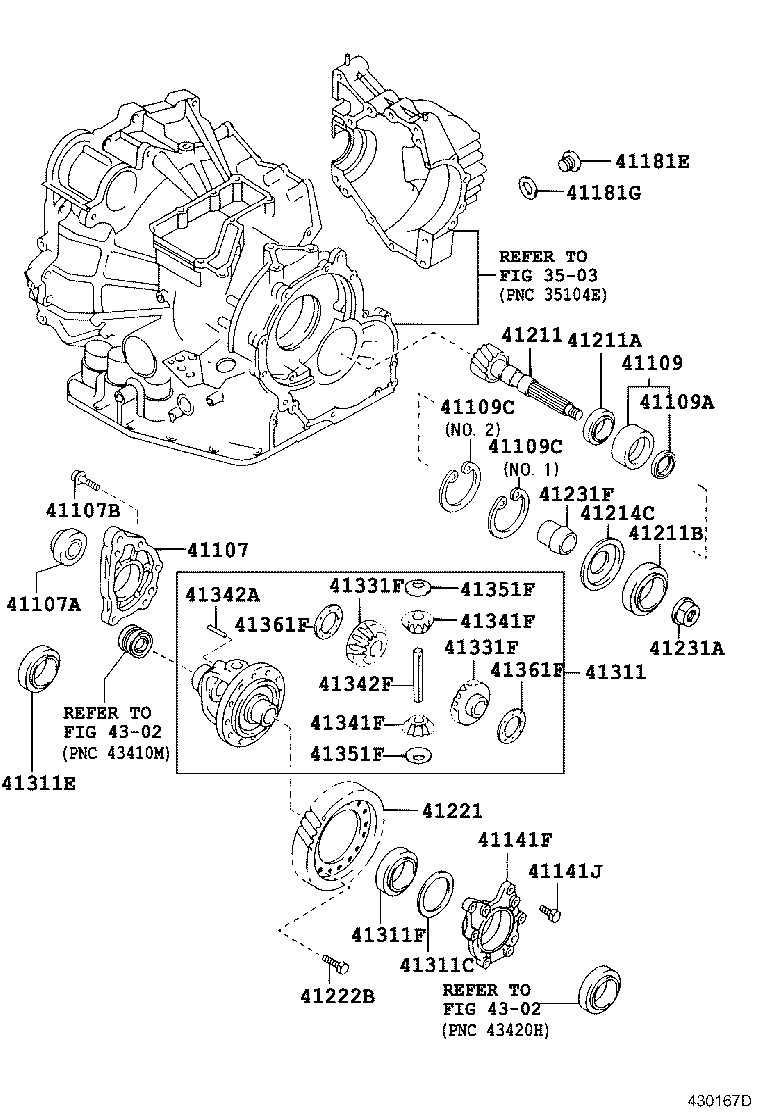

| Linked diagrams | ||||
| 3503 | ||||
| 4302 | ||||
