SXV20W-HWPGK (1997)

Toyota Mark 2 Wg

Production Apr 1997 - Dec 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

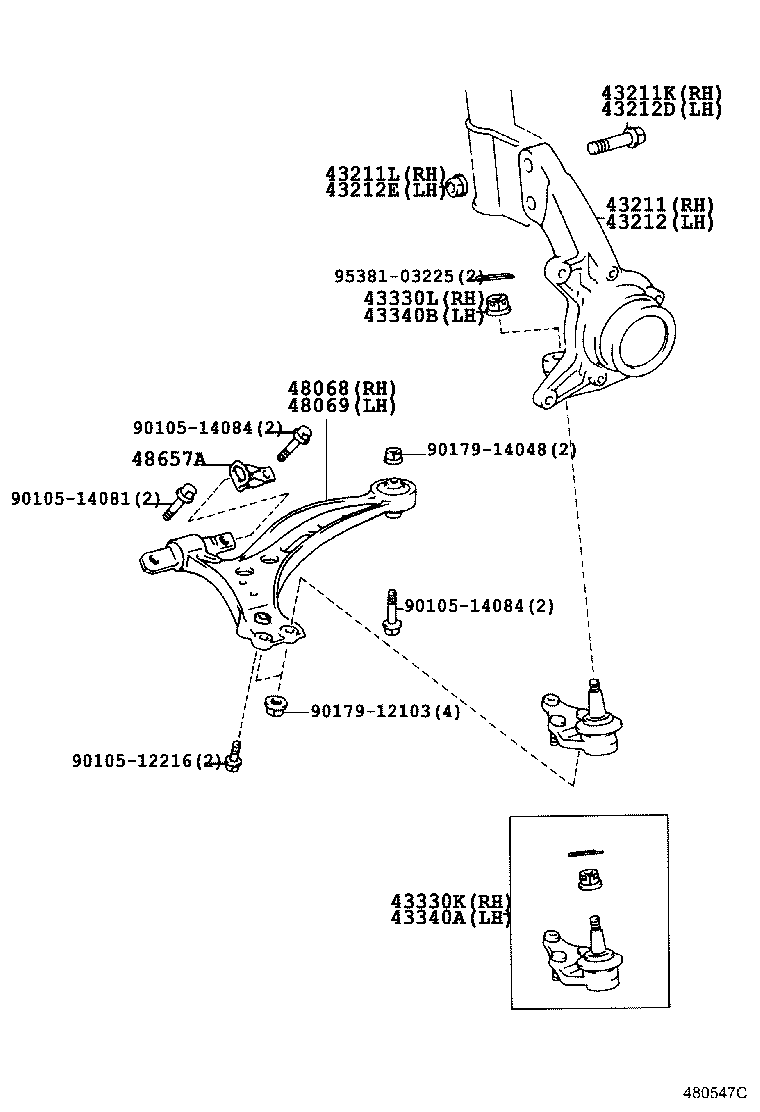

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43340A 43340B 48068 48069 48657A 9010512216 9010514081 9010514084 9010514084 9017912103 9017914048 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-33060

MCV20,21,SXV20

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17003

MCV2#,SXV2#

外径=15.9

 1
90105-17001

MCV2#,SXV2#

外径=17

 2
90105-17009

MCV2#,SXV2#

外径=15.9

 1
90105-17011

MCV2#,SXV2#

外径=14

 1
90105-17010

MCV2#,SXV2#

外径=15

 1
90105-17008

MCV2#,SXV2#

外径=17

 2
90105-17004

MCV2#,SXV2#

外径=15

 1
90105-17005

MCV2#,SXV2#

外径=14

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001

MCV2#,SXV2#

 2
90179-17001

MCV2#,SXV2#

 2
43212 - KNUCKLE, STEERING, LH
43212-33060

MCV20,21,SXV20

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17004

MCV2#,SXV2#

外径=15

 1
90105-17003

MCV2#,SXV2#

外径=15.9

 1
90105-17001

MCV2#,SXV2#

外径=17

 2
90105-17005

MCV2#,SXV2#

外径=14

 1
90105-17009

MCV2#,SXV2#

外径=15.9

 1
90105-17010

MCV2#,SXV2#

外径=15

 1
90105-17011

MCV2#,SXV2#

外径=14

 1
90105-17008

MCV2#,SXV2#

外径=17

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-17001

MCV2#,SXV2#

 2
90178-17001

MCV2#,SXV2#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-39435

MCV2#,SXV2#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

MCV2#,SXV2#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-39435

MCV2#,SXV2#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

MCV2#,SXV2#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-33030

MCV2#,SXV2#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-33030

MCV2#,SXV2#

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-33020

MCV2#,SXV2#

 2
Common parts
90105-12216
90105-14081
90105-14084
90179-12103
90179-14048
95381-03225
