MCV25W-HWPGK (1997)
Toyota Mark 2 Wg
(9706- )MCV25,SXV25
A541F

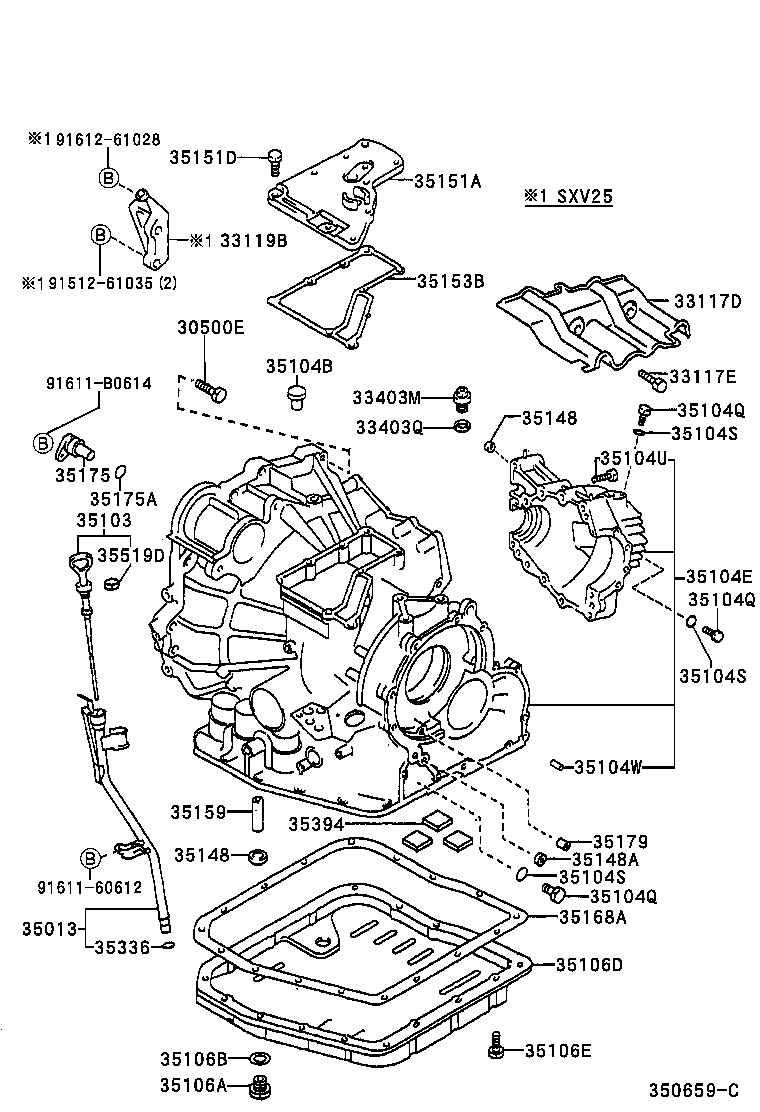

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90105-10425 |
MCV25,SXV25 *10−1.25PX41−28 |
1 | ||
| 90119-12168 |
MCV2# *12−1.25PX55−30 |
4 | ||
| 91619-61265 |
MCV2# *12−1.25PX65−30 |
1 | ||
| 90119-12168 |
MCV21,25 *12−1.25PX55−30 |
4 | ||
| 92412-H1055 |
MCV2# *10−1.25PX55−30 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-32040 |
MCV21,25,SXV25 |
1 | ||
| 33117-32040 |
MCV2#,SXV25 |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
MCV2#,SXV2# |
2 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 90341-18002 |
MCV25,SXV25 |
1 | ||
| 33403Q - GASKET (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 90430-18008 |
MCV25,SXV25 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-33090 |
MCV2#,SXV25 |
1 | ||
| 35013-33090 |
MCV21,25,SXV25 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-33180 |
MCV25,SXV25 |
1 | ||
| 35103-33190 |
MCV25 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03001 |
MCV2#,SXV25 |
1 | ||
| 90930-03001 |
MCV21,25,SXV25 |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-33904 |
MCV25,SXV25 |
1 | ||
| 35104-33902 |
MCV25,SXV25 |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCV2#,SXV25 |
3 | ||
| 90341-08001 |
MCV21,25,SXV25 |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCV2#,SXV25 |
3 | ||
| 90341-08001 |
MCV21,25,SXV25 |
3 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCV2#,SXV25 |
3 | ||
| 90341-08001 |
MCV21,25,SXV25 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
MCV21,25,SXV25 |
3 | ||
| 90301-06196 |
MCV2#,SXV25 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
MCV21,25,SXV25 |
3 | ||
| 90301-06196 |
MCV2#,SXV25 |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
MCV21,25,SXV25 |
3 | ||
| 90301-06196 |
MCV2#,SXV25 |
3 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-10426 |
MCV25,SXV25 *10−1.25PX86−30 |
1 | ||
| 90105-10222 |
MCV25,SXV25 *10−1.25PX65−30 |
8 | ||
| 90105-10223 |
MCV21,25,SXV25 *10−1.25PX75−30 |
2 | ||
| 90105-10223 |
MCV2#,SXV25 *10−1.25PX75−30 |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
MCV2#,SXV25 |
2 | ||
| 90250-10232 |
MCV21,25,SXV25 |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
MCV2#,SXV2# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
MCV2#,SXV2# |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-33020 |
MCV21,25,SXV25 |
1 | ||
| 35106-33020 |
MCV2#,SXV25 |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
MCV21,25,SXV25 |
17 | ||
| 90119-06173 |
MCV2#,SXV25 |
17 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
MCV21,25,SXV2# |
2 | ||
| 35148-16010 |
MCV2#,SXV2# |
2 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
MCV21,25,SXV2# |
2 | ||
| 35148-16010 |
MCV2#,SXV2# |
2 | ||
| 35148A - GASKET, GOVERNOR APPLY, NO.2 | ||||
| 35148-16010 |
MCV21,25,SXV25 |
1 | ||
| 35148-16010 |
MCV2#,SXV25 |
1 | ||
| 35151A - COVER, TRANSAXLE CASE, UPPER | ||||
| 35151-33022 |
MCV2#,SXV25 |
1 | ||
| 35151-33020 |
MCV2# |
1 | ||
| 35151-33021 |
MCV2#,SXV25 |
1 | ||
| 35151-33022 |
MCV21,25,SXV25 |
1 | ||
| 35151D - BOLT (FOR TRANSAXLE CASE UPPER COVER) | ||||
| 90109-08235 |
MCV21,25,SXV25 *10−1.25PX30−22 |
1 | ||
| 90109-08235 |
MCV2#,SXV25 *10−1.25PX30−22 |
1 | ||
| 90105-06113 |
MCV21,25,SXV25 *6−1.00PX20−18 |
8 | ||
| 90105-06113 |
MCV2#,SXV25 *6−1.00PX20−18 |
8 | ||
| 35153B - GASKET, TRANSAXLE CASE UPPER COVER | ||||
| 35153-33020 |
MCV2#,SXV25 |
1 | ||
| 35153-33020 |
MCV21,25,SXV25 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
MCV2#,SXV2# |
1 | ||
| 35159-32011 |
MCV21,25,SXV2# |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-33030 |
MCV2#,SXV25 |
1 | ||
| 35168-33030 |
MCV21,25,SXV25 |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-33010 |
MCV2#,SXV25 |
1 | ||
| 35175-33010 |
MCV21,25,SXV25 |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-16006 |
MCV2#,SXV25 |
1 | ||
| 90301-16006 |
MCV21,25,SXV25 |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
MCV21,25,SXV2# |
1 | ||
| 35179-32010 |
MCV2#,SXV2# |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
MCV2#,SXV2# |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
MCV2#,SXV25 |
3 | ||
| 35394-30011 |
MCV21,25,SXV25 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-16040 |
MCV25,SXV25 |
1 | ||
| 35519-21020 |
MCV25 |
1 | ||
| Common parts | ||||
| 91512-61035 | ||||
| 91611-60612 | ||||
| 91611-B0614 | ||||
| 91612-61028 | ||||
