MCV21W-HWPGK (1997)

Toyota Mark 2 Wg

Production Apr 1997 - Dec 2001
Engine 2MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

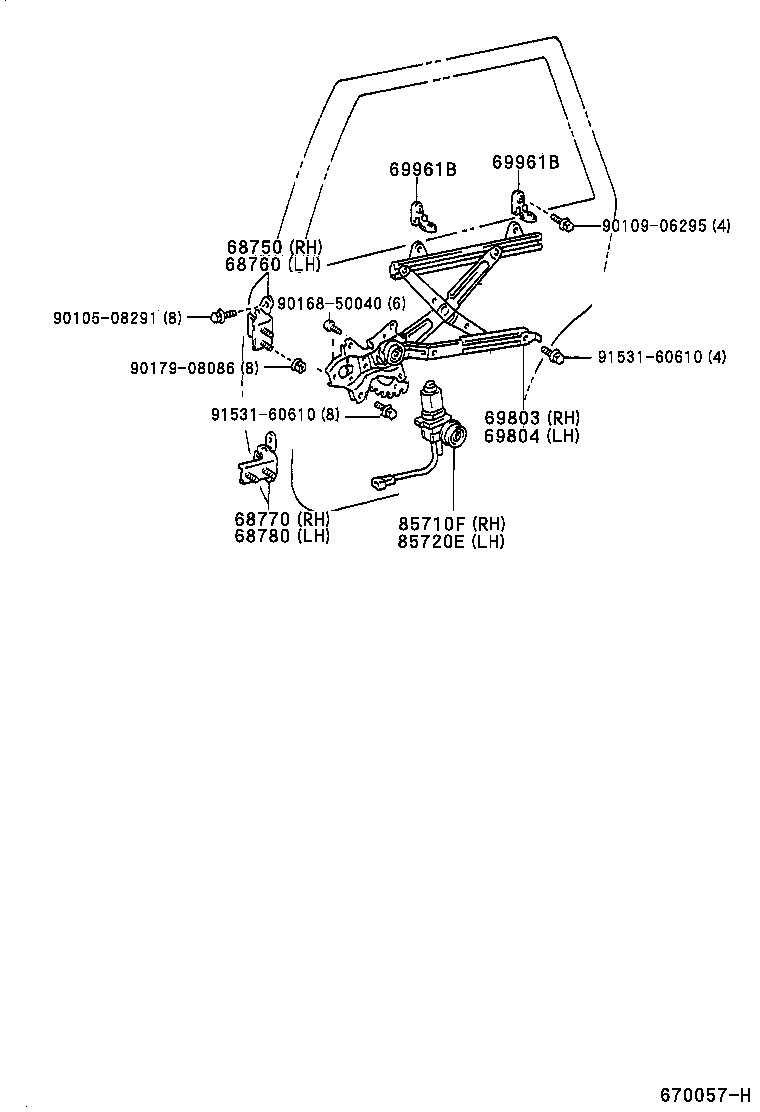

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69961B 69961B 85710F 85720E 9010508291 9010906295 9016850040 9017908086 9153160610 9153160610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-42010

MCV2#,SXV2#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-42010

MCV2#,SXV2#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-33010

MCV2#,SXV2#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-33010

MCV2#,SXV2#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-33010

MCV2#,SXV2#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-33010

MCV2#,SXV2#

 1
69961B - RETAINER, REAR DOOR GLASS
69961-33010

MCV2#,SXV2#

ﾌﾛﾝﾄ

 2
69963-33010

MCV2#,SXV2#

ﾘﾔ

 2
69961B - RETAINER, REAR DOOR GLASS
69961-33010

MCV2#,SXV2#

ﾌﾛﾝﾄ

 2
69963-33010

MCV2#,SXV2#

ﾘﾔ

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-10090

MCV2#,SXV2#

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-33030

MCV2#,SXV2#

 1
Common parts
90105-08291
90109-06295
90168-50040
90179-08086
91531-60610
