MCV21W-HWPGK (1997)
Toyota Mark 2 Wg
(9704-9908)1MZFE,2MZFE ; (9908- )2MZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29405 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11101-29408 |
2MZFE..MCV21,25 |
1 | ||
| 11101-29407 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11101-29406 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11101-29409 |
2MZFE..MCV21,25 |
1 | ||
| 11101-29407 |
2MZFE..MCV21,25 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02117 |
1MZFE,2MZFE..MCV2# |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11031 |
1MZFE,2MZFE..MCV2# |
16 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-29038 |
2MZFE..MCV21,25 |
1 | ||
| 11102-29035 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11102-29036 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11102-29037 |
2MZFE..MCV21,25 |
1 | ||
| 11102-29039 |
2MZFE..MCV21,25 |
1 | ||
| 11102-29037 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05013 |
2MZFE..MCV21,25 |
1 | ||
| 90919-05013 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-20040 |
2MZFE..MCV21,25 |
1 | ||
| 11115-20010 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11115-20010 |
2MZFE..MCV21,25 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-20010 |
2MZFE..MCV21,25 |
1 | ||
| 11116-20040 |
2MZFE..MCV21,25 |
1 | ||
| 11116-20010 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2MZFE..MCV21,25 |
4 | ||
| 96411-63000 |
1MZFE,2MZFE..MCV2# |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-63000 |
1MZFE,2MZFE..MCV2# |
4 | ||
| 96411-63000 |
2MZFE..MCV21,25 |
4 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-24013 |
1MZFE,2MZFE..MCV2# |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-24013 |
1MZFE,2MZFE..MCV2# |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24246 |
1MZFE,2MZFE..MCV2# |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-24246 |
1MZFE,2MZFE..MCV2# |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11123-20020 |
1MZFE,2MZFE..MCV2# O/S 0.05 |
6 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11122-20020 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11123-20020 |
1MZFE,2MZFE..MCV2# O/S 0.05 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-20020 |
1MZFE,2MZFE..MCV2# O/S 0.05 |
6 | ||
| 11126-20020 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11127-20020 |
1MZFE,2MZFE..MCV2# O/S 0.05 |
6 | ||
| 11126-20020 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-62030 |
1MZFE,2MZFE..MCV2# O/S 0.03 |
6 | ||
| 11131-62030 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-62030 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11132-62030 |
1MZFE,2MZFE..MCV2# O/S 0.03 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-62020 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11136-20040 |
1MZFE,2MZFE..MCV2# O/S 0.03 |
6 | ||
| 11136-62020 |
1MZFE,2MZFE..MCV2# O/S 0.03 |
6 | ||
| 11135-20040 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-20040 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11136-62020 |
1MZFE,2MZFE..MCV2# O/S 0.03 |
6 | ||
| 11136-20040 |
1MZFE,2MZFE..MCV2# O/S 0.03 |
6 | ||
| 11135-62020 |
1MZFE,2MZFE..MCV2# STD |
6 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38034 |
1MZFE,2MZFE..MCV2# |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
1MZFE,2MZFE..MCV2# |
20 | ||
| 90253-10004 |
1MZFE,2MZFE..MCV2# |
19 | ||
| 11155B - PIN, RING | ||||
| 90253-10004 |
1MZFE,2MZFE..MCV2# |
20 | ||
| 90253-10004 |
1MZFE,2MZFE..MCV2# |
19 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1MZFE,2MZFE..MCV2# |
20 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1MZFE,2MZFE..MCV2# |
20 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-20030 |
2MZFE..MCV21,25 |
1 | ||
| 11181-0A011 |
2MZFE..MCV21,25 (L) |
1 | ||
| 11181-20030 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11181-20030 |
2MZFE..MCV21,25 (J) |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-20010 |
1MZFE,2MZFE..MCV2# |
4 | ||
| 11183-20010 |
2MZFE..MCV21,25 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-20010 |
1MZFE,2MZFE..MCV2# |
4 | ||
| 11183-20010 |
2MZFE..MCV21,25 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-16010 |
1MZFE,2MZFE..MCV2# |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-16010 |
1MZFE,2MZFE..MCV2# |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-20010 |
2MZFE..MCV21,25 |
1 | ||
| 11201-20050 |
2MZFE..MCV21,25 |
1 | ||
| 11201-20010 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-20031 |
2MZFE..MCV21,25 |
1 | ||
| 11202-20030 |
2MZFE..MCV21,25 |
1 | ||
| 11202-20030 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-20060 |
2MZFE..MCV21,25 |
1 | ||
| 11209A - CLAMP, PIPE | ||||
| 17578-20010 |
2MZFE..MCV21,25 |
2 | ||
| 17578-20010 |
1MZFE,2MZFE..MCV2# |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-20020 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 11213-20020 |
2MZFE..MCV21,25 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-20010 |
2MZFE..MCV21,25 |
1 | ||
| 11214-20010 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-20030 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 12180-46010 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-46011 |
1MZFE,2MZFE..MCV2# |
1 | ||
| 12195-20020 |
1MZFE,2MZFE..MCV2# |
1 | ||
| Common parts | ||||
| 90080-11255 | ||||
| 90109-06284 | ||||
| 90110-08031 | ||||
| 90116-06127 | ||||
| 90176-06039 | ||||
| 90179-06080 | ||||
| 90901-19026 | ||||
| 90902-02001 | ||||
| 91511-G0614 | ||||
| 91631-60612 | ||||
| 92122-60612 | ||||
| 93560-13008 | ||||

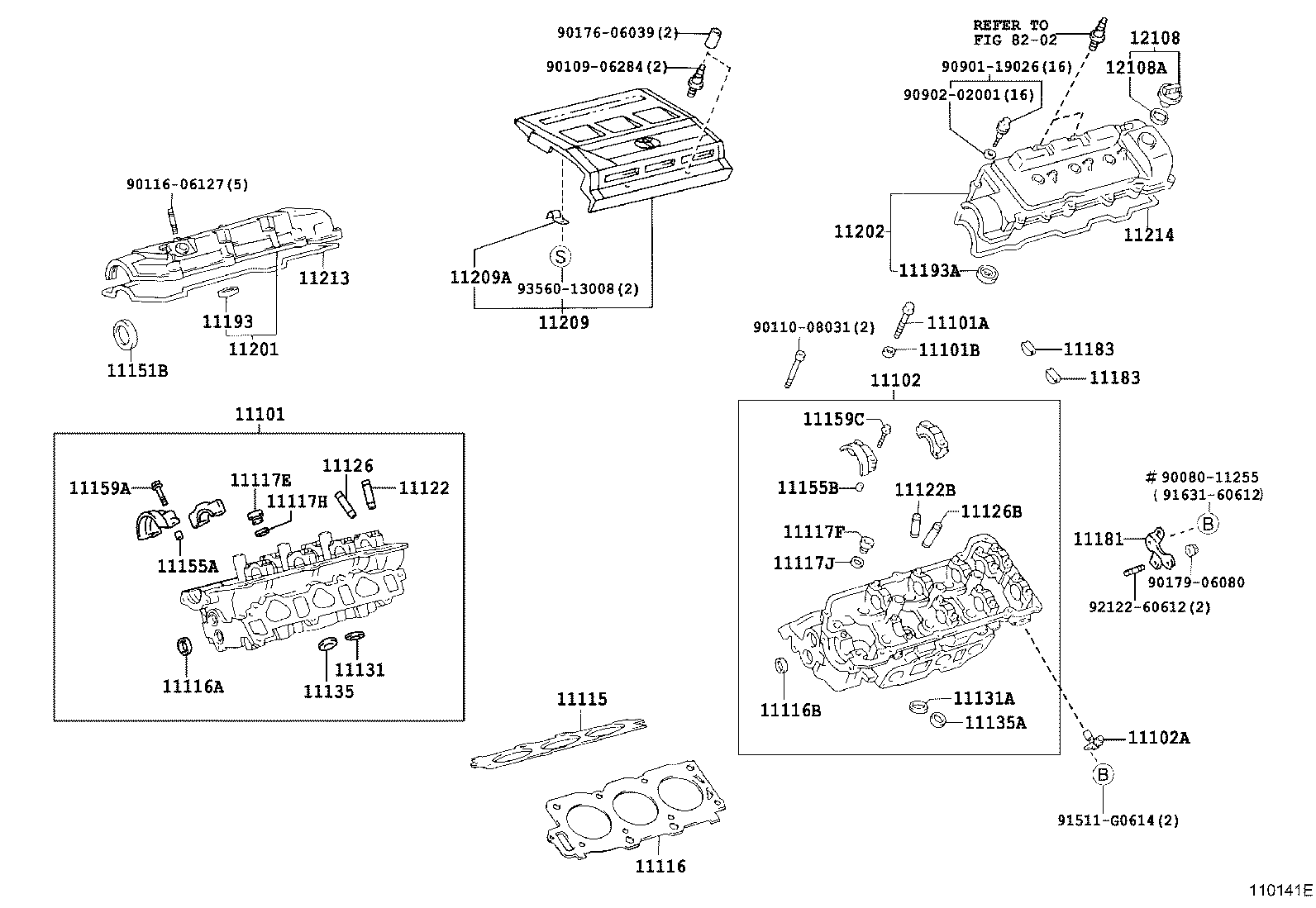

| Linked diagrams | ||||
| 8202 | ||||
