YX78V-XXHNE (1993)
Toyota Mark 2 V,Wg
Production
Feb 1993
-
Apr 1997
Engine
3YE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

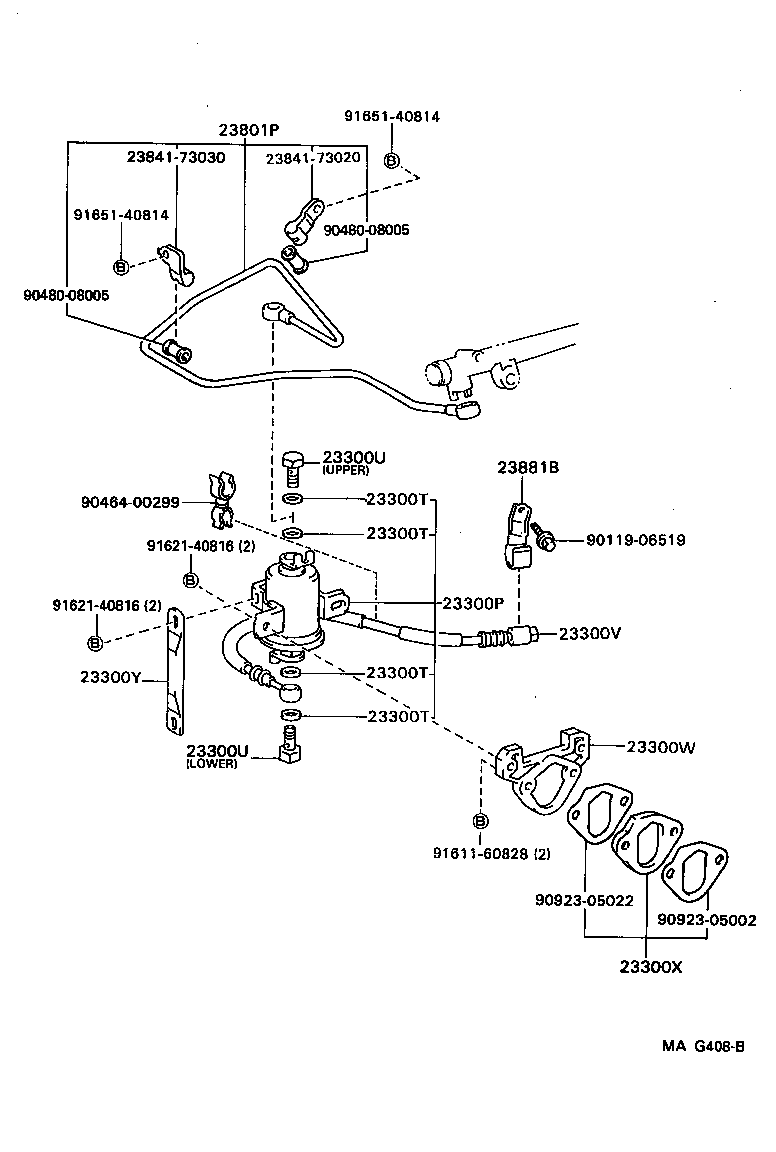

ILLUST NO. 2 OF 3(9302- )3YE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79055 |
3YE..YX78 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3YE..YX78 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3YE..YX78 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3YE..YX78 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
3YE..YX78 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3YE..YX78 LOWER |
1 | ||
| 90401-12029 |
3YE..YX78 UPPER |
1 | ||
| 96341-11200 |
3YE..YX78 LOWER |
1 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3YE..YX78 LOWER |
1 | ||
| 90401-12029 |
3YE..YX78 UPPER |
1 | ||
| 96341-11200 |
3YE..YX78 LOWER |
1 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01285 |
3YE..YX78 |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23264-73010 |
3YE..YX78 |
1 | ||
| 23300X - INSULATOR(FOR FUEL FILTER BRACKET) | ||||
| 90923-06013 |
3YE..YX78 |
1 | ||
| 23300Y - SUPPORT, FUEL FILTER | ||||
| 23921-73010 |
3YE..YX78 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-73021 |
3YE..YX78 |
1 | ||
| 23801-73020 |
3YE..YX78 |
1 | ||
| 23881B - BRACKET, FUEL HOSE | ||||
| 23881-73010 |
3YE..YX78 |
1 | ||
| Common parts | ||||
| 23841-73020 | ||||
| 23841-73030 | ||||
| 90119-06519 | ||||
| 90464-00299 | ||||
| 90480-08005 | ||||
| 90923-05002 | ||||
| 90923-05022 | ||||
| 91611-60828 | ||||
| 91621-40816 | ||||
| 91651-40814 | ||||

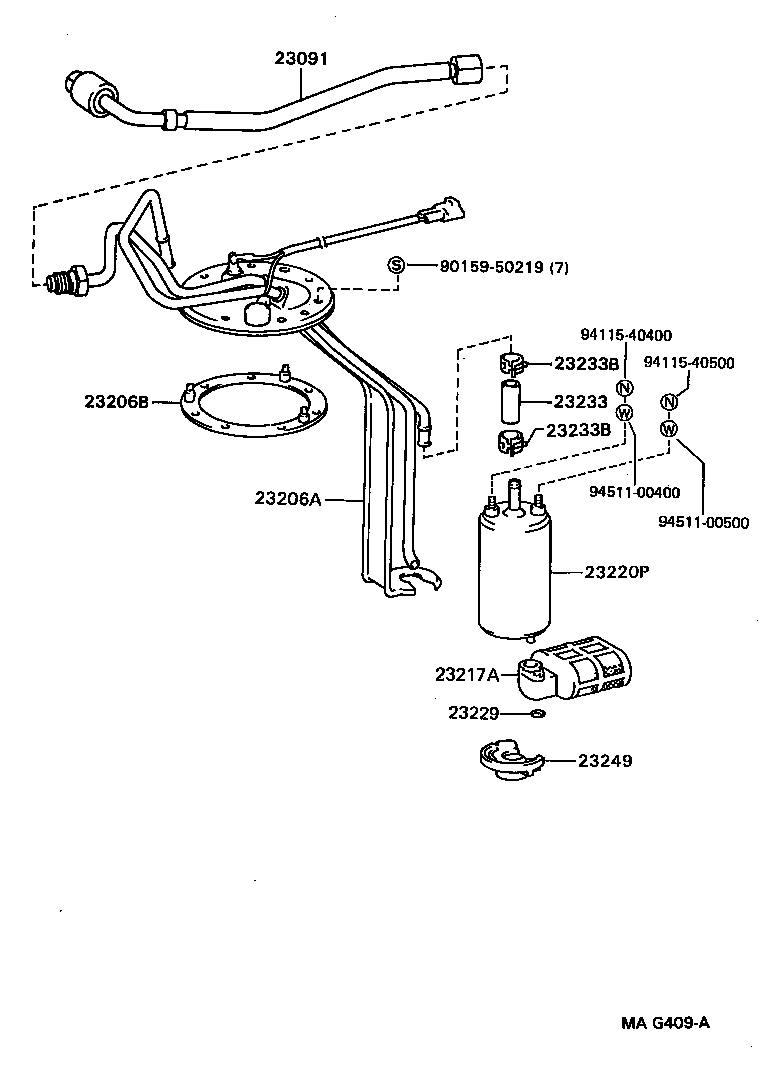

ILLUST NO. 3 OF 3(9302- )3YE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-70030 |
3YE..YX78 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-73090 |
3YE..YX78 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
3YE..YX78 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
3YE..YX78 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-43070 |
3YE..YX78 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3YE..YX78 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
3YE..YX78 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3YE..YX78 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
3YE..YX78 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
3YE..YX78 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

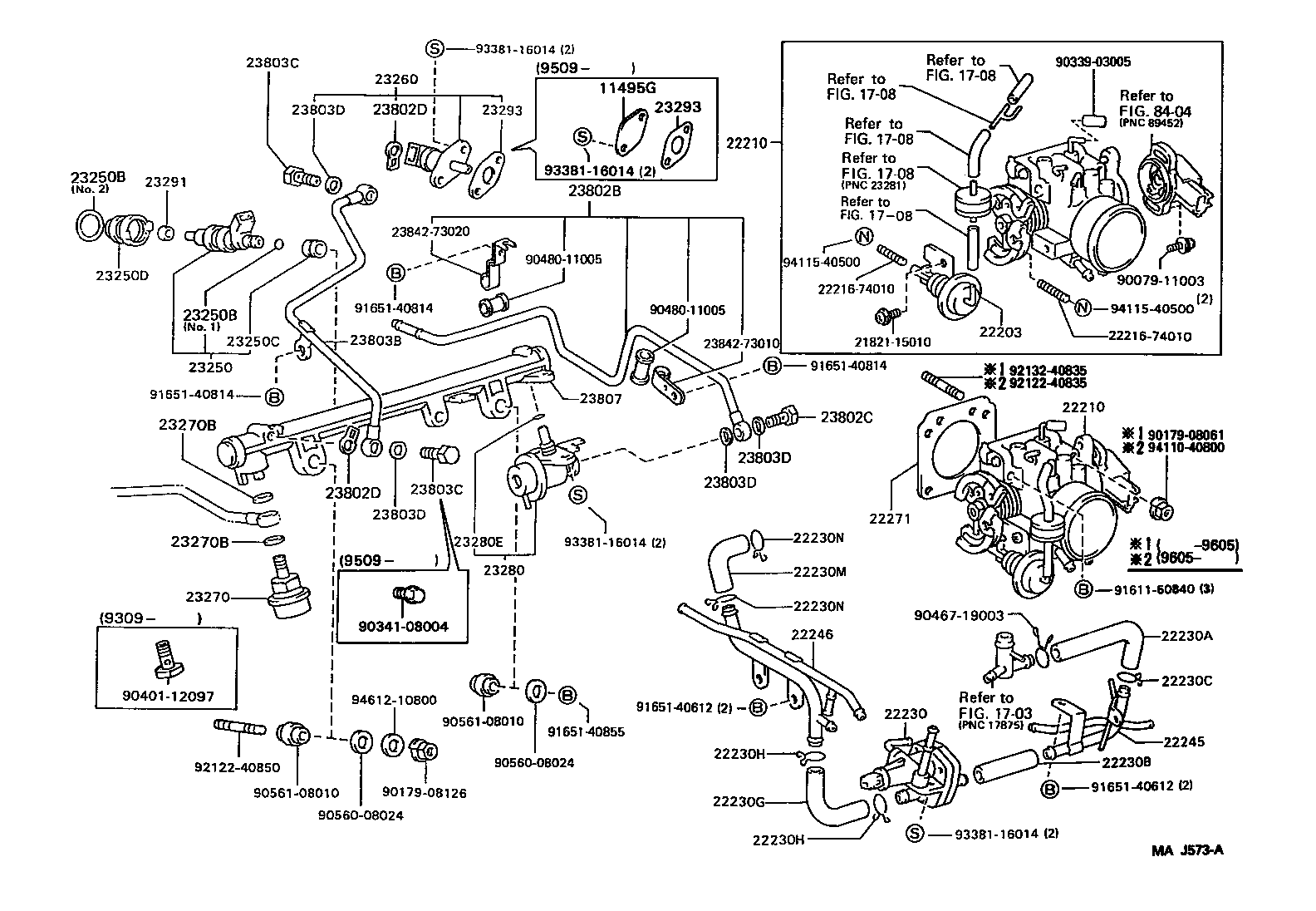

ILLUST NO. 1 OF 3(9302- )3YE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11495G - PLUG, PLATE(FOR INTAKE AIR SURGE TANK) | ||||
| 11495-76020 |
3YE..YX78 |
1 | ||
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22202-73011 |
3YE..YX78 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-73060 |
3YE..YX78 |
1 | ||
| 22210-73100 |
3YE..YX78 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-73060 |
3YE..YX78 |
1 | ||
| 22210-73100 |
3YE..YX78 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-73011 |
3YE..YX78 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-73010 |
3YE..YX78 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 90445-21008 |
3YE..YX78 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-19003 |
3YE..YX78 |
1 | ||
| 22230G - HOSE, AUXILIARY AIR VALVE, NO.3 | ||||
| 22236-73011 |
3YE..YX78 |
1 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-19003 |
3YE..YX78 |
2 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-19003 |
3YE..YX78 |
2 | ||
| 22230M - HOSE, AUXILIARY AIR VALVE, NO.4 | ||||
| 22237-73010 |
3YE..YX78 |
1 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-19003 |
3YE..YX78 |
2 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-19003 |
3YE..YX78 |
2 | ||
| 22245 - PIPE, AUXILIARY AIR, NO.2 | ||||
| 22245-73011 |
3YE..YX78 |
1 | ||
| 22246 - PIPE, AUXILIARY AIR, NO.3 | ||||
| 22246-73012 |
3YE..YX78 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-73011 |
3YE..YX78 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70020 |
3YE..YX78 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-23004 |
3YE..YX78 NO.2 |
4 | ||
| 90301-07001 |
3YE..YX78 NO.1 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-23004 |
3YE..YX78 NO.2 |
4 | ||
| 90301-07001 |
3YE..YX78 NO.1 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3YE..YX78 |
4 | ||
| 23250D - SPACER(FOR FUEL INJECTOR) | ||||
| 90561-10002 |
3YE..YX78 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79085 |
3YE..YX78 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-73010 |
3YE..YX78 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
3YE..YX78 |
2 | ||
| 23232-41081 |
3YE..YX78 DAMPER SIDE |
1 | ||
| 90430-12026 |
3YE..YX78 DELIVERY PIPE SIDE |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
3YE..YX78 |
2 | ||
| 23232-41081 |
3YE..YX78 DAMPER SIDE |
1 | ||
| 90430-12026 |
3YE..YX78 DELIVERY PIPE SIDE |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-73040 |
3YE..YX78 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
3YE..YX78 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
3YE..YX78 |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-73011 |
3YE..YX78 |
1 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-73011 |
3YE..YX78 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-73020 |
3YE..YX78 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08003 |
3YE..YX78 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08015 |
3YE..YX78 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08015 |
3YE..YX78 |
2 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-73011 |
3YE..YX78 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08014 |
3YE..YX78 |
3 | ||
| 90430-08014 |
3YE..YX78 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08014 |
3YE..YX78 |
3 | ||
| 90430-08014 |
3YE..YX78 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08014 |
3YE..YX78 |
3 | ||
| 90430-08014 |
3YE..YX78 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08014 |
3YE..YX78 |
3 | ||
| 90430-08014 |
3YE..YX78 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-73010 |
3YE..YX78 |
1 | ||
| Common parts | ||||
| 21821-15010 | ||||
| 22216-74010 | ||||
| 23842-73010 | ||||
| 23842-73020 | ||||
| 90079-11003 | ||||
| 90179-08061 | ||||
| 90179-08126 | ||||
| 90339-03005 | ||||
| 90341-08004 | ||||
| 90401-12097 | ||||
| 90467-19003 | ||||
| 90480-11005 | ||||
| 90560-08024 | ||||
| 90561-08010 | ||||
| 91611-60840 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-40855 | ||||
| 92122-40835 | ||||
| 92122-40850 | ||||
| 92132-40835 | ||||
| 93381-16014 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 1708 | ||||
| 8404 | ||||
