YX78V-XXHNE (1993)
Toyota Mark 2 V,Wg
Production
Feb 1993
-
Apr 1997
Engine
3YE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

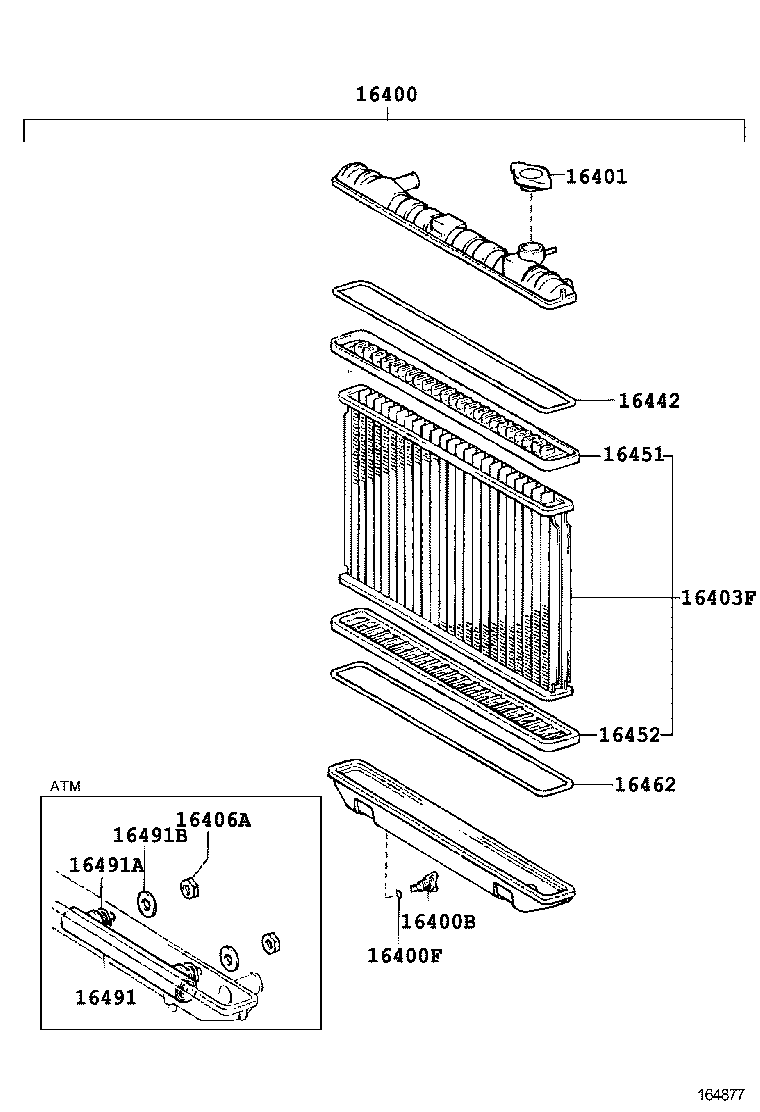

ILLUST NO. 2 OF 2(9302- )3YE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-73420 |
3YE..YX78..3FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2YJ,3YE..YX7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2YJ,3YE..YX7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3YE..YX78 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-73410 |
3YE..YX78 |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3YE..YX78..3FC |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-70410 |
3YE..YX78 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-70410 |
3YE..YX78 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74570 |
3YE..YX78 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-54790 |
3YE..YX78 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-73420 |
3YE..YX78..3FC |
1 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3YE..YX78..3FC |
2 | ||

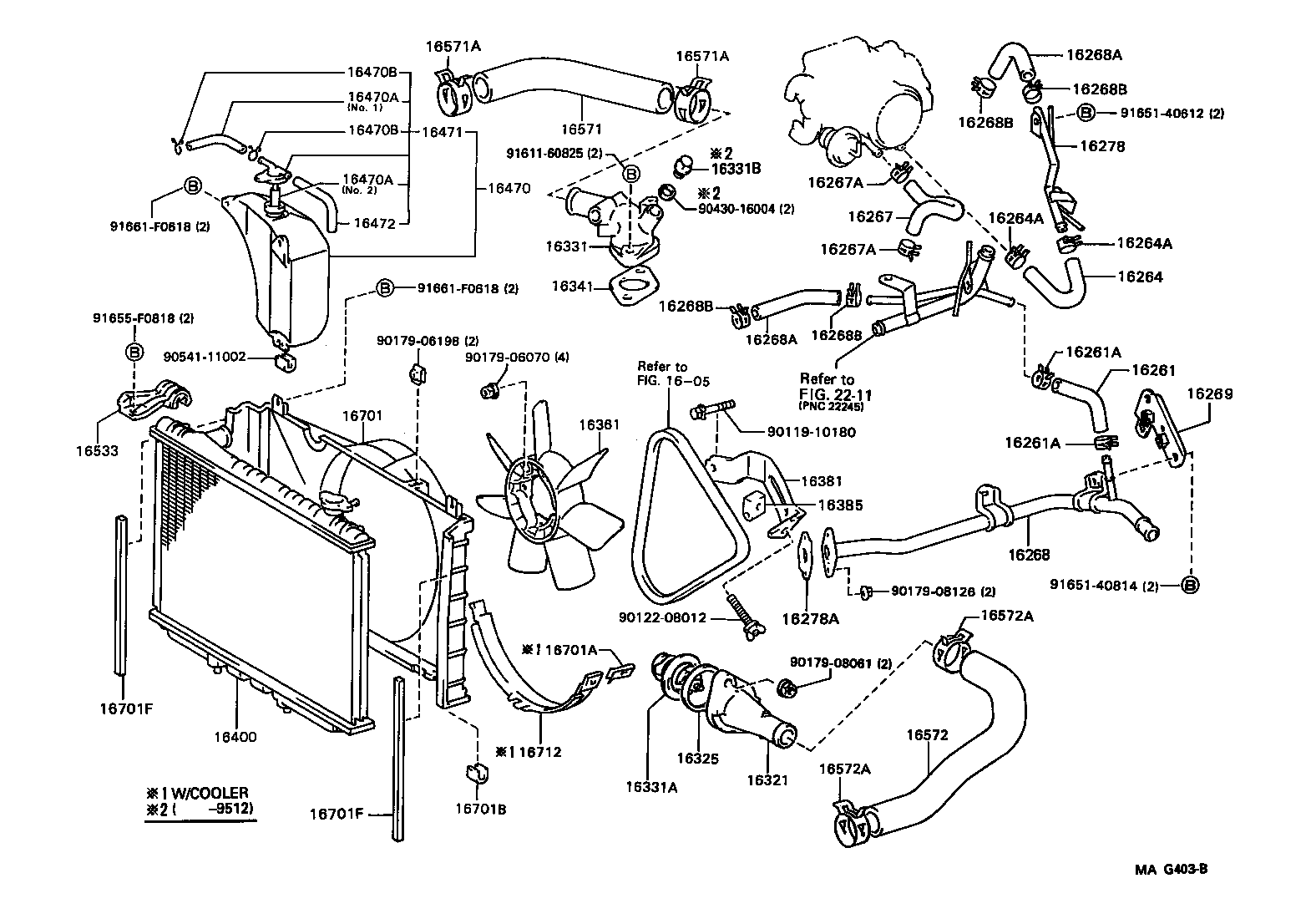

ILLUST NO. 1 OF 2(9302- )3YE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-73070 |
3YE..YX78 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-73021 |
3YE..YX78 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-73010 |
3YE..YX78 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
3YE..YX78 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-73160 |
3YE..YX78 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99556-10110 |
3YE..YX78 *H,L=110 |
2 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99556-10110 |
3YE..YX78 *H,L=110 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
3YE..YX78 |
4 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
3YE..YX78 |
4 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
3YE..YX78 |
4 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
3YE..YX78 |
4 | ||
| 16269 - SUPPORT, WATER BY-PASS PIPE | ||||
| 16269-73020 |
3YE..YX78 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-73011 |
3YE..YX78 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-73011 |
3YE..YX78 |
1 | ||
| 16331-73010 |
3YE..YX78 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-16008 |
3YE..YX78 |
2 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-73011 |
3YE..YX78 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-71010 |
3YE..YX78 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-73420 |
3YE..YX78..3FC |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2YJ,3YE..YX7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2YJ,3YE..YX7# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-73010 |
3YE..YX78 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-73110 |
3YE..YX78 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
3YE..YX78 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
3YE..YX78 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3YE..YX78 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
3YE..YX78 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-73110 |
3YE..YX78 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2YJ,3YE..YX7# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2YJ,3YE..YX7# |
2 | ||
| 16701F - SEAL(FOR FAN SHROUD) | ||||
| 16832-70010 |
3YE..YX78 |
2 | ||
| 16701F - SEAL(FOR FAN SHROUD) | ||||
| 16832-70010 |
3YE..YX78 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-73090 |
3YE..YX78 |
1 | ||
| Common parts | ||||
| 90119-10180 | ||||
| 90122-08012 | ||||
| 90179-06070 | ||||
| 90179-06198 | ||||
| 90179-08061 | ||||
| 90179-08126 | ||||
| 90430-16004 | ||||
| 90541-11002 | ||||
| 91611-60825 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91655-F0818 | ||||
| 91661-F0618 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 2211 | ||||
