YX76V-XXMNS (1988)
Toyota Mark 2 V,Wg
Production
Dec 1988
-
Feb 1993
Engine
2YJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8812-9302)2YJ

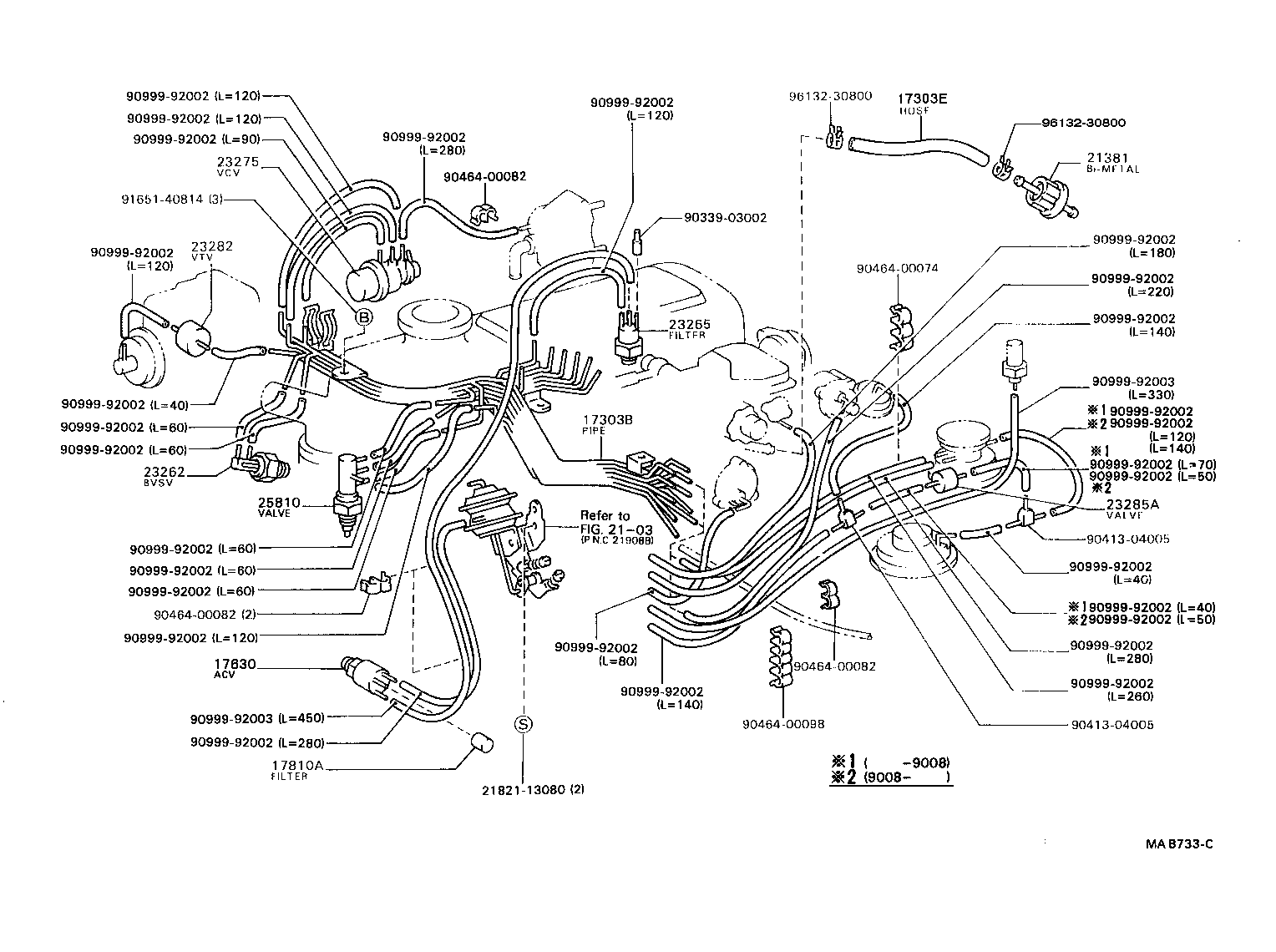

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71080 |
2YJ..YX76 |
1 | ||
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14139 |
2YJ..YX76 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28020 |
2YJ..YX76 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
2YJ..YX76 |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71050 |
2YJ..YX76 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05013 |
2YJ..YX76 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
2YJ..YX76 |
1 | ||
| 90917-11024 |
2YJ..YX76 |
1 | ||
| 90917-11024 |
2YJ..YX76 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03166 |
2YJ..YX76 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
2YJ..YX76..5F |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
2YJ..YX76 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 90925-02077 |
2YJ..YX76 |
1 | ||
| Common parts | ||||
| 21821-13080 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00098 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2103 | ||||
