Toyota Mark 2 v,wg GX70 METER - JDM Part Detective

Part #	Description	Period	Qty
83189 - BRACKET, METER
83189-20020	GX70,LX76,YX7#	10/1988 - 04/1997	1
83189 - BRACKET, METER
83189-20020	GX70,LX76,YX7#	10/1988 - 04/1997	1

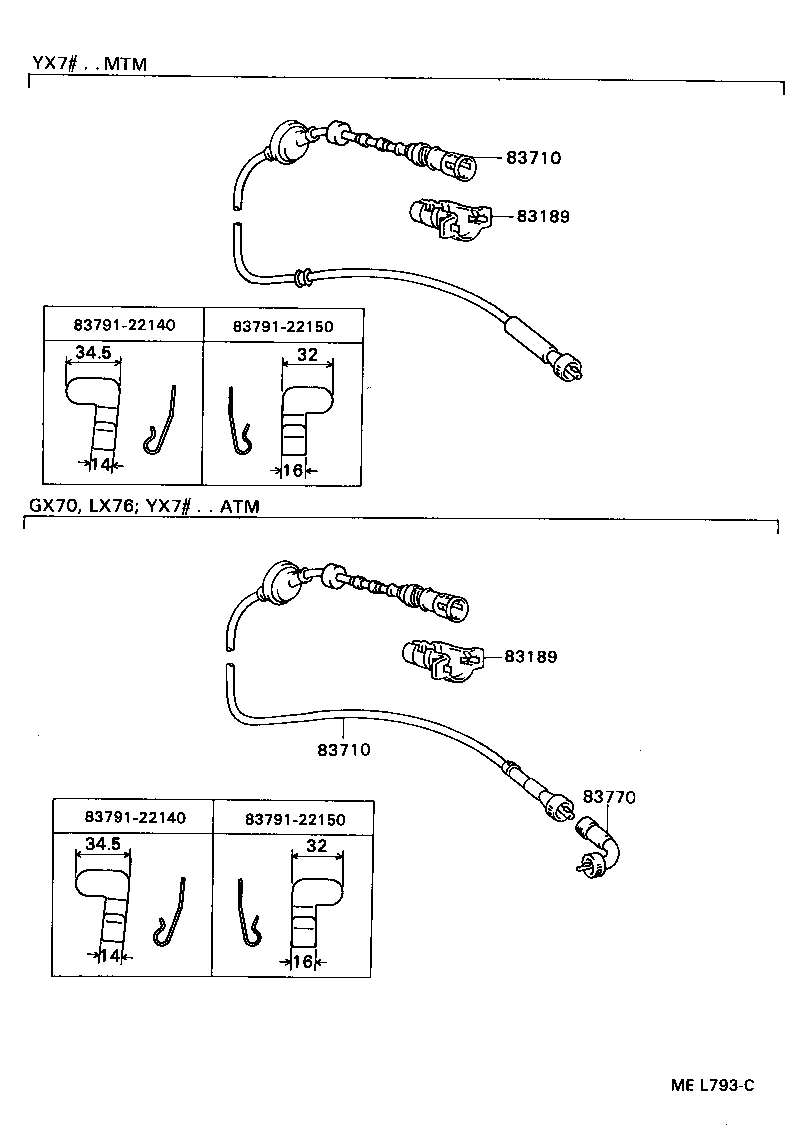

83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-22750	GX70..4FC	10/1988 - 04/1997	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-22750	GX70..4FC	10/1988 - 04/1997	1
83770 - ADAPTER ASSY, SPEEDOMETER CABLE
83770-22100	GX70,LX76;YX7#..3FC	10/1988 - 04/1997	1
Common parts
83791-22140
83791-22150

Part #	Description	Period	Qty

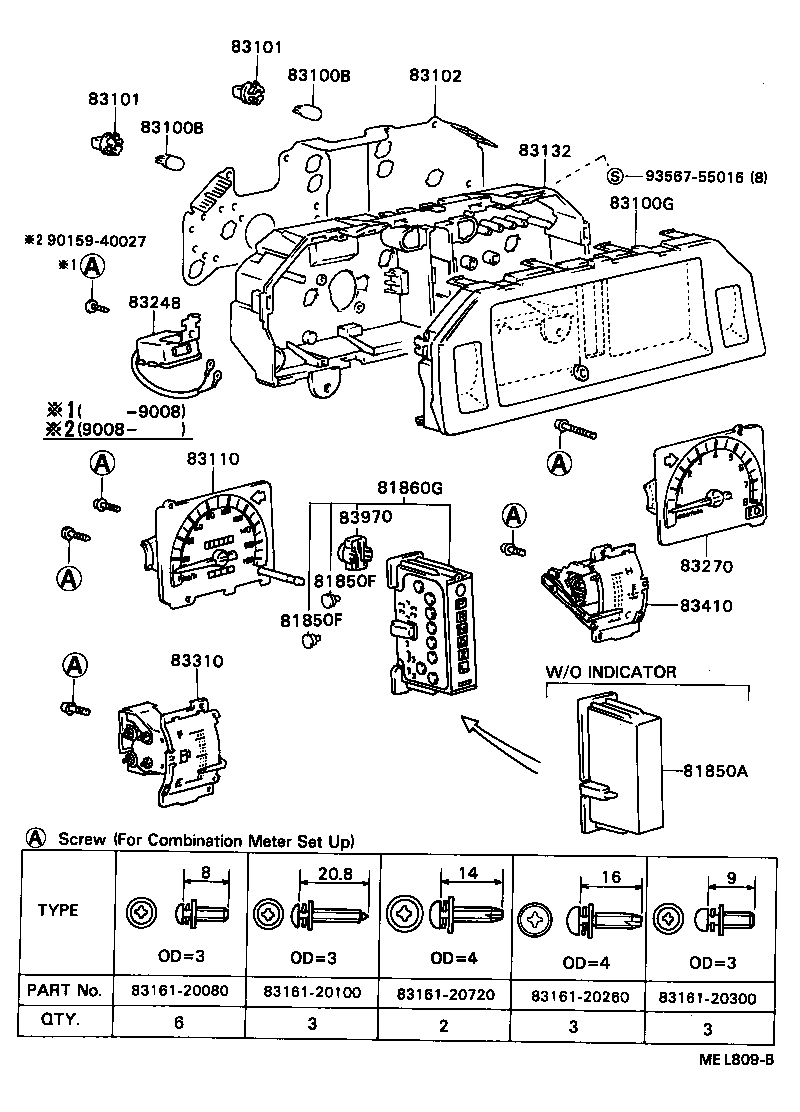

81850F - BULB, INDICATOR LAMP
84999-50180	GX70..4FC 12V 1.2W	10/1988 - 04/1997	7
84999-50190	GX70..4FC 12V 1.2W,ｸﾞﾘｰﾝｷｬｯﾌﾟ	10/1988 - 04/1997	1
81850F - BULB, INDICATOR LAMP
84999-50180	GX70..4FC 12V 1.2W	10/1988 - 04/1997	7
84999-50190	GX70..4FC 12V 1.2W,ｸﾞﾘｰﾝｷｬｯﾌﾟ	10/1988 - 04/1997	1
81860G - LAMP ASSY, TRANSMISSION INDICATOR
81860-22060	GX70..4FC	10/1988 - 04/1997	1
83100B - BULB, COMBINATION METER, NO.1
99132-12034	GX70 12V 3.4W,SOCKET:83101-20040	08/1990 - 04/1997	8
99132-12034	GX70,LX76,YX76 12V 3.4W,SOCKET:83101-20040	10/1988 - 08/1990	8
83100B - BULB, COMBINATION METER, NO.1
99132-12034	GX70 12V 3.4W,SOCKET:83101-20040	08/1990 - 04/1997	8
99132-12034	GX70,LX76,YX76 12V 3.4W,SOCKET:83101-20040	10/1988 - 08/1990	8
83100G - GLASS, COMBINATION METER
83134-2A440	GX70	10/1988 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040	GX70 BULB:12V 3.4W	08/1990 - 04/1997	8
83101-20040	GX70,LX76,YX76 BULB:12V 3.4W	10/1988 - 08/1990	8
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040	GX70 BULB:12V 3.4W	08/1990 - 04/1997	8
83101-20040	GX70,LX76,YX76 BULB:12V 3.4W	10/1988 - 08/1990	8
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-22640	GX70	10/1988 - 04/1997	1
83110 - SPEEDOMETER ASSY
83110-2A430	GX70	10/1988 - 08/1992	1
83110-2A431	GX70	08/1992 - 04/1997	1
83132 - CASE, COMBINATION METER
83132-22260	GX70	10/1988 - 04/1997	1
83248 - CHIME, SPEED WARNING
86640-22080	GX70,LX76,YX7#	10/1988 - 04/1997	1
83270 - TACHOMETER ASSY, ENGINE
83242-2A320	GX70	10/1988 - 04/1997	1
83310 - GAGE ASSY, FUEL RECEIVER
83243-22360	GX70	10/1988 - 04/1997	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-22240	GX70	10/1988 - 04/1997	1
83970 - BUZZER ASSY, REVERSE WARNING
83970-22010	GX70..4FC	08/1990 - 04/1997	1
83970-20010	GX70,YX76..ATM	10/1988 - 08/1990	1
Common parts
83161-20080
83161-20100
83161-20260
83161-20300
83161-20720
90159-40027
93567-55016

GX70G-XWPMK (1988)

ILLUST NO. 3 OF 3(8810- )

ILLUST NO. 1 OF 3(8810- )GX70

ILLUST NO. 2 OF 3(8810- )

Part Price Details

Part #	Description	Period	Qty

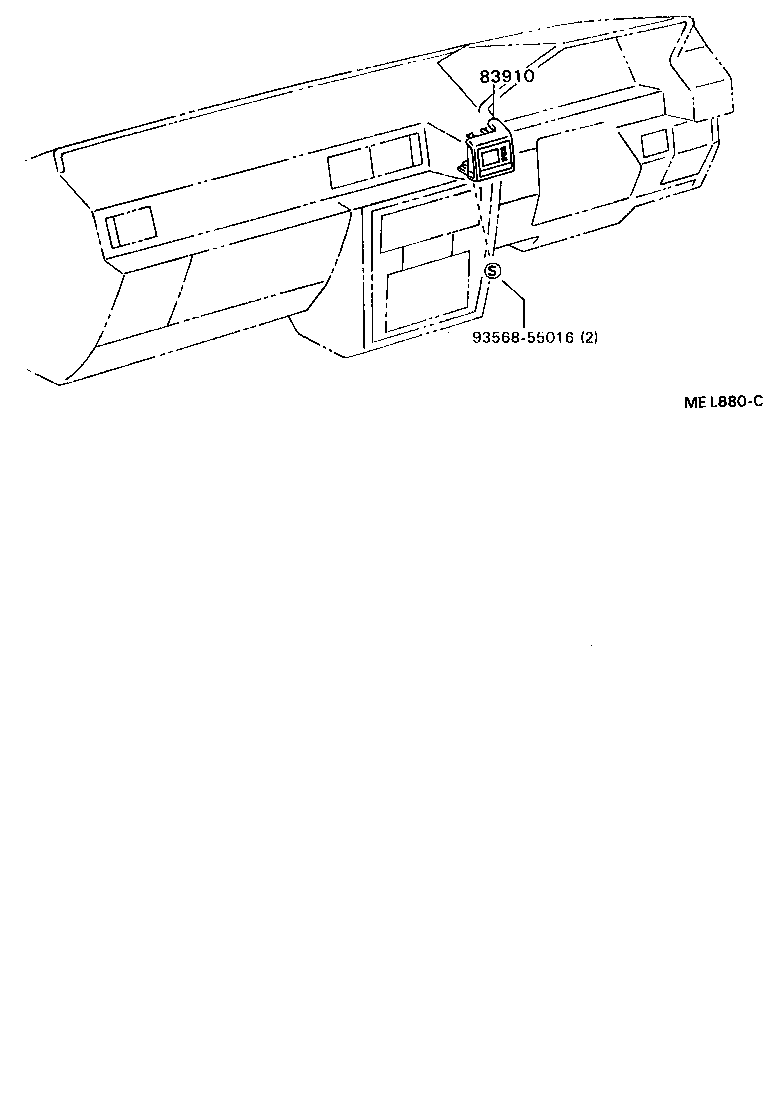

83910 - CLOCK ASSY
83910-22351	GX70,LX76,YX7#	10/1988 - 04/1997	1
Common parts
93568-55016
