GX70G-XWPMK (1988)

Toyota Mark 2 V,Wg

Production Oct 1988 - Apr 1997
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

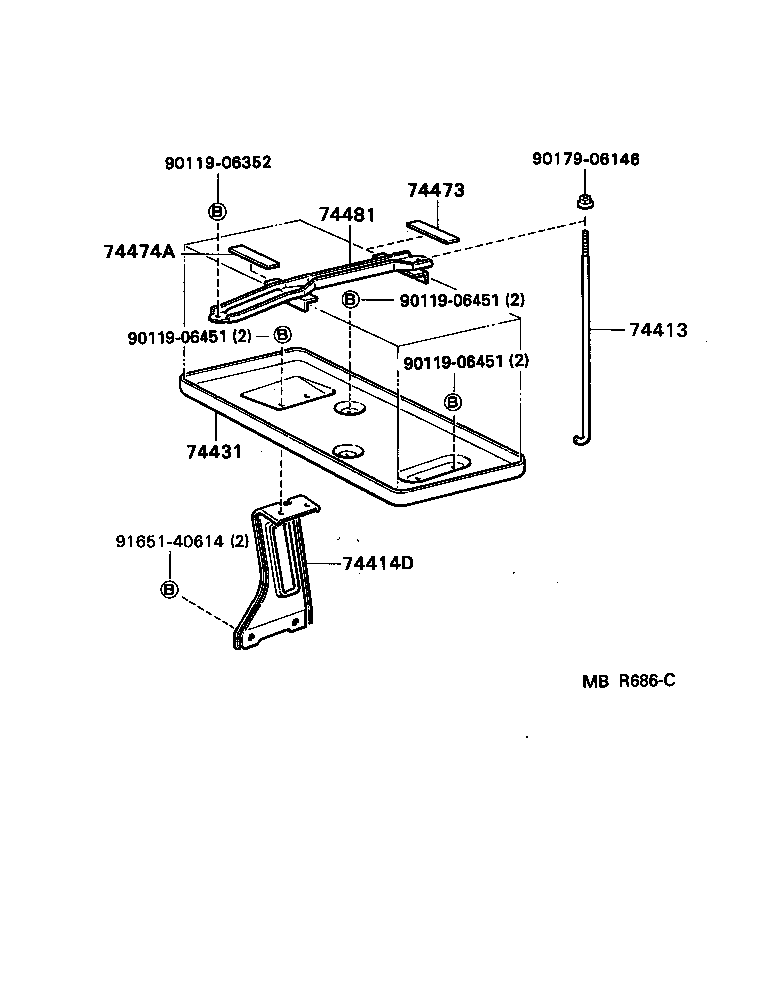

Click highlighted areas on diagram

diagram 74413 74414D 74431 74473 74474A 74481 9011906352 9011906451 9011906451 9011906451 9017906146 9165140614
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-16010

GX70,LX76,YX7#

 1
74431 - TRAY, BATTERY
74431-22040

GX70,LX76

 1
74473 - SPACER, BATTERY
74473-22010

GX70,LX76,YX7#

 1
74474A - SPACER, BATTERY, NO.2
74474-22010

GX70,LX76,YX7#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-22180

GX70,LX76

 1
Common parts
90119-06352
90119-06451
90179-06146
91651-40614
