GX70G-XWPMK (1988)
Toyota Mark 2 V,Wg
Production
Oct 1988
-
Apr 1997
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

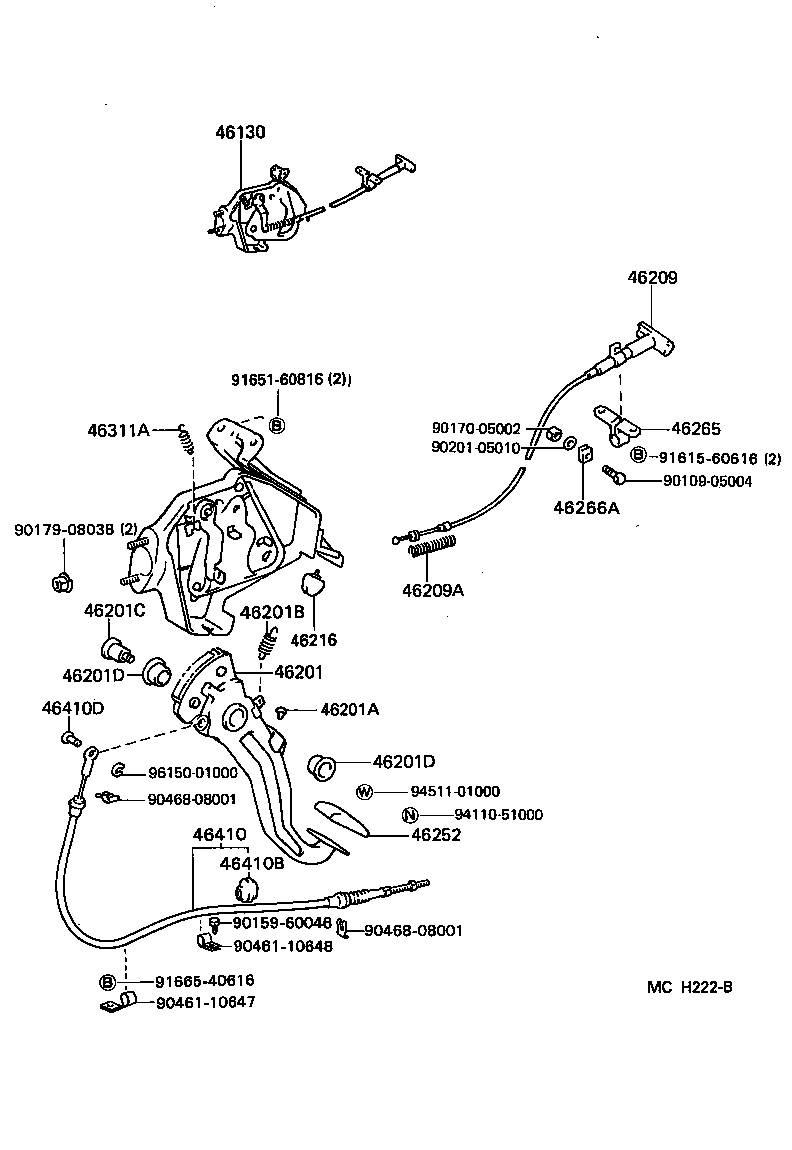

ILLUST NO. 1 OF 2(8810- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-22040 |
GX70..4FC |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-22141 |
GX70..4FC |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GX70..4FC |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-14010 |
GX70..4FC |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
GX70..4FC |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GX70..4FC |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GX70..4FC |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-22040 |
GX70..4FC |
1 | ||
| 46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE) | ||||
| 90501-08030 |
GX70..4FC |
1 | ||
| 46216 - CUSHION, PARKING PEDAL | ||||
| 90541-07008 |
GX70..4FC |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
GX70..4FC |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-22030 |
GX70..4FC |
1 | ||
| 46266A - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
GX70..4FC |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90506-07007 |
GX70..4FC |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-22180 |
GX70..4FC |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-01022 |
GX70..4FC |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10012 |
GX70..4FC |
1 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90159-60046 | ||||
| 90170-05002 | ||||
| 90179-08038 | ||||
| 90201-05010 | ||||
| 90461-10647 | ||||
| 90461-10648 | ||||
| 90468-08001 | ||||
| 91615-60616 | ||||
| 91651-60816 | ||||
| 91665-40616 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||

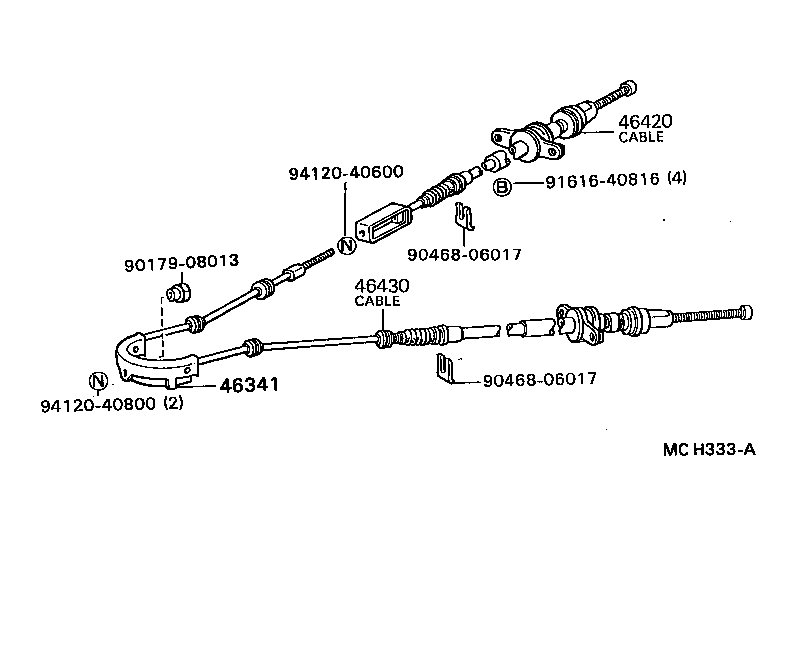

ILLUST NO. 2 OF 2(8810- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-22040 |
GX70,LX76,YX7# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-23140 |
GX70,LX76,YX7# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-23100 |
GX70,LX76,YX7# |
1 | ||
| Common parts | ||||
| 90179-08013 | ||||
| 90468-06017 | ||||
| 91616-40816 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
