GX70G-XWPMK (1988)
Toyota Mark 2 V,Wg
Production
Oct 1988
-
Apr 1997
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8810- )ATM

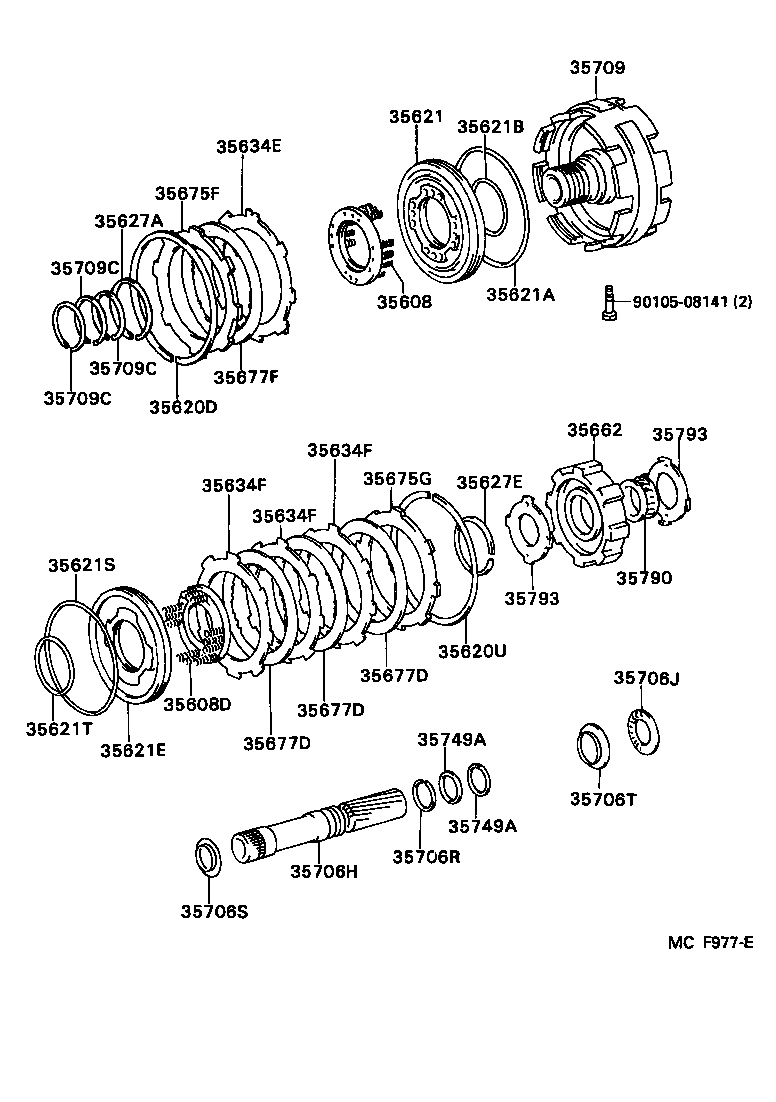

Click highlighted areas on diagram
A41,A42DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-20010 |
GX70,YX7#..ATM |
1 | ||
| 35608D - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-22010 |
GX70..4FC |
1 | ||
| 35620D - RING (FOR BRAKE) | ||||
| 90521-99139 |
GX70,YX7#..ATM |
1 | ||
| 35620U - RING (FOR REAR BRAKE) | ||||
| 90521-99139 |
GX70,YX7#..ATM |
1 | ||
| 35621 - PISTON, BRAKE, NO.1 | ||||
| 35624-22010 |
GX70,YX7#..ATM |
1 | ||
| 35621A - RING, O (FOR BRAKE PISTON OUTER) | ||||
| 90301-99192 |
GX70,YX7#..ATM |
1 | ||
| 35621B - RING, O (FOR BRAKE PISTON INNER) | ||||
| 90301-57188 |
GX70,YX7#..ATM |
1 | ||
| 35621E - PISTON, BRAKE (FOR REAR BRAKE) | ||||
| 35621-30010 |
GX70,YX7#..ATM |
1 | ||
| 35621S - RING (FOR REAR BRAKE PISTON OUTER) | ||||
| 90301-99007 |
GX70,YX7#..ATM |
1 | ||
| 35621T - RING (FOR REAR BRAKE PISTON INNER) | ||||
| 90301-57188 |
GX70,YX7#..ATM |
1 | ||
| 35627A - RING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
GX70,YX7#..ATM |
1 | ||
| 35627E - RING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT) | ||||
| 90520-52262 |
GX70,YX7#..ATM |
1 | ||
| 35634E - PLATE, CLUTCH (FOR BRAKE) | ||||
| 35634-22060 |
GX70,YX7#..ATM |
1 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35648-30020 |
GX70..4FC 厚さ=2.3 |
3 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35648-30020 |
GX70..4FC 厚さ=2.3 |
3 | ||
| 35634F - PLATE, CLUTCH (FOR REAR BRAKE) | ||||
| 35648-30020 |
GX70..4FC 厚さ=2.3 |
3 | ||
| 35662 - HUB, BRAKE | ||||
| 35662-30010 |
GX70,YX7#..ATM |
1 | ||
| 35675F - FLANGE, CLUTCH (FOR BRAKE) | ||||
| 35675-22010 |
GX70..4FC |
1 | ||
| 35675G - FLANGE, BRAKE (FOR REAR BRAKE) | ||||
| 34625-22010 |
GX70..4FC |
1 | ||
| 35677D - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GX70..4FC |
3 | ||
| 35677D - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GX70..4FC |
3 | ||
| 35677D - DISC, CLUTCH (FOR REAR BRAKE) | ||||
| 35677-30020 |
GX70..4FC |
3 | ||
| 35677F - DISC, CLUTCH (FOR BRAKE) | ||||
| 35677-30100 |
GX70,YX7#..ATM |
1 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-22011 |
GX70,YX7#..ATM |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-23012 |
GX70,YX7#..ATM |
1 | ||
| 35706R - RING, SHAFT SNAP (FOR PLANETARY SUN GEAR) | ||||
| 90520-34260 |
GX70,YX7#..ATM |
1 | ||
| 35706S - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT) | ||||
| 35789-22030 |
GX70,YX7#..ATM |
1 | ||
| 35706T - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR) | ||||
| 35789-22010 |
GX70,YX7#..ATM |
1 | ||
| 35709 - SUPPORT SUB-ASSY, CENTER | ||||
| 35709-28010 |
GX70,YX7#..ATM |
1 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GX70,YX7#..ATM |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GX70,YX7#..ATM |
3 | ||
| 35709C - RING, OIL SEAL (FOR CENTER SUPPORT) | ||||
| 35617-16010 |
GX70,YX7#..ATM |
3 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-22010 |
GX70,YX7#..ATM |
2 | ||
| 35749A - RING, SUN GEAR SHAFT OIL SEAL | ||||
| 35749-22010 |
GX70,YX7#..ATM |
2 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35791-30020 |
GX70..4FC |
1 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
GX70,YX7#..ATM |
2 | ||
| 35793 - RETAINER, 1 WAY CLUTCH | ||||
| 35793-22011 |
GX70,YX7#..ATM |
2 | ||
| Common parts | ||||
| 90105-08141 | ||||
