MARK 2 V,WG
GX70G-XWMMK (1988)
6709 - BACK DOOR LOCK & HANDLE

GX70G-XWMMK (1988)

Toyota Mark 2 V,Wg

Production Oct 1988 - Apr 1997

Engine 1GFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8810- )

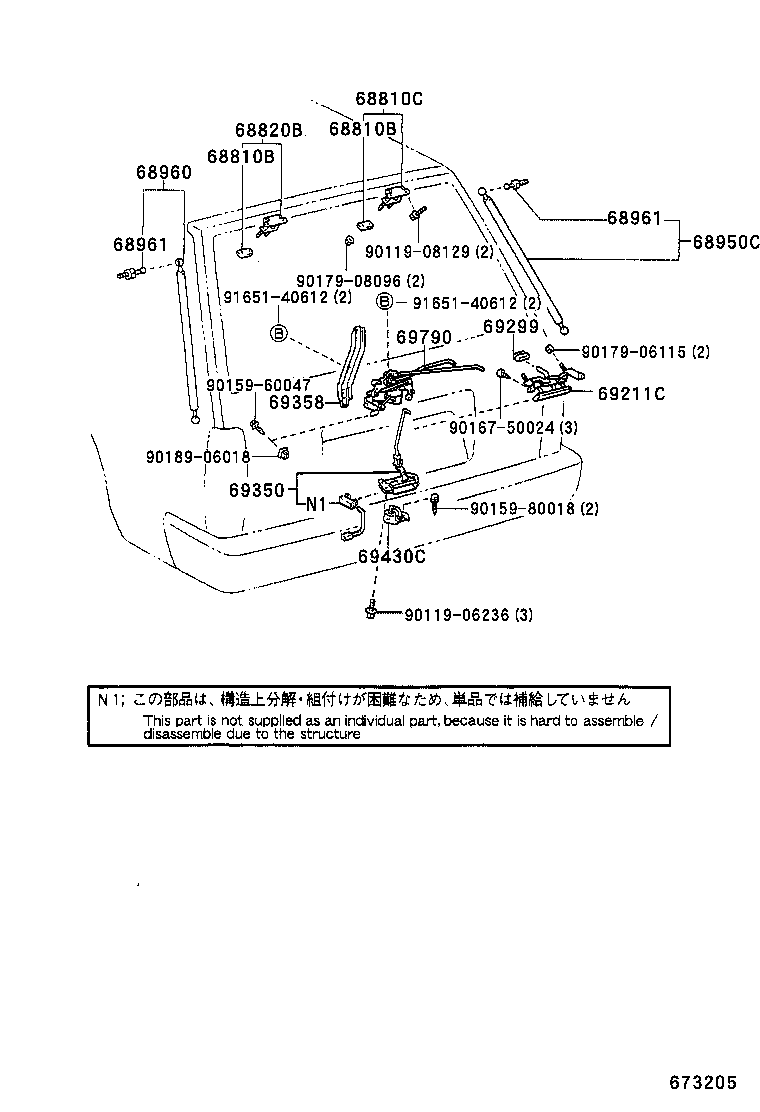

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
68810B - PAD, BACK DOOR HINGE
68838-23011	GX70,LX76,YX7#	10/1988 - 04/1997	2
68810B - PAD, BACK DOOR HINGE
68838-23011	GX70,LX76,YX7#	10/1988 - 04/1997	2
68810C - HINGE ASSY, BACK DOOR, RH
68810-23011	GX70,LX76,YX7#	10/1988 - 04/1997	1
68820B - HINGE ASSY, BACK DOOR, LH
68810-23011	GX70,LX76,YX7#	10/1988 - 04/1997	1
68950C - STAY ASSY, BACK DOOR, RH
68950-29405	GX70,YX7#..GL,LG	10/1988 - 04/1997	1
68960 - STAY ASSY, BACK DOOR, LH
68960-29245	GX70,YX7#..GL,LG	10/1988 - 04/1997	1
68961 - BOLT, BACK DOOR STAY
68961-23010	GX70,LX76,YX7#	10/1988 - 04/1997	4
68961 - BOLT, BACK DOOR STAY
68961-23010	GX70,LX76,YX7#	10/1988 - 04/1997	4
69211C - HANDLE, BACK DOOR OUTSIDE
69209-23010	GX70,YX7#..GL,LG	10/1988 - 04/1997	1
69299 - GROMMET, BACK DOOR HANDLE
69299-91701	GX70,LX76,YX7#	10/1988 - 04/1997	1
69350 - LOCK ASSY, BACK DOOR
69350-23020	GX70,LX76,YX78	02/1993 - 04/1997	1
69350-91610	GX70,LX76,YX76	10/1988 - 02/1993	1
69358 - PROTECTOR, BACK DOOR LOCK
69358-23010	GX70,LX76,YX7#	10/1988 - 04/1997	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-23010	GX70,LX76,YX7#	10/1988 - 04/1997	1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-23020	GX70,YX7#..GL,LG	10/1988 - 04/1997	1
Common parts
90119-06236
90119-08129
90159-60047
90159-80018
90167-50024
90179-06115
90179-08096
90189-06018
91651-40612
