Toyota Mark 2 YX80 INTERIOR LAMP

Part #	Description	Period	Qty
81240 - LAMP ASSY, ROOM, NO.1
81240-1203014	GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD BLUE,TRIM8#	08/1988 - 08/1990	1
81240-1203033	GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD MEDIUM GRAY,TRIM1#	08/1990 - 12/1995	1
81240B - BULB, ROOM LAMP, NO.1
99132-12100	GX81,JZX81,LX80,MX83,SX80,YX80 12V 10W	08/1988 - 12/1995	1
81241 - LENS, ROOM LAMP, NO.1
81241-12020	GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD	08/1988 - 12/1995	1
81260A - LAMP ASSY, MAP
81260-2210004	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(CI,DSL,HTWC,TD) LIGHT BLUE,TRIM8#	08/1988 - 08/1990	1
81260-2210003	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(DSL,HTWC,TD) MEDIUM GRAY,TRIM1#	08/1990 - 02/1993	1
81260-2210003	SX80..GR,KYO;GX81,LX80,YX80 MEDIUM GRAY,TRIM1#	02/1993 - 12/1995	1
81260A - LAMP ASSY, MAP
81260-2210004	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(CI,DSL,HTWC,TD) LIGHT BLUE,TRIM8#	08/1988 - 08/1990	1
81260-2210003	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(DSL,HTWC,TD) MEDIUM GRAY,TRIM1#	08/1990 - 02/1993	1
81260-2210003	SX80..GR,KYO;GX81,LX80,YX80 MEDIUM GRAY,TRIM1#	02/1993 - 12/1995	1
81260C - BULB(FOR MAP LAMP)
90981-12014	YX80;GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,KYO,LG 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	08/1988 - 02/1993	2
90981-12014	SX80..GR,KYO;GX81,LX80,YX80 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	02/1993 - 12/1995	2
81260C - BULB(FOR MAP LAMP)
90981-12014	YX80;GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,KYO,LG 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	08/1988 - 02/1993	2
90981-12014	SX80..GR,KYO;GX81,LX80,YX80 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	02/1993 - 12/1995	2
81260C - BULB(FOR MAP LAMP)
90981-12014	YX80;GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,KYO,LG 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	08/1988 - 02/1993	2
90981-12014	SX80..GR,KYO;GX81,LX80,YX80 12V 10W,ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	02/1993 - 12/1995	2
81261 - LENS AND COVER, MAP LAMP
81261-2210004	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(CI,DSL,HTWC,TD) LIGHT BLUE,TRIM8#	08/1988 - 08/1990	1
81261-22100B0	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(DSL,HTWC,TD) MIDIUM GRAY,TRIM1#	08/1990 - 02/1993	1
81261-22100B0	SX80..GR,KYO;GX81,LX80,YX80 MIDIUM GRAY,TRIM1#	02/1993 - 12/1995	1
81261 - LENS AND COVER, MAP LAMP
81261-2210004	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(CI,DSL,HTWC,TD) LIGHT BLUE,TRIM8#	08/1988 - 08/1990	1
81261-22100B0	YX80;GX81,LX80,SX80..(GD,GR,KYO,LG)..(DSL,HTWC,TD) MIDIUM GRAY,TRIM1#	08/1990 - 02/1993	1
81261-22100B0	SX80..GR,KYO;GX81,LX80,YX80 MIDIUM GRAY,TRIM1#	02/1993 - 12/1995	1
Common parts
90164-45008
93540-24016

Part #	Description	Period	Qty
81360B - BULB, STEP OR SPOT LAMP
99132-13060	LX80,SX80,YX80..KYO 12V 6W	08/1988 - 12/1995	1
81380D - LAMP ASSY, STEP
81380-22020	LX80,SX80,YX80..KYO	08/1988 - 12/1995	1
81381 - LENS, STEP LAMP
81271-10010	LX80,SX80,YX80..KYO	08/1988 - 12/1995	1
81382 - GASKET, STEP LAMP
81272-10010	LX80,SX80,YX80..KYO	08/1988 - 12/1995	1
81385 - SOCKET, STEP LAMP
90075-99005	LX80,SX80,YX80..KYO	08/1988 - 12/1995	1
81386 - COVER, STEP LAMP
81386-22010	LX80,SX80,YX80..KYO	08/1988 - 12/1995	1
81871 - LENS, KEY ILLUMINATION
81871-22010	LX80,SX80,YX80..GL,KYO,STD	08/1988 - 12/1995	1
Common parts
90159-50151
91656-60820
93219-14006
93315-15010

YX80Y-AEMRP (1988)

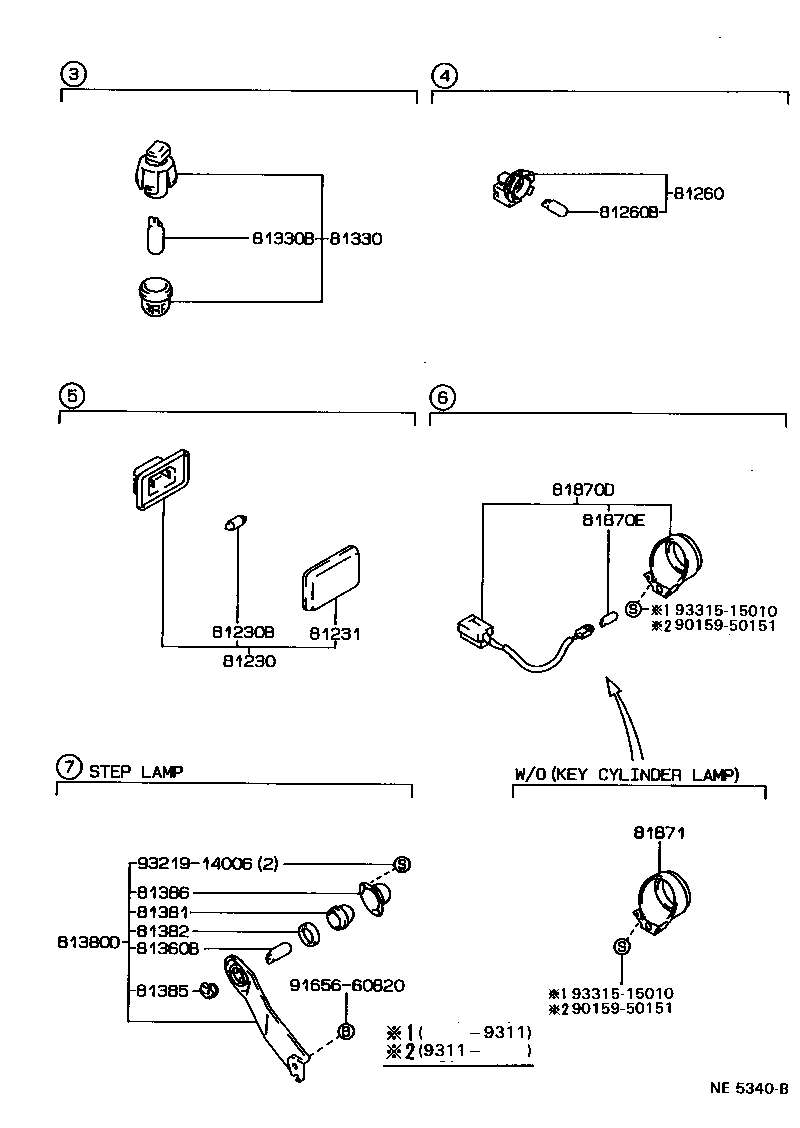

ILLUST NO. 1 OF 2(8808- )

ILLUST NO. 2 OF 2(8808- )
