YX80Y-AEMRP (1988)
Toyota Mark 2

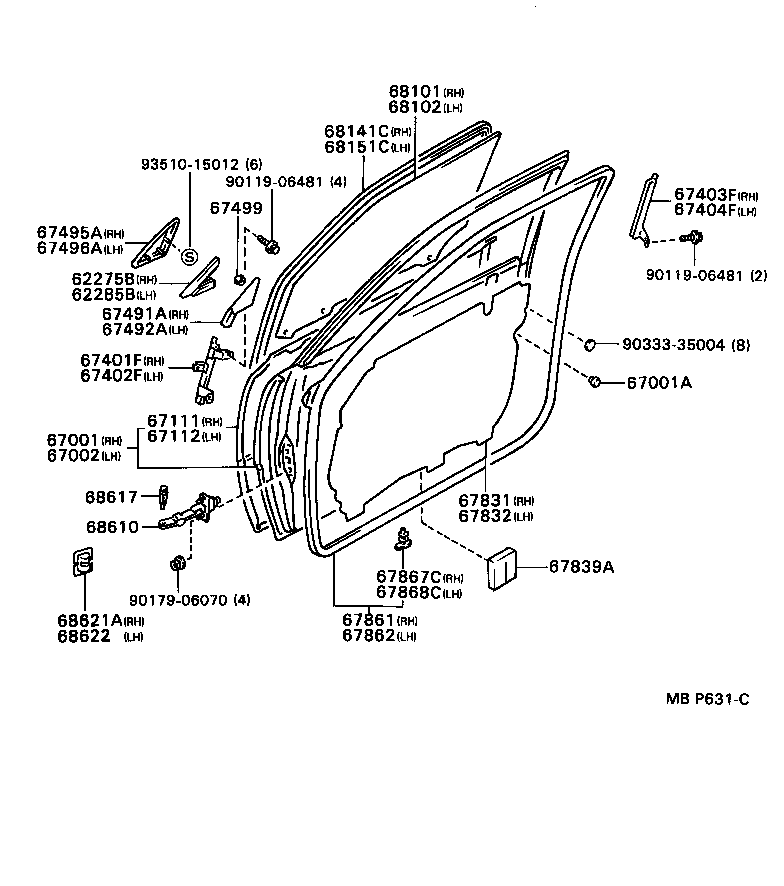

ILLUST NO. 1 OF 2(8808- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62275B - COVER, SIDE WINDOW, RH | ||||
| 62275-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 62285B - COVER, SIDE WINDOW, LH | ||||
| 62285-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22300 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67001-22310 |
GX81,LX80,SX80,YX80 |
1 | ||
| 67001-22300 |
SX80,YX80..KYO |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09063 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22320 |
GX81,LX80,SX80,YX80 |
1 | ||
| 67002-22310 |
SX80,YX80..KYO |
1 | ||
| 67002-22310 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-22170 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-22180 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-2208001 |
LX80,SX80,YX80..KYO,STD BLACK,TRIM8# |
1 | ||
| 67491-2208001 |
LX80,SX80,YX80..KYO,STD BLACK,TRIM1# |
1 | ||
| 67491-2208001 |
GX81,LX80,SX80,YX80 BLACK,TRIM1# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-2208001 |
LX80,SX80,YX80..KYO,STD BLACK,TRIM8# |
1 | ||
| 67492-2208001 |
GX81,LX80,SX80,YX80 BLACK,TRIM1# |
1 | ||
| 67492-2208001 |
LX80,SX80,YX80..KYO,STD BLACK,TRIM1# |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-30020 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22200 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-22090 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) |
1 | ||
| 67839A - COVER, FRONT DOOR SERVICE HOLE, LOWER | ||||
| 67839-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22230 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22230 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
18 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-22270 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED *TT,厚さ=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-22250 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED *TT,厚さ=4.0 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-22150 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-22040 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 68610-22050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 68610-22050 |
GX81,SX80,YX80 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-23010 |
GX81,SX80,YX80 |
2 | ||
| 68617-12030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 68617-20011 |
GX81,LX80,SX80,YX80 |
2 | ||
| 68617-23010 |
GX81,LX80,SX80,YX80 |
2 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-22020 |
GX81,SX80,YX80 |
1 | ||
| 68621-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-22020 |
GX81,SX80,YX80 |
1 | ||
| 68622-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90119-06481 | ||||
| 90179-06070 | ||||
| 90333-35004 | ||||
| 93510-15012 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2A01004 |
LX80,SX80,YX80..KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67650-2A01003 |
LX80,SX80,YX80..KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2A01004 |
LX80,SX80,YX80..KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67650-2A01003 |
LX80,SX80,YX80..KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67773-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67774-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,左側 |
1 | ||
| 67773-2201003 |
LX80,SX80,YX80..GL,KYO,STD;GX81,JZX81,LX80,MX83,SX80..HT MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
GX81,LX80,SX80,YX80 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67773-2201003 |
GX81,LX80,SX80,YX80 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
LX80,SX80,YX80..GL,KYO,STD;GX81,JZX81,LX80,MX83,SX80..HT MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67773-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,右側 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 67773-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67774-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,左側 |
1 | ||
| 67773-2201003 |
LX80,SX80,YX80..GL,KYO,STD;GX81,JZX81,LX80,MX83,SX80..HT MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
GX81,LX80,SX80,YX80 MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67773-2201003 |
GX81,LX80,SX80,YX80 MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 67774-2201003 |
LX80,SX80,YX80..GL,KYO,STD;GX81,JZX81,LX80,MX83,SX80..HT MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 67773-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8#,右側 |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
10 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2C35004 |
LX80,SX80,YX80..KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67620-2C35003 |
LX80,SX80,YX80..KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2C35004 |
LX80,SX80,YX80..KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67620-2C35003 |
LX80,SX80,YX80..KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80..SED |
10 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80..SED |
10 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204059 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67777-2204010 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67777-22040B0 |
SX80,YX80..GL,KYO MEDIUM GRAY,GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204059 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67777-2204010 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67777-22040B0 |
SX80,YX80..GL,KYO MEDIUM GRAY,GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204059 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67777-2204010 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67777-22040B0 |
SX80,YX80..GL,KYO MEDIUM GRAY,GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203050 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67778-2203059 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203050 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67778-2203059 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203050 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 67778-2203059 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 67772-22010 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 90168-60015 | ||||
| 90189-06120 | ||||
| 90189-06125 | ||||
| 90468-05052 | ||||
