YX80Y-AEHRP (1988)
Toyota Mark 2
Production
Aug 1988
-
May 1993
Engine
3YP
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3YP

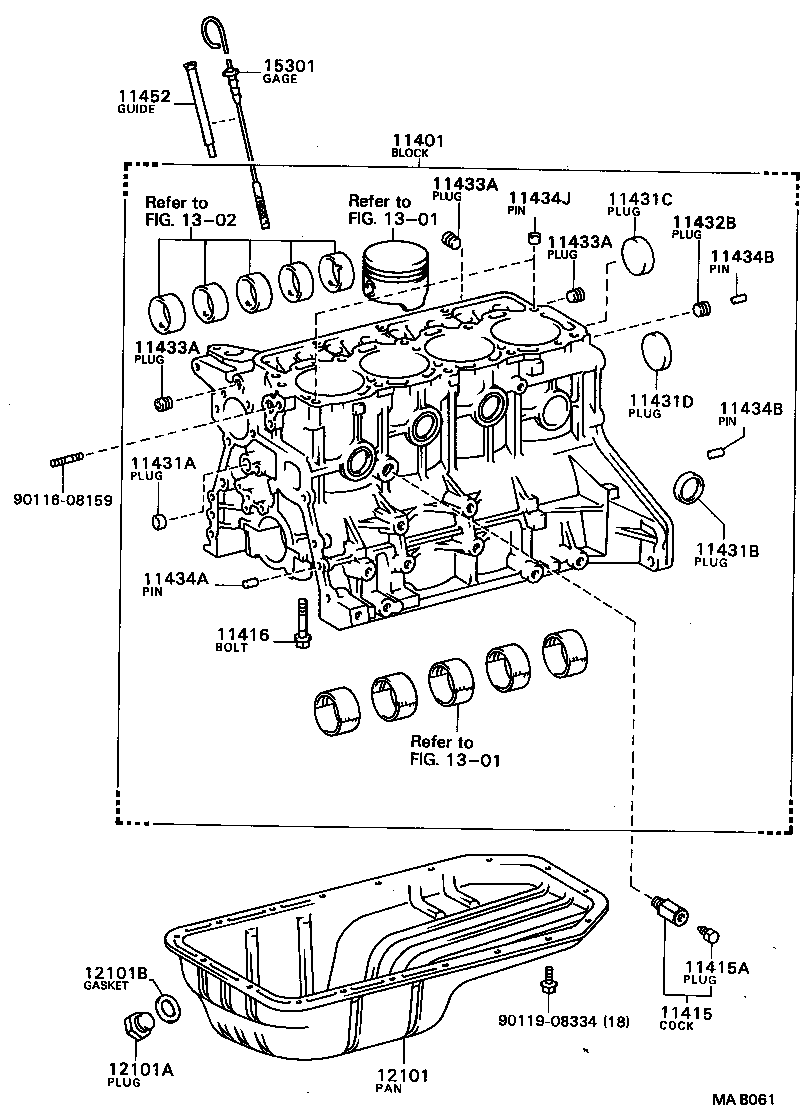

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-79086 |
3YP..YX80 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
3YP..YX80 |
1 | ||
| 96431-53828 |
3YP..YX80 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
3YP..YX80 |
1 | ||
| 96432-23814 |
3YP..YX80 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
3YP..YX80 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-01800 |
3YP..YX80 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
3YP..YX80 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
3YP..YX80 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
3YP..YX80 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53011 |
3YP..YX80 |
1 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
3YP..YX80 |
3 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
3YP..YX80 |
3 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90072-34402 |
3YP..YX80 |
3 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
3YP..YX80 長さ=18,外径=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
3YP..YX80 長さ=22,外径=10 |
2 | ||
| 90250-08120 |
3YP..YX80 長さ=18,外径=8 |
2 | ||
| 90250-10113 |
3YP..YX80 長さ=22,外径=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
3YP..YX80 長さ=22,外径=10 |
2 | ||
| 90250-08120 |
3YP..YX80 長さ=18,外径=8 |
2 | ||
| 90250-10113 |
3YP..YX80 長さ=22,外径=10 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
3YP..YX80 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-40010 |
3YP..YX80..KYO;3YP..YX80..3FC..GL |
1 | ||
| 11452-40010 |
3YP..YX80 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-71011 |
3YP..YX80 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
3YP..YX80 |
1 | ||
| 90341-12012 |
3YP..YX80 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12019 |
3YP..YX80 |
1 | ||
| 90430-12019 |
3YP..YX80 *53 |
1 | ||
| 90430-12027 |
3YP..YX80 *54 |
1 | ||
| 90430-12019 |
3YP..YX80 |
1 | ||
| 90430-12027 |
3YP..YX80 |
1 | ||
| 90430-12027 |
3YP..YX80 *54 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-72010 |
3YP..YX80 |
1 | ||
| Common parts | ||||
| 90116-08159 | ||||
| 90119-08334 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
