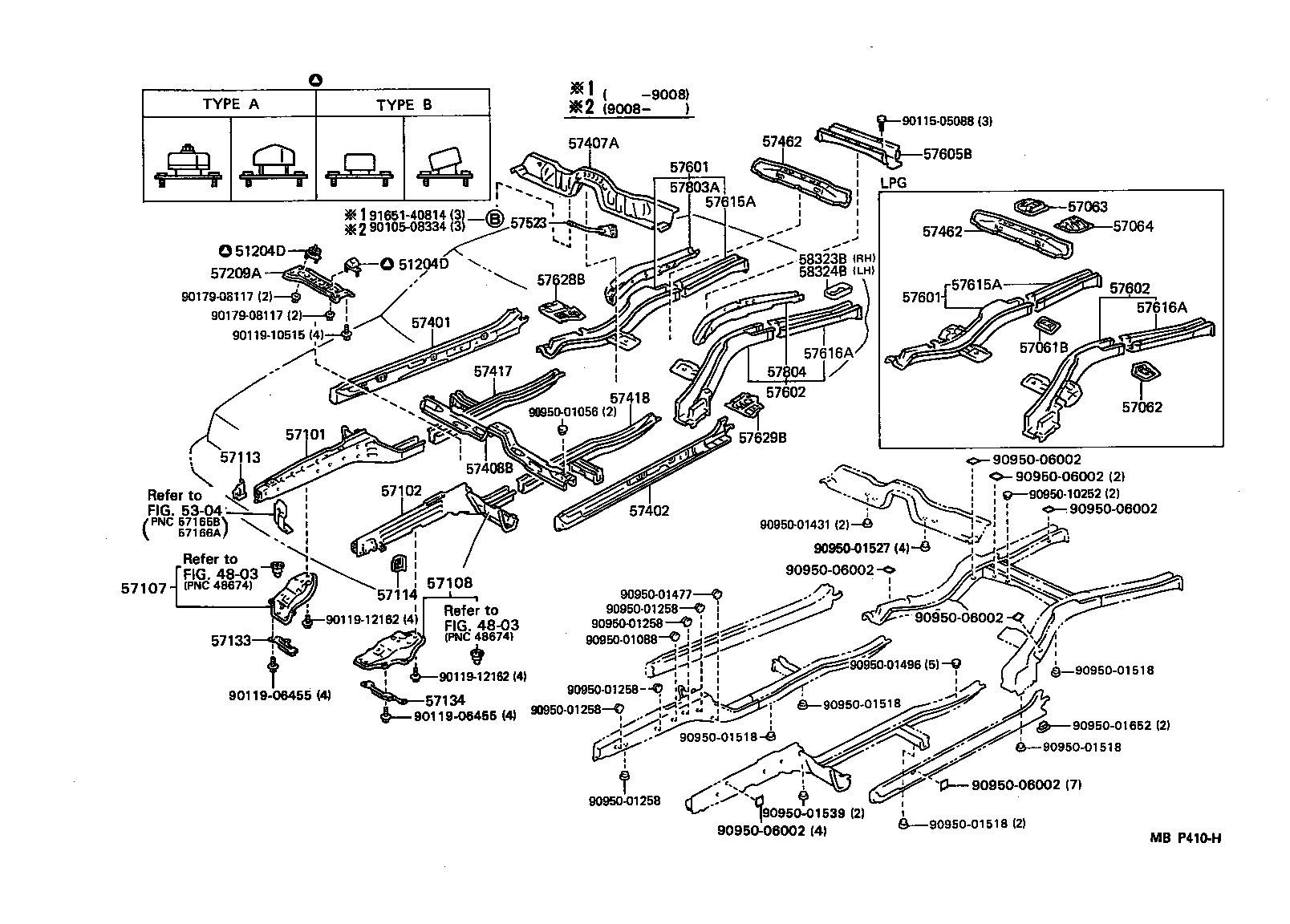

Toyota Mark 2 YX80 FLOOR SIDE MEMBER

Part #	Description	Period	Qty
57061B - BRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT RH
57061-22100	YX80	08/1988 - 12/1995	1
57062 - BRACKET SUB-ASSY, FUEL TANK MOUNTING, FRONT LH
57062-22020	YX80	08/1988 - 12/1995	1
57063 - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH
57063-22030	YX80	08/1988 - 12/1995	1
57064 - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR LH
57064-22030	YX80	08/1988 - 12/1995	1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-22300	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-22340	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22091	GX81,JZX81,LX80,MX83,SX80,YX80	08/1990 - 12/1995	1
57107-22080	GX81,LX80,MX83,SX80,YX80	08/1988 - 08/1990	1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22151	GX81,JZX81,LX80,MX83,SX80,YX80	08/1990 - 12/1995	1
57108-22110	GX81,LX80,MX83,SX80,YX80	08/1988 - 08/1990	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22060	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22060	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-22030	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57134 - PROTECTOR, STRUT BAR BRACKET, LH
57134-22020	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57209-22130	YX80..5F	08/1988 - 12/1995	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22130	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22130	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-22090	LX80,SX80,YX80	08/1988 - 12/1995	1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-22031	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57505-22070	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57506-22070	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57462 - MEMBER, CENTER FLOOR CROSS, NO.2
57462-22030	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57462 - MEMBER, CENTER FLOOR CROSS, NO.2
57462-22030	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22220	LX80,SX80,YX80	11/1988 - 12/1995	1
57601-22290	LX80,SX80,YX80	08/1988 - 11/1988	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22220	LX80,SX80,YX80	11/1988 - 12/1995	1
57601-22290	LX80,SX80,YX80	08/1988 - 11/1988	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22210	LX80,SX80,YX80	11/1988 - 12/1995	1
57602-22280	LX80,SX80,YX80	08/1988 - 11/1988	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22210	LX80,SX80,YX80	11/1988 - 12/1995	1
57602-22280	LX80,SX80,YX80	08/1988 - 11/1988	1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-22901	LX80,SX80,YX80	08/1988 - 12/1995	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22904	LX80,SX80,YX80	08/1988 - 09/1988	1
57615-22906	GX81,LX80,MX83,SX80,YX80	09/1988 - 08/1990	1
57615-22905	GX81,JZX81,LX80,MX83,SX80,YX80	08/1990 - 12/1995	1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22904	LX80,SX80,YX80	08/1988 - 09/1988	1
57615-22906	GX81,LX80,MX83,SX80,YX80	09/1988 - 08/1990	1
57615-22905	GX81,JZX81,LX80,MX83,SX80,YX80	08/1990 - 12/1995	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22070	LX80,SX80,YX80	08/1988 - 09/1988	1
57616-22090	GX81,JZX81,LX80,MX83,SX80,YX80	09/1988 - 12/1995	1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22070	LX80,SX80,YX80	08/1988 - 09/1988	1
57616-22090	GX81,JZX81,LX80,MX83,SX80,YX80	09/1988 - 12/1995	1
57628B - PLATE, REAR FLOOR SIDE MEMBER, RH
57628-22020	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
57629B - PLATE, REAR FLOOR SIDE MEMBER, LH
57629-22010	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
58323B - REINFORCE, REAR BUMPER ARM SUPPORT, RH
58303-22060	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
58324B - REINFORCE, REAR BUMPER ARM SUPPORT, LH
58304-22030	GX81,JZX81,LX80,MX83,SX80,YX80	08/1988 - 12/1995	1
Common parts
90105-08334
90115-05088
90119-06455
90119-10515
90119-12162
90179-08117
90950-01056
90950-01088
90950-01258
90950-01431
90950-01477
90950-01496
90950-01518
90950-01527
90950-01539
90950-01652
90950-06002
90950-10252
91651-40814
Linked diagrams
4803
5304

YX80-AEMNP (1988)

(8808- )
