YX80-AEMNP (1988)
Toyota Mark 2

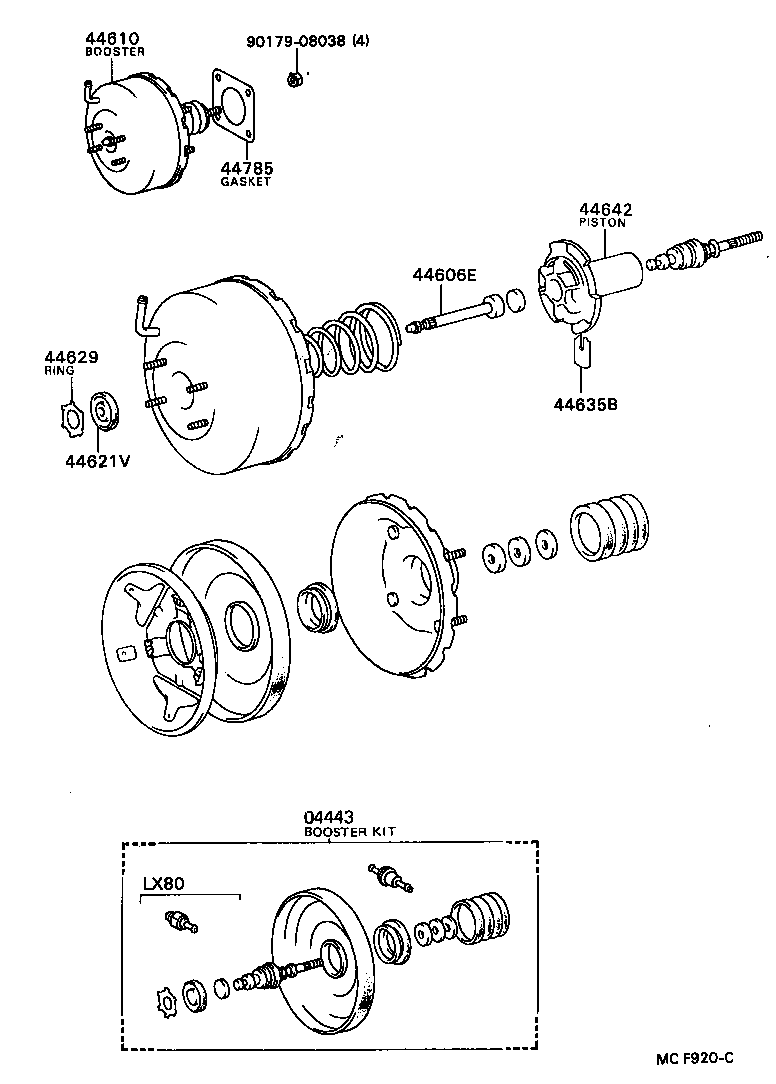

ILLUST NO. 1 OF 4(8808- )GL,GR,KYO,LG,STD
AISIN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-22680 |
GX81,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 04443-22610 |
GX81,SX80,YX80..GL,GR,KYO,LG,STD AISIN |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44608-32020 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44606-12520 |
GX81,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44608-32020 |
GX81,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44606-12520 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22700 |
GX81,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44633-28130 |
GX81,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44633-28130 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44635-28120 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44635-28120 |
GX81,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-32010 |
GX81,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
GX81,LX80,SX80,YX80 |
1 | ||
| 44785-32010 |
GX81,SX80,YX80 |
1 | ||
| 44785-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 4(8808- )GL,GR,LG,STD
JKC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-22680 |
GX81,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 04443-22610 |
GX81,SX80,YX80..GL,GR,KYO,LG,STD AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
GX81,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44605-22021 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44608-32020 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44606-12520 |
GX81,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44608-32020 |
GX81,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44606-12520 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22700 |
GX81,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44633-28130 |
GX81,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44633-28130 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD JKC |
1 | ||
| 44635-28120 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44635-28120 |
GX81,SX80,YX80..GL,GR,LG,STD AISIN |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44637-32040 |
GX81,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
GX81,LX80,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44645-22020 |
GX81,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-32020 |
GX81,SX80,YX80..GL,GR,LG,STD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
GX81,LX80,SX80,YX80 |
1 | ||
| 44785-32010 |
GX81,SX80,YX80 |
1 | ||
| 44785-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

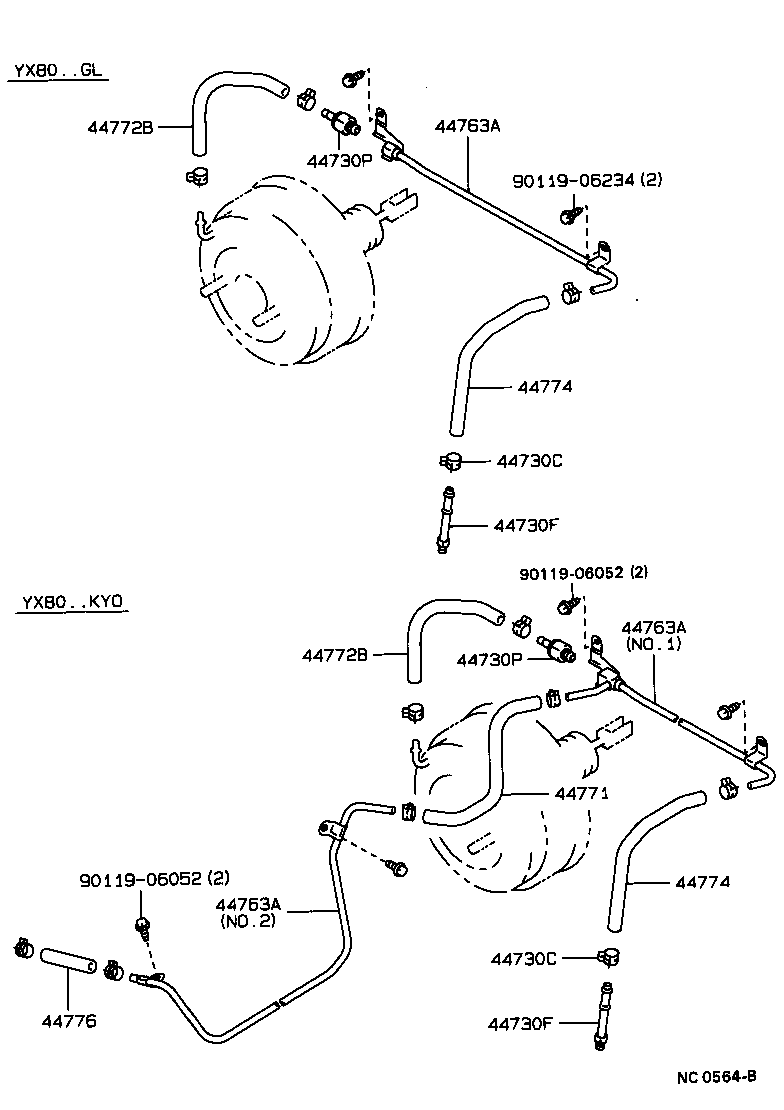

ILLUST NO. 4 OF 4(8808- )YX80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
GX81,JZX81,LX80,MX83,SX80,YX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,DSL,HTWC,LPG,TD,TWC,TWT) |
4 | ||
| 90467-16002 |
GX81,SX80,YX80..GD,GL,GR |
4 | ||
| 90467-16002 |
GX81,LX80,SX80,YX80..GD,GL,GR |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
GX81,JZX81,LX80,MX83,SX80,YX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,DSL,HTWC,LPG,TD,TWC,TWT) |
4 | ||
| 90467-16002 |
GX81,SX80,YX80..GD,GL,GR |
4 | ||
| 90467-16002 |
GX81,LX80,SX80,YX80..GD,GL,GR |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
SX80,YX80..CI,LPG |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
SX80,YX80..CI,LPG |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-22120 |
GX81,SX80,YX80..GL,GR,GT,LG,STD |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-22120 |
GX81,SX80,YX80..GL,GR,GT,LG,STD |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-22160 |
GX81,YX80..GL,LG |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-22160 |
GX81,YX80..GL,LG |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-22160 |
GX81,YX80..GL,LG |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22220 |
GX81,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22220 |
GX81,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-22180 |
YX80 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-22180 |
YX80 |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90119-06234 | ||||
