YX80-AEMNP (1988)
Toyota Mark 2
Production
Aug 1988
-
Dec 1995
Engine
3YP
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3YP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

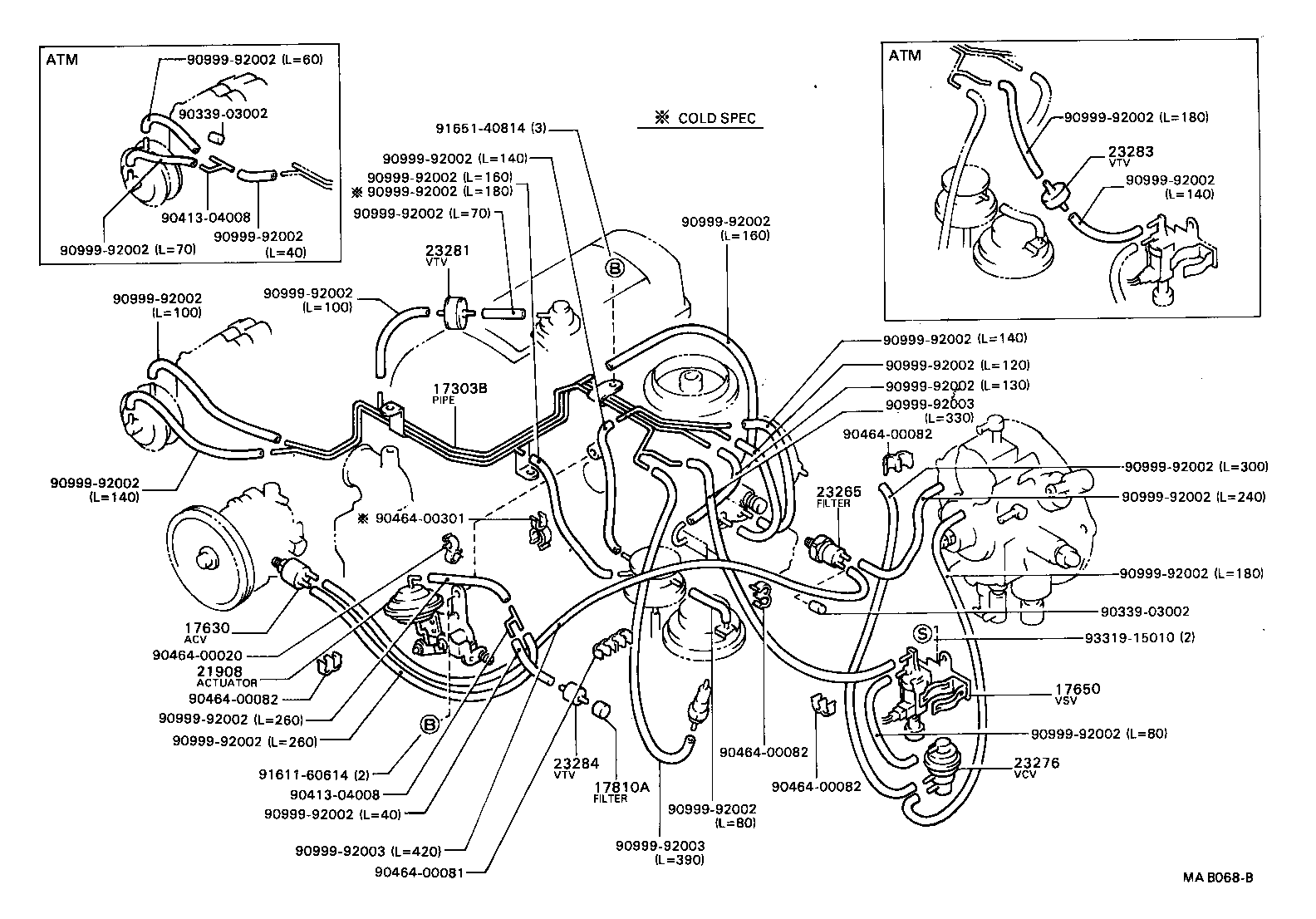

(8808-9302)3YP ; (9302-9305)3YP..KYO
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-73070 |
3YP..YX80 |
1 | ||
| 17303-73071 |
3YP..YX80 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15030 |
3YP..YX80 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30050 |
3YP..YX80 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
3YP..YX80 |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-72010 |
3YP..YX80 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
3YP..YX80..5F..GL |
1 | ||
| 90917-11022 |
3YP..YX80..5F..GL |
1 | ||
| 90917-11029 |
3YP..YX80 |
1 | ||
| 90917-11029 |
3YP..YX80 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03142 |
3YP..YX80 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01084 |
3YP..YX80 |
1 | ||
| 90925-01027 |
3YP..YX80 |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01041 |
3YP..YX80 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04008 | ||||
| 90464-00020 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00301 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60614 | ||||
| 91651-40814 | ||||
| 93319-15010 | ||||

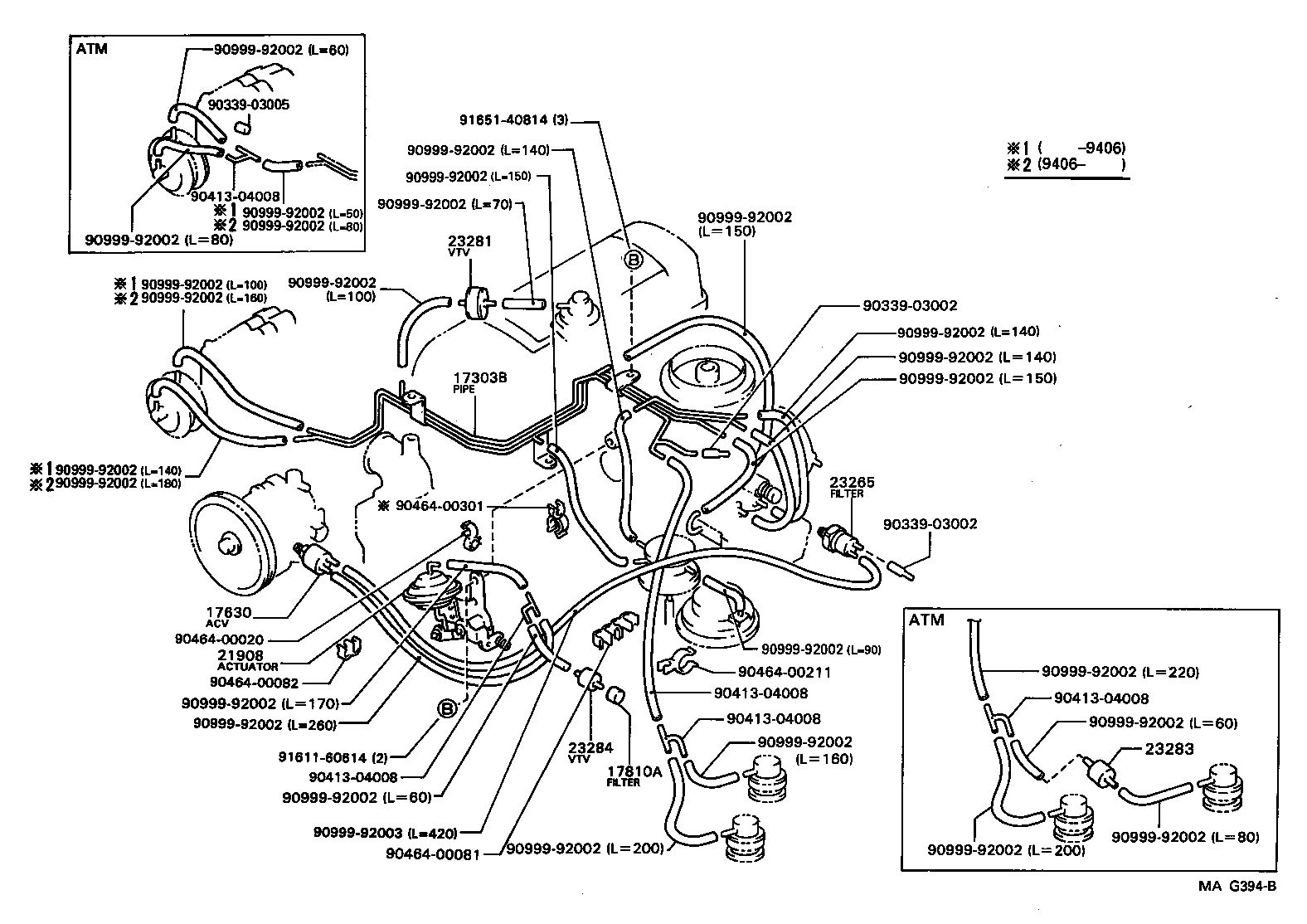

(9302- )3YP..GL ; (9305- )3YP..KYO
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-73070 |
3YP..YX80 |
1 | ||
| 17303-73071 |
3YP..YX80 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15030 |
3YP..YX80 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06007 |
3YP..YX80 |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-72010 |
3YP..YX80 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
3YP..YX80..5F..GL |
1 | ||
| 90917-11022 |
3YP..YX80..5F..GL |
1 | ||
| 90917-11029 |
3YP..YX80 |
1 | ||
| 90917-11029 |
3YP..YX80 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01084 |
3YP..YX80 |
1 | ||
| 90925-01027 |
3YP..YX80 |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01041 |
3YP..YX80 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90339-03005 | ||||
| 90413-04008 | ||||
| 90464-00020 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00211 | ||||
| 90464-00301 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91611-60614 | ||||
| 91651-40814 | ||||
