YX80-AEHNP (1988)
Toyota Mark 2
Production
Aug 1988
-
Feb 1993
Engine
3YP
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

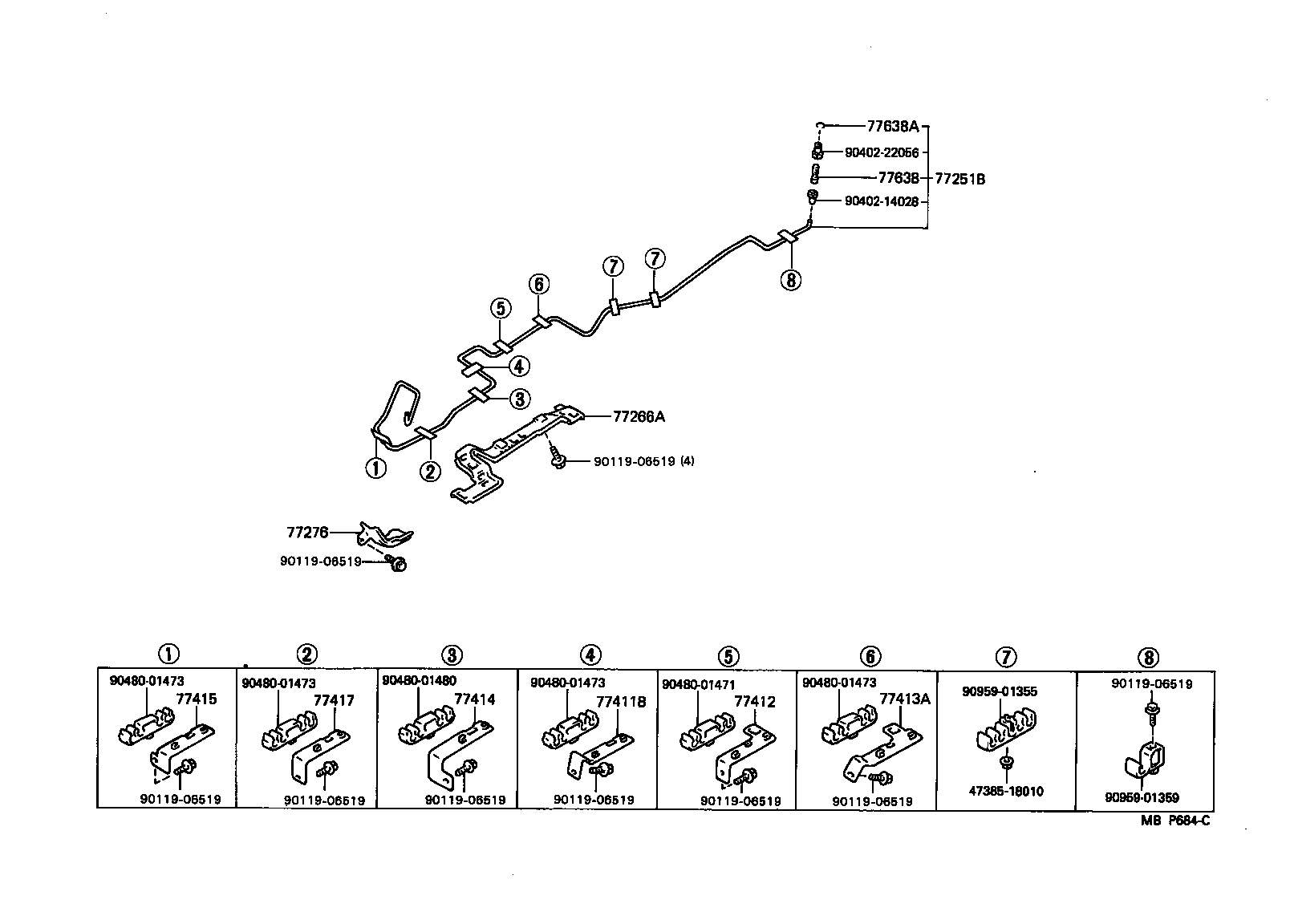

ILLUST NO. 2 OF 2(8808- )YX80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-22440 |
YX80 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-22060 |
SX80,YX80 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22060 |
SX80,YX80 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-22010 |
SX80,YX80 |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77638 - SLEEVE, TANK VALVE JOINT | ||||
| 77638-20011 |
YX80 |
1 | ||
| 77638A - RING, O (FOR TANK VALVE JOINT SLEEVE) | ||||
| 96712-24011 |
YX80 |
1 | ||
| Common parts | ||||
| 47385-18010 | ||||
| 90119-06519 | ||||
| 90402-14028 | ||||
| 90402-22056 | ||||
| 90480-01471 | ||||
| 90480-01473 | ||||
| 90480-01480 | ||||
| 90959-01355 | ||||
| 90959-01359 | ||||

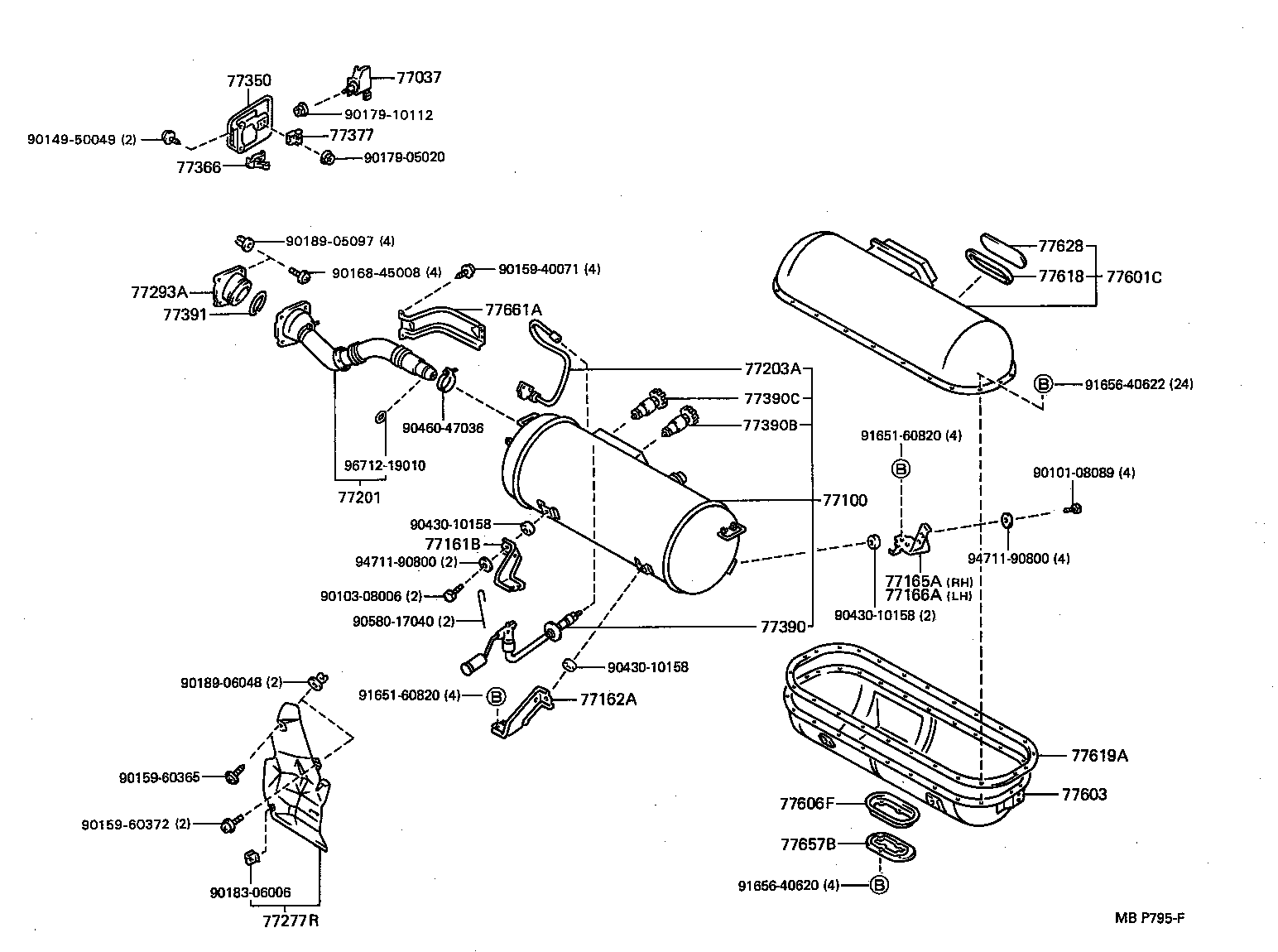

ILLUST NO. 1 OF 2(8808-8908)YX80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-22040 |
YX80 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-22371 |
YX80 |
1 | ||
| 77001-22400 |
YX80 |
1 | ||
| 77001-22401 |
YX80 |
1 | ||
| 77161B - BRACKET, FUEL TANK MOUNTING, FRONT RH | ||||
| 77161-22040 |
YX80 |
1 | ||
| 77161-22030 |
YX80 |
1 | ||
| 77162A - BRACKET, FUEL TANK MOUNTING, FRONT LH | ||||
| 77162-22040 |
YX80 |
1 | ||
| 77162-22030 |
YX80 |
1 | ||
| 77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH | ||||
| 77165-22040 |
YX80 |
1 | ||
| 77165-22030 |
YX80 |
1 | ||
| 77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH | ||||
| 77166-22040 |
YX80 |
1 | ||
| 77166-22030 |
YX80 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22260 |
YX80 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-22040 |
YX80 |
1 | ||
| 77203-22030 |
YX80 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-22080 |
YX80 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GX81,LX80,SX80,YX80 |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-22030 |
YX80 |
1 | ||
| 77390-22020 |
YX80 |
1 | ||
| 77390B - VALVE, FUEL TANK OUTLET | ||||
| 90977-01019 |
YX80 |
1 | ||
| 77390C - VALVE, FUEL TANK INLET | ||||
| 90977-01016 |
YX80 |
1 | ||
| 90977-01028 |
YX80 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX81,LX80,SX80,YX80 |
1 | ||
| 77601C - COVER SUB-ASSY, FUEL TANK, UPPER | ||||
| 77601-22080 |
YX80 |
1 | ||
| 77603 - CASE SUB-ASSY, FUEL TANK, LOWER | ||||
| 77603-22050 |
YX80 |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-20030 |
YX80 |
1 | ||
| 77618 - GASKET, CASE WINDOW | ||||
| 77618-30010 |
YX80 |
1 | ||
| 77619A - GASKET, CASE COVER | ||||
| 77619-22030 |
YX80 |
1 | ||
| 77628 - GLASS, CASE COVER WINDOW | ||||
| 77628-30010 |
YX80 |
1 | ||
| 77657B - SEAL, FUEL TANK COVER VENT CASE, UPPER | ||||
| 77657-20020 |
YX80 |
1 | ||
| 77661A - COVER, FUEL TANK FILLER HOSE | ||||
| 77661-22050 |
YX80 |
1 | ||
| 77661-22060 |
YX80 |
1 | ||
| Common parts | ||||
| 90101-08089 | ||||
| 90103-08006 | ||||
| 90149-50049 | ||||
| 90159-40071 | ||||
| 90159-60365 | ||||
| 90159-60372 | ||||
| 90168-45008 | ||||
| 90179-05020 | ||||
| 90179-10112 | ||||
| 90183-06006 | ||||
| 90189-05097 | ||||
| 90189-06048 | ||||
| 90430-10158 | ||||
| 90460-47036 | ||||
| 90580-17040 | ||||
| 91651-60820 | ||||
| 91656-40620 | ||||
| 91656-40622 | ||||
| 94711-90800 | ||||
| 96712-19010 | ||||

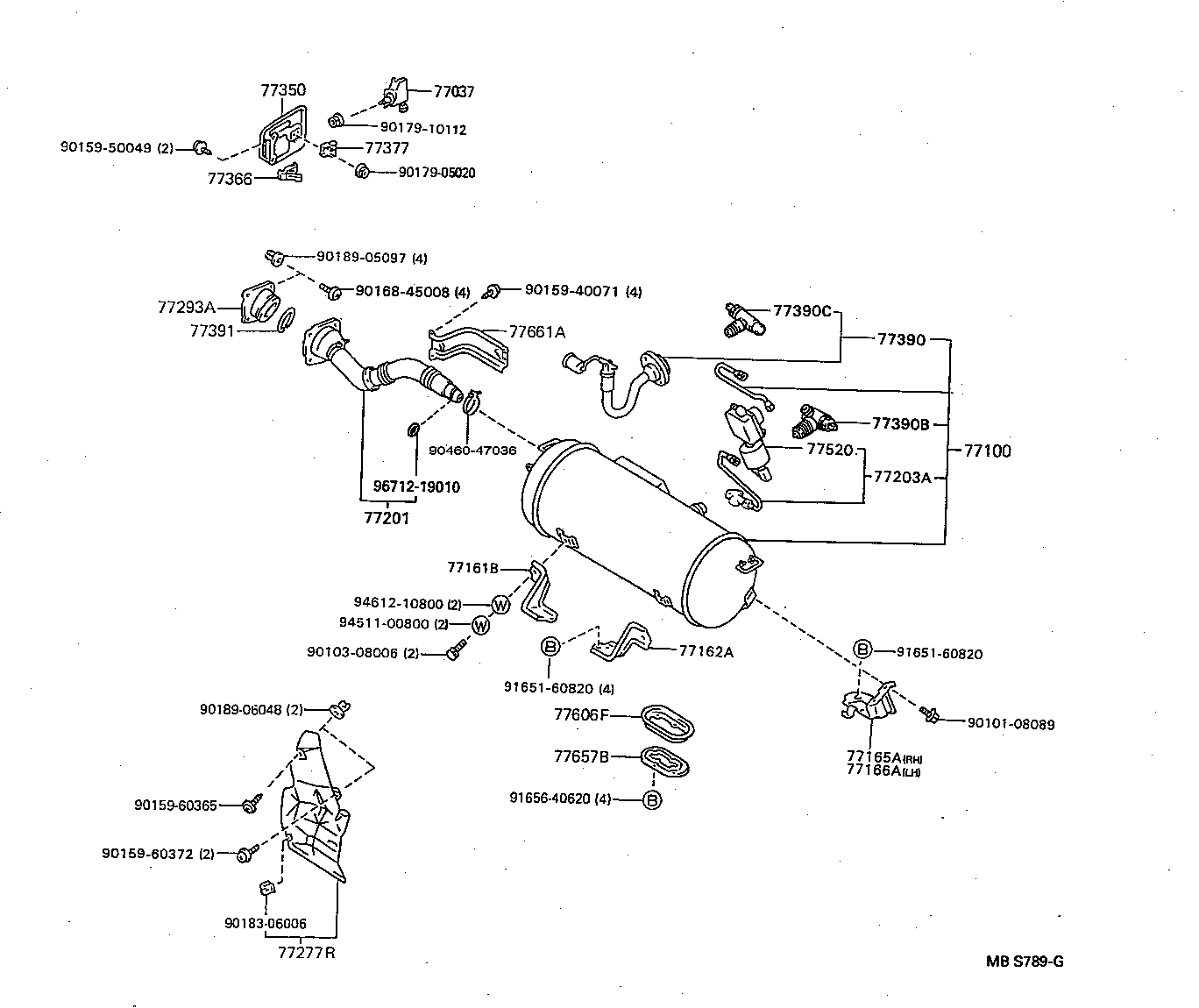

(8908-9302)YX80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-22040 |
YX80 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-22371 |
YX80 |
1 | ||
| 77001-22400 |
YX80 |
1 | ||
| 77001-22401 |
YX80 |
1 | ||
| 77161B - BRACKET, FUEL TANK MOUNTING, FRONT RH | ||||
| 77161-22040 |
YX80 |
1 | ||
| 77161-22030 |
YX80 |
1 | ||
| 77162A - BRACKET, FUEL TANK MOUNTING, FRONT LH | ||||
| 77162-22040 |
YX80 |
1 | ||
| 77162-22030 |
YX80 |
1 | ||
| 77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH | ||||
| 77165-22040 |
YX80 |
1 | ||
| 77165-22030 |
YX80 |
1 | ||
| 77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH | ||||
| 77166-22040 |
YX80 |
1 | ||
| 77166-22030 |
YX80 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22260 |
YX80 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-22040 |
YX80 |
1 | ||
| 77203-22030 |
YX80 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-22080 |
YX80 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-22100 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GX81,LX80,SX80,YX80 |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-22030 |
YX80 |
1 | ||
| 77390-22020 |
YX80 |
1 | ||
| 77390B - VALVE, FUEL TANK OUTLET | ||||
| 90977-01019 |
YX80 |
1 | ||
| 77390C - VALVE, FUEL TANK INLET | ||||
| 90977-01016 |
YX80 |
1 | ||
| 90977-01028 |
YX80 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX81,LX80,SX80,YX80 |
1 | ||
| 77520 - VALVE ASSY, SOLENOID LPG EMERGENCY | ||||
| 77520-22010 |
YX80 |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-20030 |
YX80 |
1 | ||
| 77657B - SEAL, FUEL TANK COVER VENT CASE, UPPER | ||||
| 77657-20020 |
YX80 |
1 | ||
| 77661A - COVER, FUEL TANK FILLER HOSE | ||||
| 77661-22050 |
YX80 |
1 | ||
| 77661-22060 |
YX80 |
1 | ||
| Common parts | ||||
| 90101-08089 | ||||
| 90103-08006 | ||||
| 90159-40071 | ||||
| 90159-50049 | ||||
| 90159-60365 | ||||
| 90159-60372 | ||||
| 90168-45008 | ||||
| 90179-05020 | ||||
| 90179-10112 | ||||
| 90183-06006 | ||||
| 90189-05097 | ||||
| 90189-06048 | ||||
| 90460-47036 | ||||
| 91651-60820 | ||||
| 91656-40620 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| 96712-19010 | ||||
