YX72-XEMNP (1986)

Toyota Mark 2

Production Aug 1986 - Aug 1988
Engine 3YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

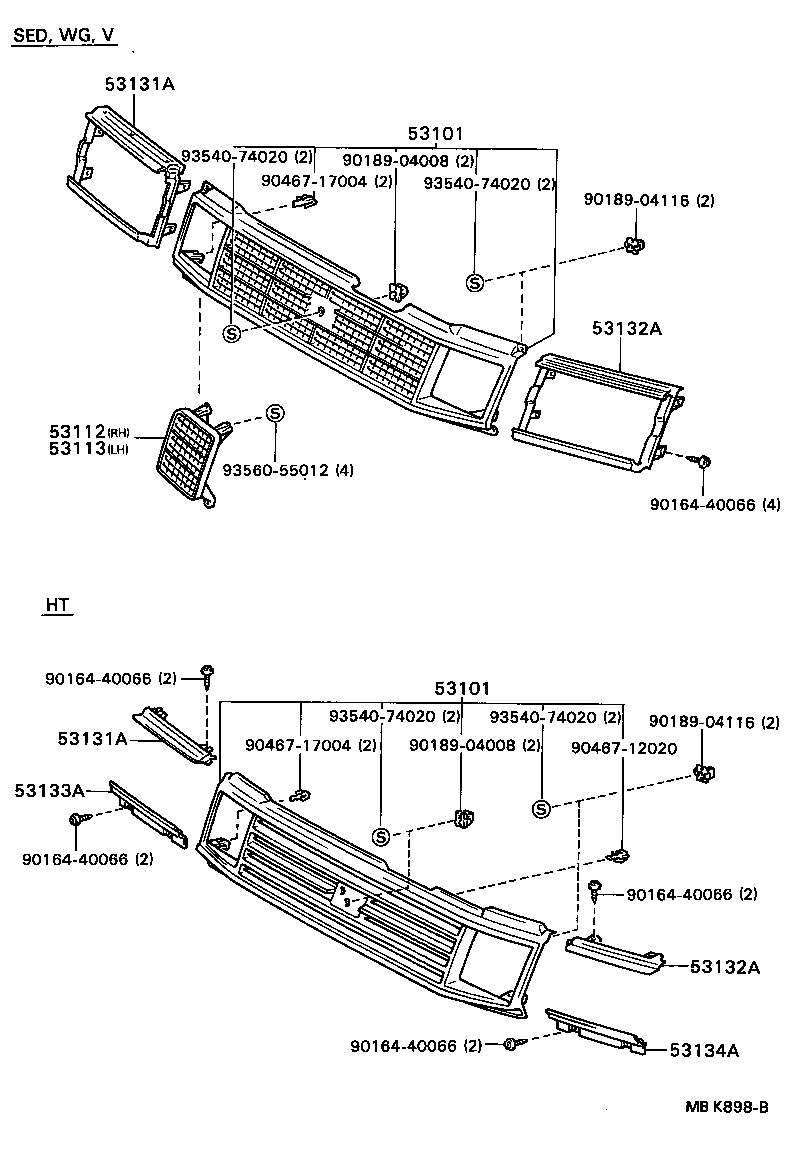

diagram 3354074020 53101 53101 53112 53113 53131A 53131A 53132A 53132A 53133A 53134A 9016440066 9016440066 9016440066 9016440066 9016440066 9018904008 9018904008 9018904116 9018904116 9046712020 9046717004 9046717004 9354074020 9354074020 9354074020 9356055012
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-22100

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
53101-22140

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-22100

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
53101-22140

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
53131A - DOOR, HEADLAMP, RH
53131-22240

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
53131-22210

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
53131A - DOOR, HEADLAMP, RH
53131-22240

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
53131-22210

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
53132A - DOOR, HEADLAMP, LH
53132-22190

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
53132-22220

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
53132A - DOOR, HEADLAMP, LH
53132-22190

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
53132-22220

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
Common parts
33540-74020
90164-40066
90189-04008
90189-04116
90467-12020
90467-17004
93540-74020
93560-55012
