YX72-XEHNP (1986)

Toyota Mark 2

Production Aug 1986 - Aug 1988
Engine 3YPU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

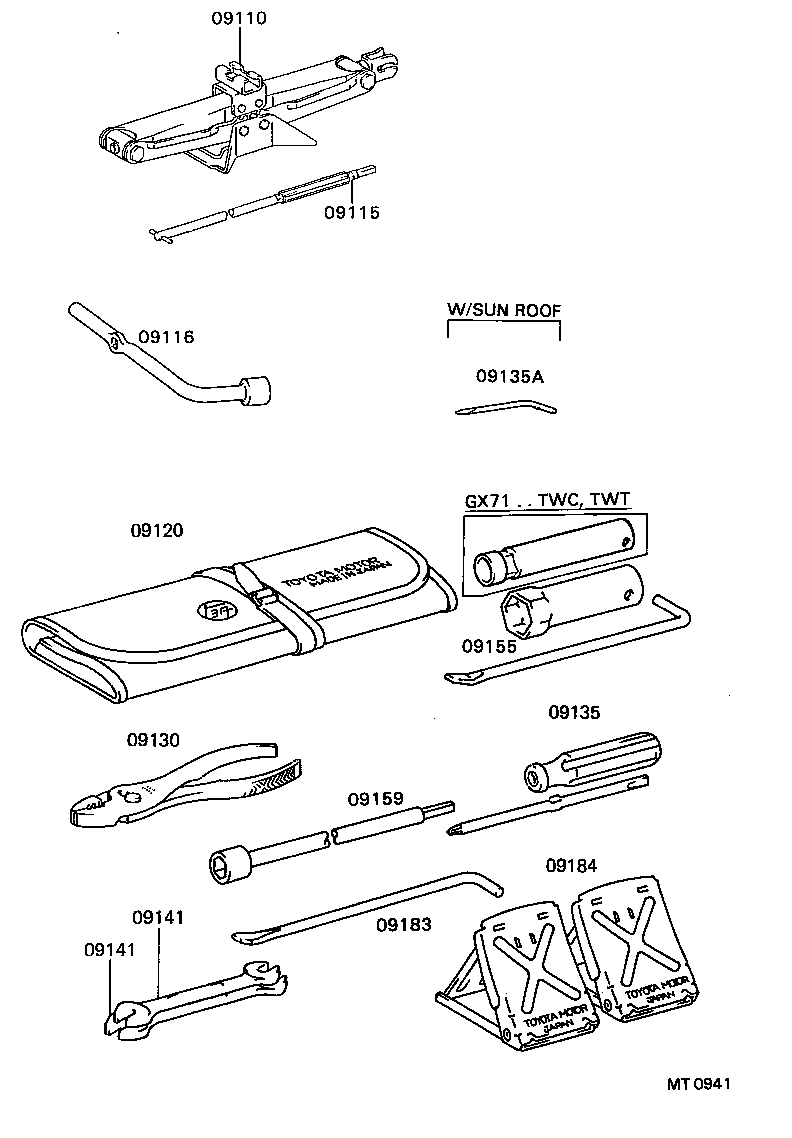

Click highlighted areas on diagram

diagram 09110 09115 09116 09120 09130 09135 09135A 09141 09141 09155 09159 09183 09184
Part # Description Qty Price
09110 - JACK ASSY
09118-22010

GX7#,LX7#,MX71,SX70,YX7#

 1
09141 - SPANNER
99914-11214

GX7#,LX7#,SX70,YX7#

12 X 14,12X14

 1
99914-11417

GX7#,LX7#,MX71,SX70,YX7#

14 X 17,14X17

 1
99914-11012

GX7#,LX7#,MX71,SX70,YX7#

10 X 12,10X12

 1
09141 - SPANNER
99914-11214

GX7#,LX7#,SX70,YX7#

12 X 14,12X14

 1
99914-11417

GX7#,LX7#,MX71,SX70,YX7#

14 X 17,14X17

 1
99914-11012

GX7#,LX7#,MX71,SX70,YX7#

10 X 12,10X12

 1
09155 - WRENCH, SPARK PLUG
09155-41020

GX7#,MX71,SX70,YX72,76..CBR,EFI,LPG,TBO

 1
09159 - WRENCH, SPARE WHEEL CARRIER
09159-22010

YX70,72

 1
