YX70Y-XEMRP (1984)
Toyota Mark 2

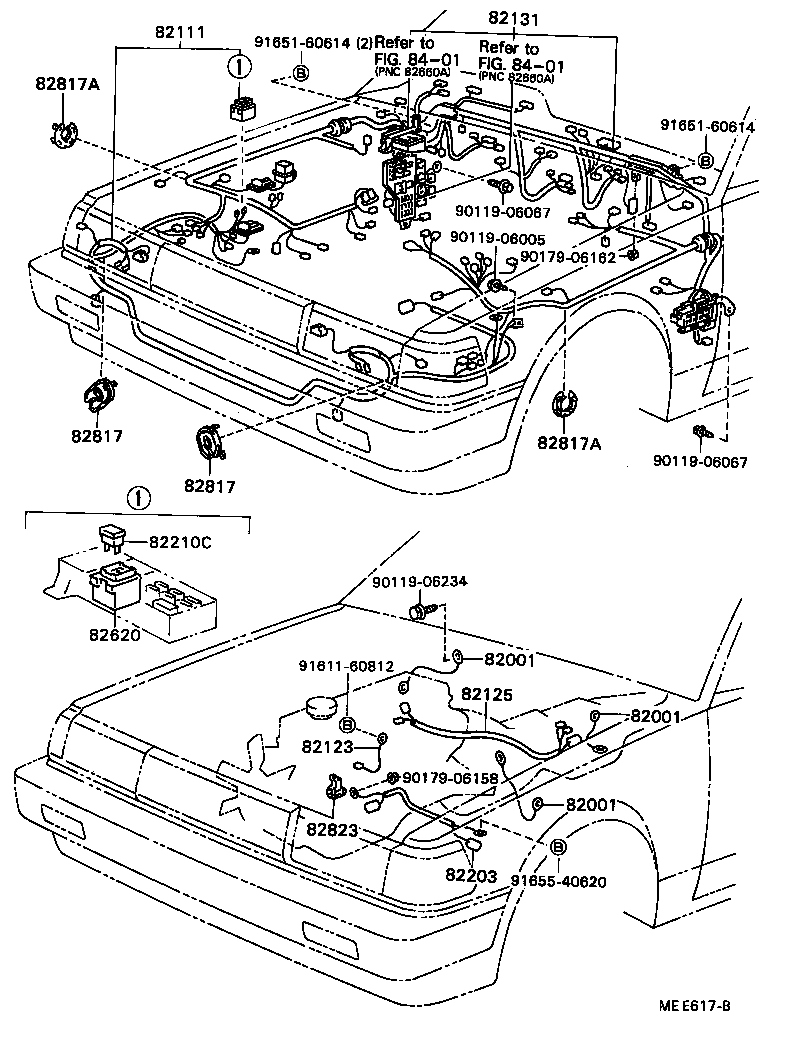

ILLUST NO. 1 OF 4(8408- )YX7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07252 |
GX7#,MX71,SX70,YX7# MISSION-MEMBER |
1 | ||
| 90980-07119 |
GX7#,MX71,SX70,YX7# CLUTCH-MEMBER |
1 | ||
| 90980-07200 |
GX71,MX71,SX70,YX7#..CBR,LPG,TBO,TWC ENGINE-COWL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07252 |
GX7#,MX71,SX70,YX7# MISSION-MEMBER |
1 | ||
| 90980-07119 |
GX7#,MX71,SX70,YX7# CLUTCH-MEMBER |
1 | ||
| 90980-07200 |
GX71,MX71,SX70,YX7#..CBR,LPG,TBO,TWC ENGINE-COWL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07252 |
GX7#,MX71,SX70,YX7# MISSION-MEMBER |
1 | ||
| 90980-07119 |
GX7#,MX71,SX70,YX7# CLUTCH-MEMBER |
1 | ||
| 90980-07200 |
GX71,MX71,SX70,YX7#..CBR,LPG,TBO,TWC ENGINE-COWL |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-22490 |
YX70 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-22050 |
YX7#..5F |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-22640 |
YX70 |
1 | ||
| 82131-22641 |
YX70 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-22010 |
YX70 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
GX7#,LX7#,MX71,SX70,YX7# 80A,ｵｽ端子,黒,80A |
2 | ||
| 90982-08189 |
GX7#,LX7#,MX71,SX70,YX7# 40A,ﾒｽ端子,緑,40A |
1 | ||
| 90982-08188 |
GX7#,LX7#,MX71,SX70,YX7# 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A,AM2 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82602-22150 |
GX71,LX7#,MX71,SX70,YX7#..CBR,DSL,LPG,TBO,TD,TWC,TWT |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22420 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22420 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90119-06234 | ||||
| 90179-06158 | ||||
| 90179-06162 | ||||
| 91611-60812 | ||||
| 91651-60614 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

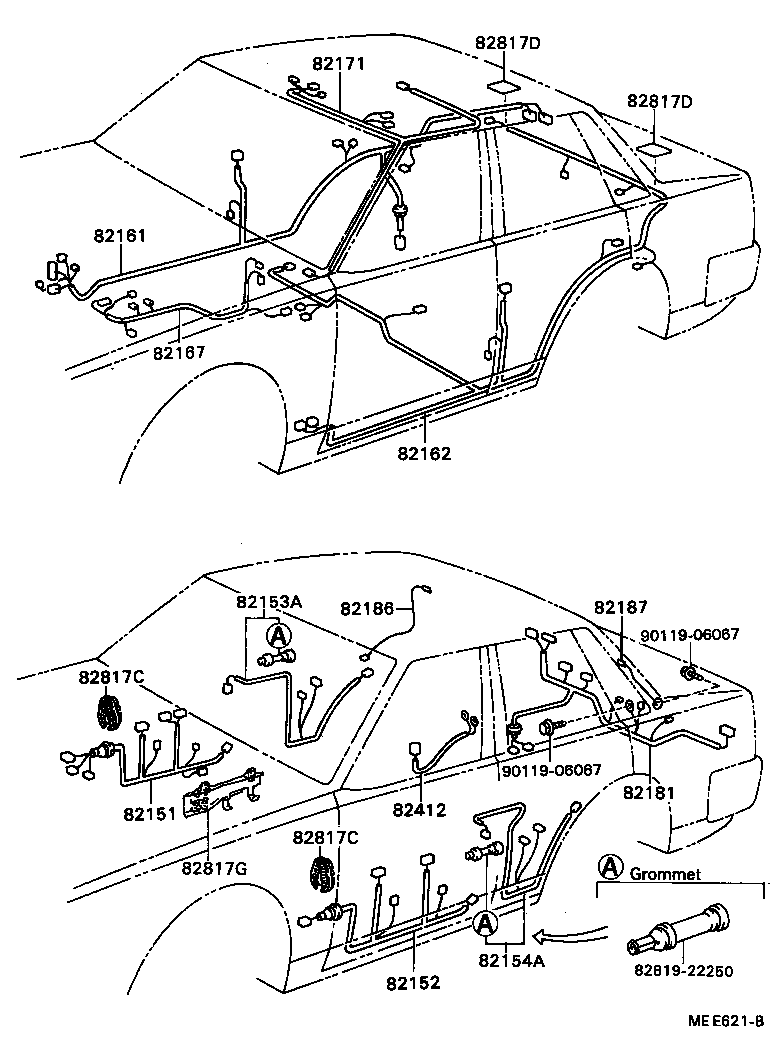

ILLUST NO. 2 OF 4(8408- )GX71,LX70,MX71,SX70,YX70,72
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-22310 |
YX70 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-22130 |
YX70;LX70,SX70..KYO,STD |
1 | ||
| 82162-22131 |
YX70 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-22050 |
YX70;GX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,KYO,LG) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-22030 |
YX70 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-22010 |
LX70,SX70,YX70,72..KYO,STD |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-22010 |
LX70,SX70,YX70,72..KYO,STD |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-22090 |
YX70,72 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-22360 |
GX71,LX70,MX71,SX70,YX70 W/O DOOR WIRE |
2 | ||
| 82817-22360 |
GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD W/O DOOR WIRE |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-22360 |
GX71,LX70,MX71,SX70,YX70 W/O DOOR WIRE |
2 | ||
| 82817-22360 |
GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD W/O DOOR WIRE |
2 | ||
| Common parts | ||||
| 82819-22250 | ||||
| 90119-06067 | ||||

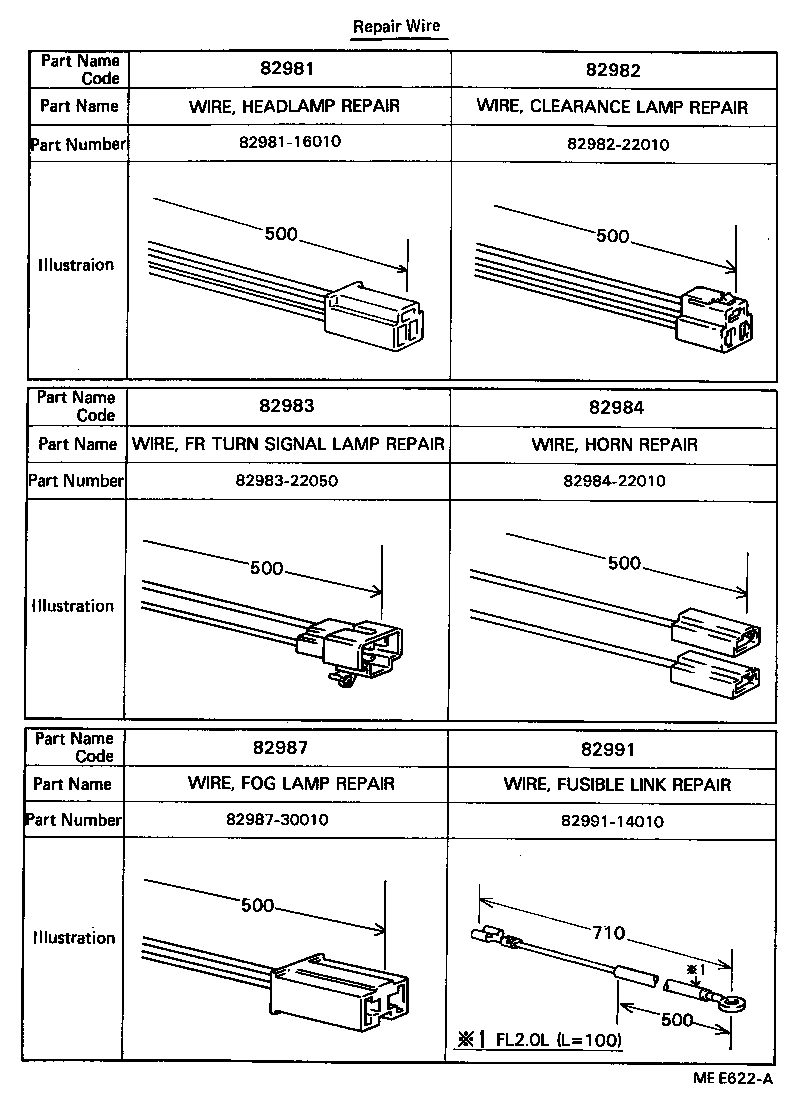

ILLUST NO. 3 OF 4(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22050 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-14010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-22010 | ||||
| 82983-22050 | ||||
| 82984-22010 | ||||
| 82987-30010 | ||||
| 82991-14010 | ||||
ILLUST NO. 4 OF 4(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-14560 | ||||
| 82711-22220 | ||||
| 82711-22300 | ||||
| 82711-22350 | ||||
| 82711-22490 | ||||
| 82711-22620 | ||||
| 82711-22640 | ||||
| 82711-22670 | ||||
| 82711-22720 | ||||
| 82711-22820 | ||||
| 82711-22860 | ||||
| 82711-22870 | ||||
| 82711-24070 | ||||
| 82711-24090 | ||||
| 82711-2A010 | ||||
| 82711-2A020 | ||||
| 82711-2A090 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30360 | ||||
| 82711-30380 | ||||
| 82711-30550 | ||||
ILLUST NO. 4 OF 4(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14100 | ||||
| 82711-14570 | ||||
| 82711-16180 | ||||
| 82711-22270 | ||||
| 82711-22620 | ||||
| 82711-2A040 | ||||
| 82711-2A050 | ||||
| 82711-2A110 | ||||
| 82711-2A130 | ||||
| 82711-30590 | ||||
| 82711-30640 | ||||
| 82711-30780 | ||||
| 82819-22160 | ||||
| 82819-22220 | ||||
| 90461-08183 | ||||
| 90461-08200 | ||||
| 90461-08312 | ||||
| 90461-08483 | ||||
| 90461-08514 | ||||
| 90463-10337 | ||||
| 90463-12014 | ||||
| 90464-00052 | ||||
| 90464-00137 | ||||
| 90464-00166 | ||||
| 90950-01252 | ||||
ILLUST NO. 4 OF 4(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-14120 | ||||
| 82711-14620 | ||||
| 82711-1A210 | ||||
| 82711-22710 | ||||
| 82711-22880 | ||||
| 82711-24240 | ||||
| 82711-2A170 | ||||
| 82711-2A210 | ||||
| 82711-2A480 | ||||
| 90463-12570 | ||||
