YX70Y-XEMRP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)YX70..KYO

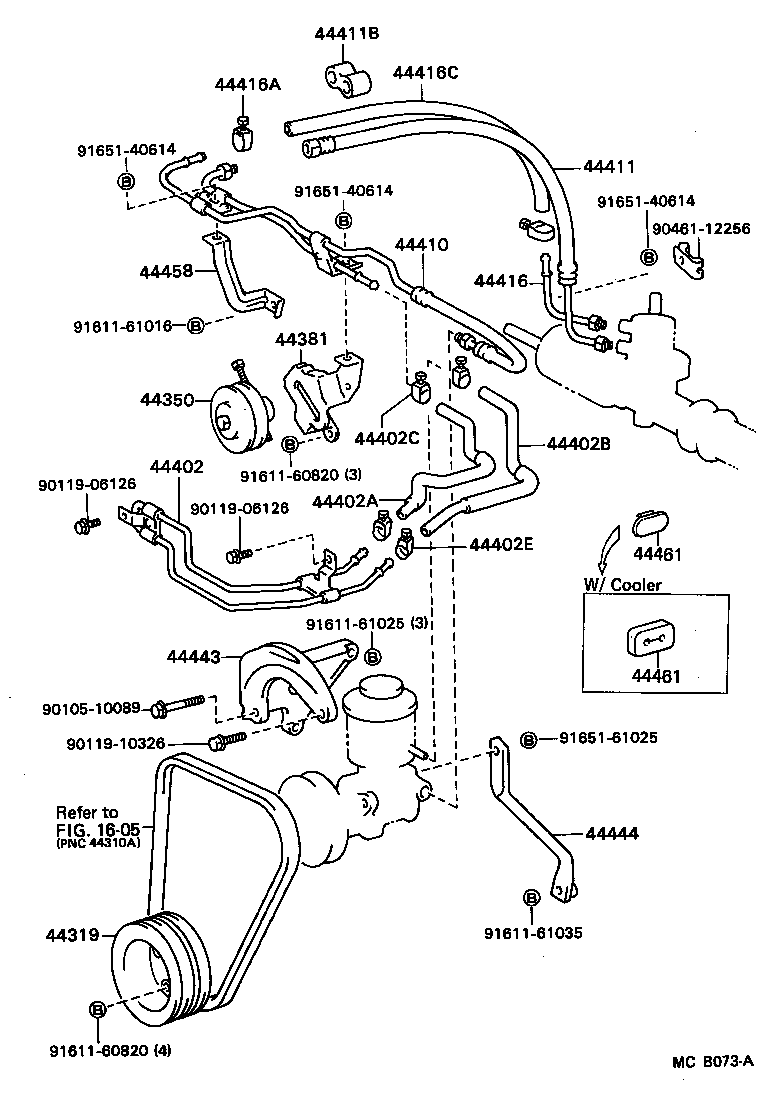

Click highlighted areas on diagram

diagram 1605 44319 44350 44381 44402 44402A 44402B 44402C 44402E 44410 44411 44411B 44416 44416A 44416C 44443 44444 44458 44461 44461 9010510089 9011906126 9011906126 9011910326 9046112256 9161160820 9161160820 9161161016 9161161025 9161161035 9165140614 9165140614 9165140614 9165161025
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-20010

YX7#

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20040

YX7#

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20010

YX7#

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22130

YX70..KYO

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-22240

YX70,72..KYO

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-22250

YX70,72..KYO

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

SX70,YX70,72..KYO

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

SX70,YX70,72..KYO

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-22260

YX70..KYO

 1
44411 - HOSE, PRESSURE FEED
44411-22420

YX70,72..KYO

 1
44411B - CUSHION(FOR PRESSURE FEED HOSE)
90540-18002

YX7#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22200

YX7#

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

GX7#,LX7#,MX71,YX7#

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
44412-22230

YX7#

 1
44443 - BRACKET, PUMP
44443-28011

YX70,76

 1
44444 - STAY, PUMP, REAR
44444-27010

YX7#

 1
44458 - BRACKET, TUBE SUPPORT, NO.2
44458-22110

YX70,76

W/COOLER

 1
44458-30030

YX7#

 1
44461 - INSULATOR, TUBE REFRIGERANT
44461-22020

LX70..GR,KYO;LX70..GL..TD;GX71,MX71,SX70,YX70,72..(GD,GT,KYO)..(CBR,LPG,TBO,TWC,TWT)

 2
44461-22010

SX70,YX70,72..KYO

W/COOLER

 1
44461 - INSULATOR, TUBE REFRIGERANT
44461-22020

LX70..GR,KYO;LX70..GL..TD;GX71,MX71,SX70,YX70,72..(GD,GT,KYO)..(CBR,LPG,TBO,TWC,TWT)

 2
44461-22010

SX70,YX70,72..KYO

W/COOLER

 1
Common parts
90105-10089
90119-06126
90119-10326
90461-12256
91611-60820
91611-61016
91611-61025
91611-61035
91651-40614
91651-61025
Linked diagrams
1605
