YX70Y-XEMRP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5F

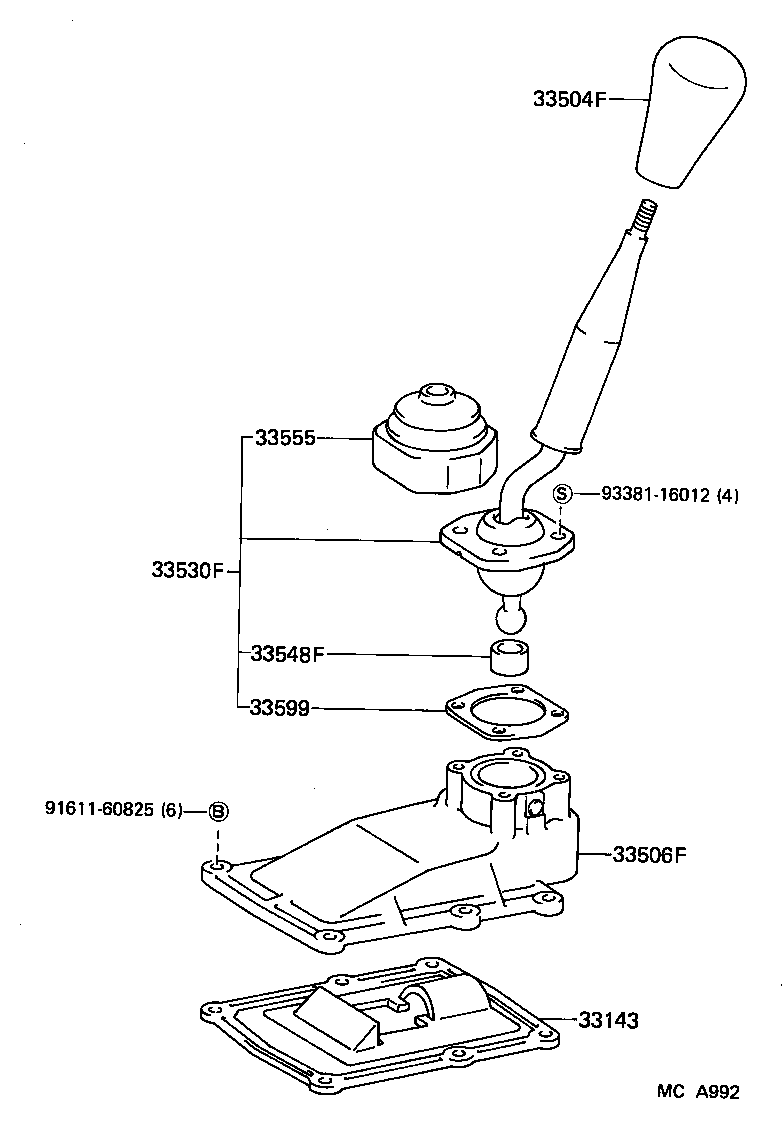

Click highlighted areas on diagram

diagram 33143 33504F 33506F 33530F 33548F 33555 33599 9161160825 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-22020

GX7#,LX7#,SX70,YX7#..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401053

GX7#,LX7#,SX70,YX7#..5F..(CBR,DSL,EFI,LPG,TD)

GRAY,COOL GRAY,TRIM1#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-22080

LX7#,SX70,YX7#..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-22230

LX7#,SX70,YX7#..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

GX7#,LX7#,SX70,YX7#..5F

 1
33555 - BOOT, SHIFT LEVER
33555-22050

GX7#,LX7#,SX70,YX7#..5F

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-22020

GX7#,LX7#,SX70,YX7#..5F

 1
Common parts
91611-60825
93381-16012
