YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

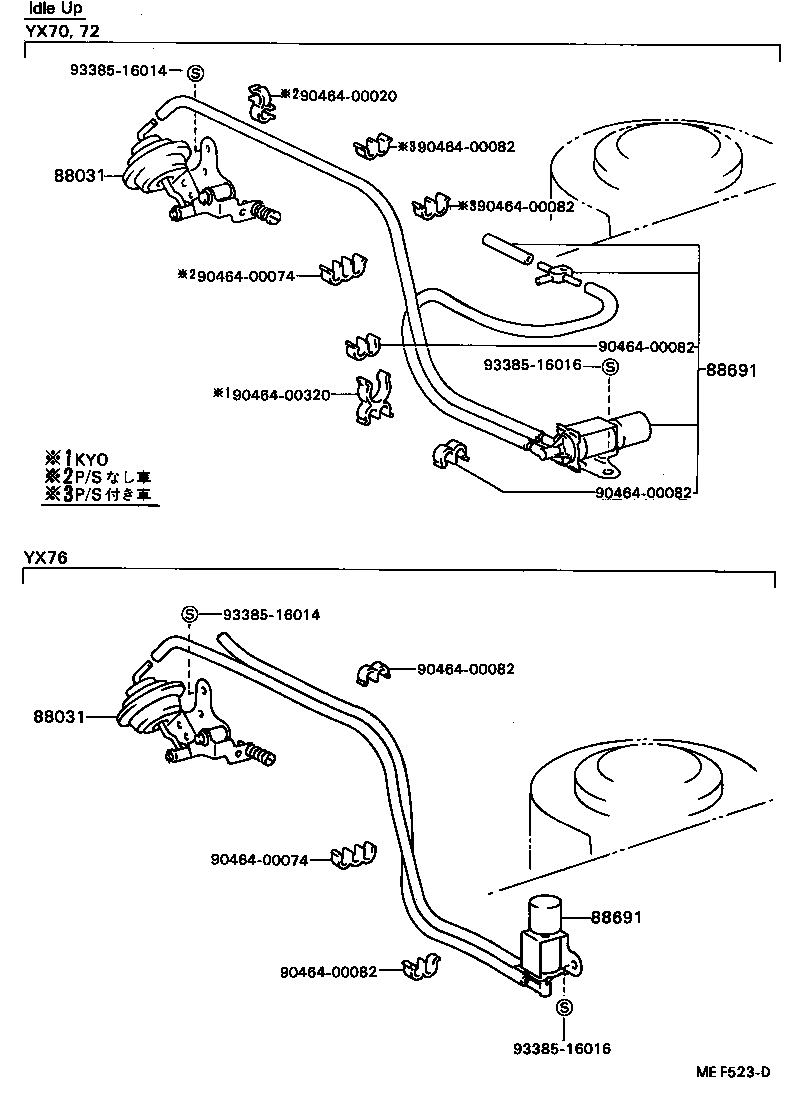

ILLUST NO. 1 OF 2(8408- )YX7#

Click highlighted areas on diagram

diagram 88031 88031 88691 88691 9046400020 9046400074 9046400074 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400320 9338516014 9338516014 9338516016 9338516016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
21908-72010

YX70,72

 1
88031 - ACTUATOR SET, IDLE-UP
21908-72010

YX70,72

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22390

YX70

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22390

YX70

 1
Common parts
90464-00020
90464-00074
90464-00082
90464-00320
93385-16014
93385-16016
