YX70-XEMNP (1984)
Toyota Mark 2

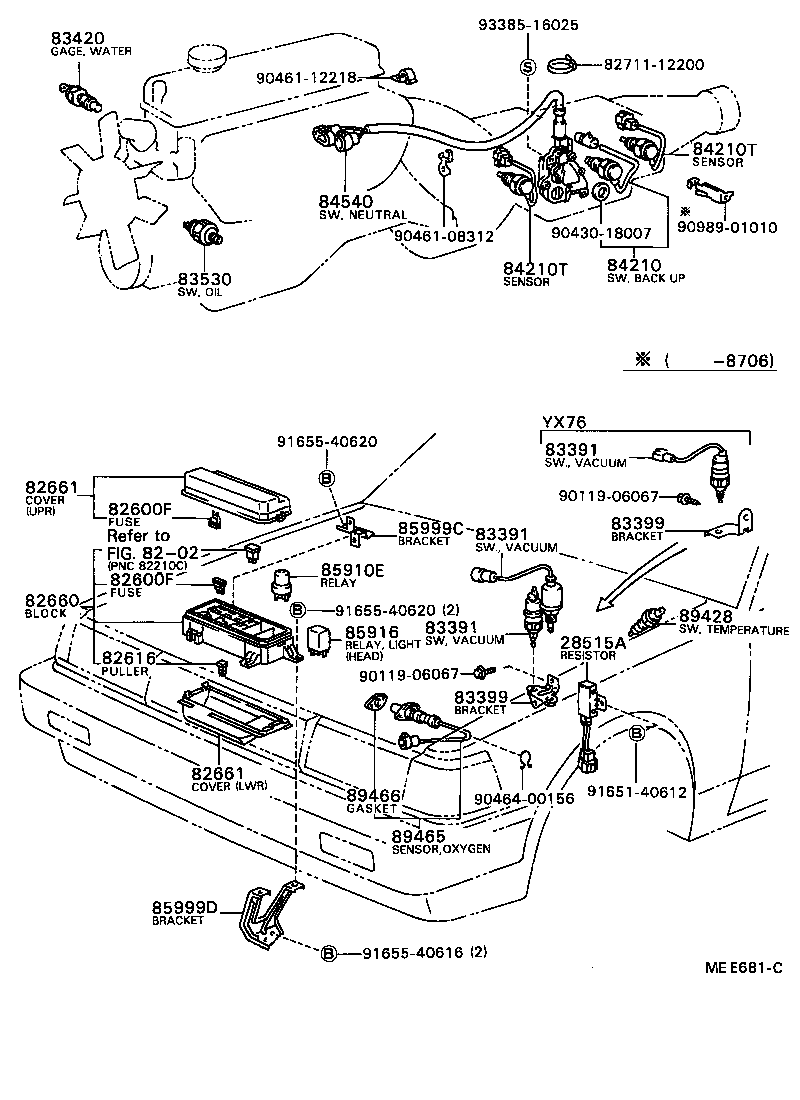

ILLUST NO. 1 OF 7(8408- )YX7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515A - RESISTOR, SOLENOID | ||||
| 28515-41030 |
2YPU..YX70 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX7#,LX7#,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX7#,LX7#,MX71,SX70,YX7# 10A,10A |
3 | ||
| 90982-09005 |
GX7#,LX7#,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 90982-09004 |
GX7#,LX7#,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX7#,LX7#,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX7#,LX7#,MX71,SX70,YX7# 10A,10A |
3 | ||
| 90982-09005 |
GX7#,LX7#,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 90982-09004 |
GX7#,LX7#,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22230 |
GX71,MX71,SX70,YX70 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22110 |
YX7# LWR |
1 | ||
| 82661-22130 |
YX7# UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22110 |
YX7# LWR |
1 | ||
| 82661-22130 |
YX7# UPR |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20030 |
YX70 MARK=100B |
1 | ||
| 83391-22050 |
YX70 MARK=80M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20030 |
YX70 MARK=100B |
1 | ||
| 83391-22050 |
YX70 MARK=80M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-20030 |
YX70 MARK=100B |
1 | ||
| 83391-22050 |
YX70 MARK=80M |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-20110 |
YX70,72 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-20110 |
YX70,72 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
YX7# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
GX7#,LX7#,SX70,YX7#..5F |
1 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-20080 |
YX70..5F |
2 | ||
| 84210T - SENSOR ASSY, SHIFT POINT | ||||
| 84220-20080 |
YX70..5F |
2 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02004 |
YX70..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX7#,LX7#,MX71,SX70,YX7# HEAD |
1 | ||
| 90987-02004 |
GX7#,LX7#,MX71,SX70,YX7# TAIL,DENSO |
1 | ||
| 90987-02002 |
GX7#,LX7#,MX71,SX70,YX7# TAIL,MARUKO |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-22260 |
YX70,72 |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-22270 |
YX70,72 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12030 |
YX70..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29105 |
YX70,72 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
MX71,SX70,YX70,72 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06067 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90464-00156 | ||||
| 90989-01010 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8202 | ||||

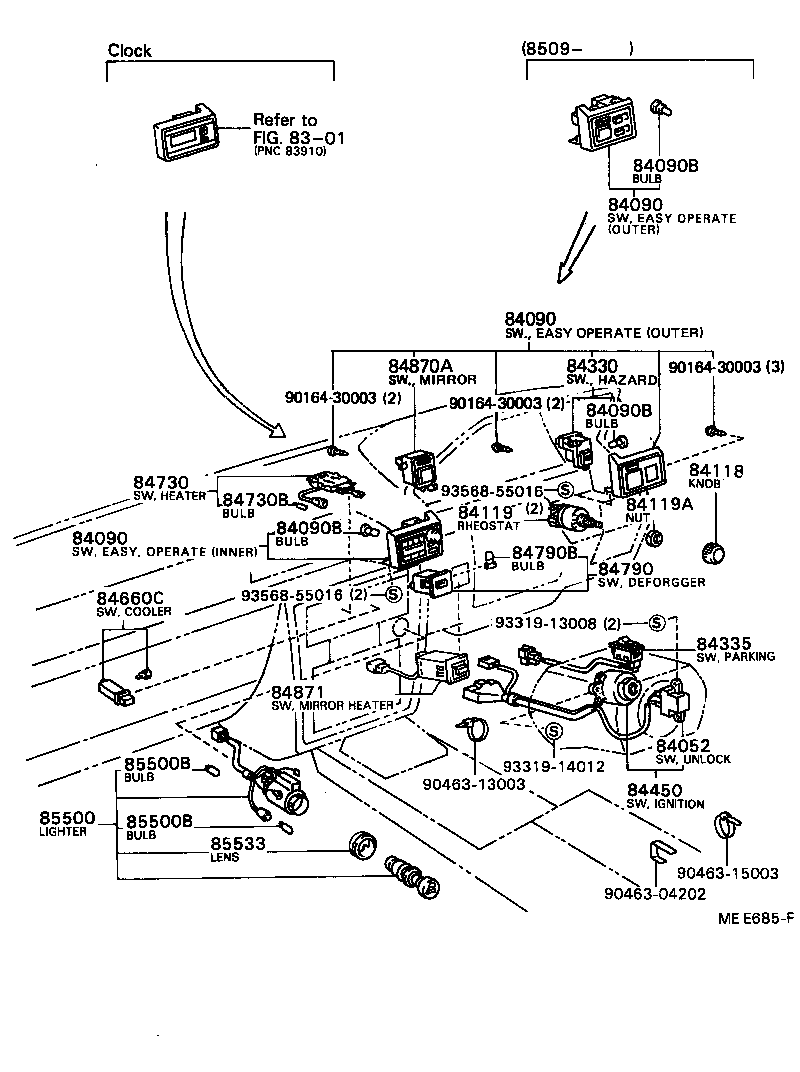

ILLUST NO. 2 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84090-22020 |
GX7#,LX70,MX71,SX70,YX7#..(SED,V,WG)..(GD,GL,GR,LG,LS) OUTER |
1 | ||
| 84090-22010 |
YX70;LX7#,SX70,YX76..DX,KYO,STD OUTER,W/O *RCM |
1 | ||
| 84091-22070 |
GX7#,LX70,MX71,SX70,YX7#..(SED,V,WG)..(GD,GL,GR,LG,LS) OUTER |
1 | ||
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84090-22020 |
GX7#,LX70,MX71,SX70,YX7#..(SED,V,WG)..(GD,GL,GR,LG,LS) OUTER |
1 | ||
| 84090-22010 |
YX70;LX7#,SX70,YX76..DX,KYO,STD OUTER,W/O *RCM |
1 | ||
| 84091-22070 |
GX7#,LX70,MX71,SX70,YX7#..(SED,V,WG)..(GD,GL,GR,LG,LS) OUTER |
1 | ||
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84090-22020 |
GX7#,LX70,MX71,SX70,YX7#..(SED,V,WG)..(GD,GL,GR,LG,LS) OUTER |
1 | ||
| 84090-22010 |
YX70;LX7#,SX70,YX76..DX,KYO,STD OUTER,W/O *RCM |
1 | ||
| 84091-22070 |
GX7#,LX70,MX71,SX70,YX7#..(SED,V,WG)..(GD,GL,GR,LG,LS) OUTER |
1 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX7#,LX7#,MX71,SX70,YX7# 12V 1.1W(BASE:GRAY) |
2 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX7#,LX7#,MX71,SX70,YX7# 12V 1.1W(BASE:GRAY) |
2 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX7#,LX7#,MX71,SX70,YX7# 12V 1.1W(BASE:GRAY) |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22070 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-22160 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10090 |
GX71,LX70,YX70..GL,GR,KYO,LG,LS |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22070 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22080 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22110 |
GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD 12V 1.12W,12V 1.1W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22050 |
GX7#,LX70,MX71,SX70,YX7#..GD,GL,GR,LG,LS |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22130 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX7#,LX7#,MX71,SX70,YX7# 14V 1.4W,12V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX7#,LX7#,MX71,SX70,YX7# 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| Common parts | ||||
| 90164-30003 | ||||
| 90463-04202 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8301 | ||||

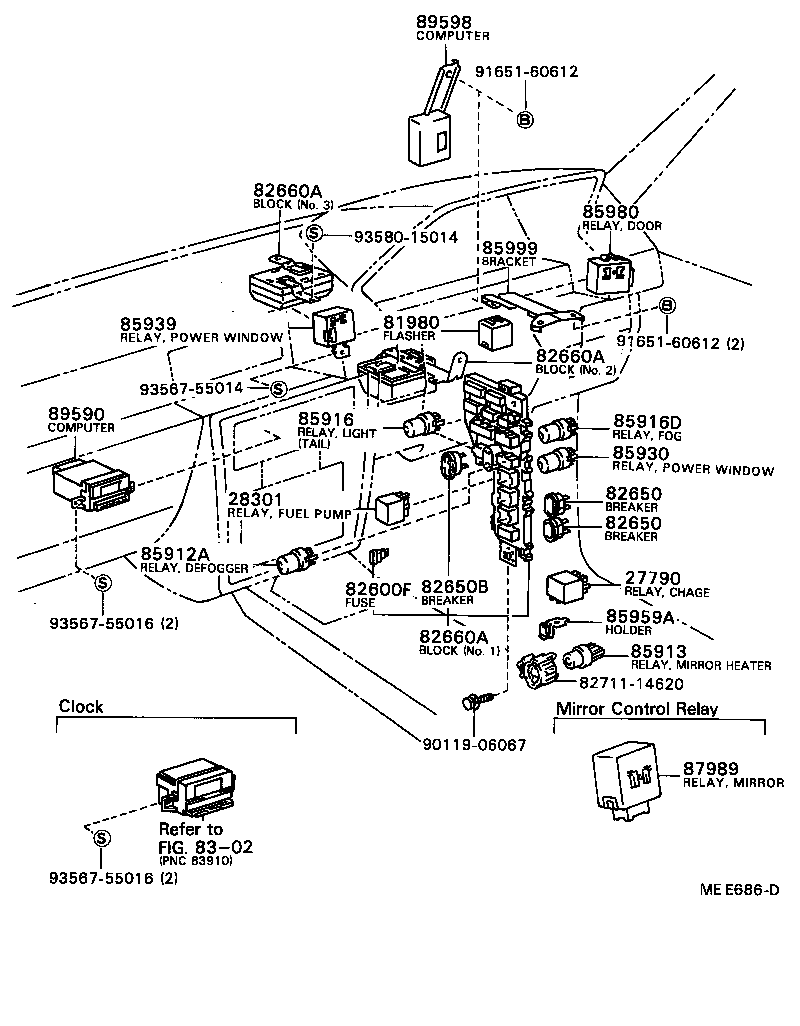

ILLUST NO. 4 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28301 - RELAY ASSY, FUEL PUMP | ||||
| 28380-73010 |
2YPU,3YPU..YX70,72 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-20140 |
YX70,72 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX7#,LX7#,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX7#,LX7#,MX71,SX70,YX7# 10A,10A |
3 | ||
| 90982-09005 |
GX7#,LX7#,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 90982-09004 |
GX7#,LX7#,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20011 |
GX7#,LX7#,MX71,SX70,YX7# 30A,30A,DEFOGGER |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22211 |
GX7#,LX7#,SX70,YX7# NO.1 |
1 | ||
| 82602-22210 |
GX7#,LX7#,MX71,SX70,YX7# NO.1 |
1 | ||
| 82602-22170 |
GX7#,LX7#,MX71,SX70,YX7# NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22211 |
GX7#,LX7#,SX70,YX7# NO.1 |
1 | ||
| 82602-22210 |
GX7#,LX7#,MX71,SX70,YX7# NO.1 |
1 | ||
| 82602-22170 |
GX7#,LX7#,MX71,SX70,YX7# NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22211 |
GX7#,LX7#,SX70,YX7# NO.1 |
1 | ||
| 82602-22210 |
GX7#,LX7#,MX71,SX70,YX7# NO.1 |
1 | ||
| 82602-22170 |
GX7#,LX7#,MX71,SX70,YX7# NO.2 |
1 | ||
| 85912A - RELAY, DEFOGGER TIMER | ||||
| 90987-02002 |
GX7#,LX7#,MX71,SX70,YX7# MARUKO |
1 | ||
| 90987-02004 |
GX7#,LX7#,MX71,SX70,YX7# DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX7#,LX7#,MX71,SX70,YX7# HEAD |
1 | ||
| 90987-02004 |
GX7#,LX7#,MX71,SX70,YX7# TAIL,DENSO |
1 | ||
| 90987-02002 |
GX7#,LX7#,MX71,SX70,YX7# TAIL,MARUKO |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-22160 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90119-06067 | ||||
| 91651-60612 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93580-15014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

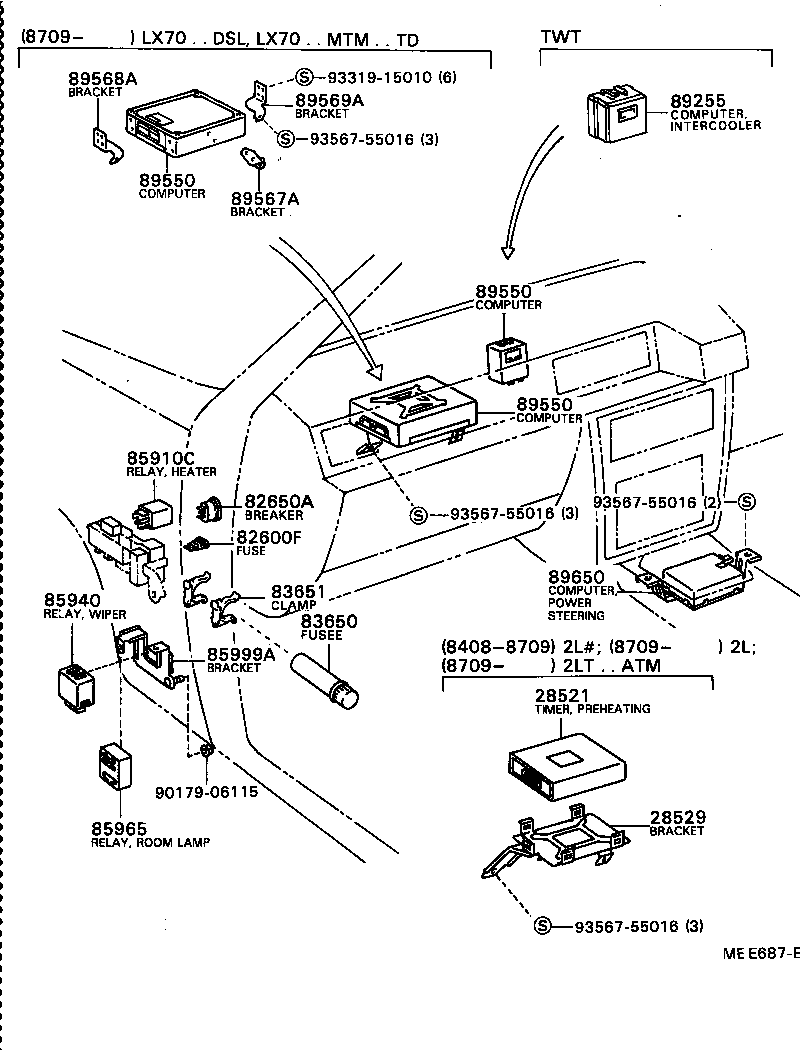

ILLUST NO. 5 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX7#,LX7#,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX7#,LX7#,MX71,SX70,YX7# 10A,10A |
3 | ||
| 90982-09005 |
GX7#,LX7#,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 90982-09004 |
GX7#,LX7#,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
GX7#,LX7#,MX71,SX70,YX7# 30A,30A,HEATER |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25002 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22110 |
LX76,YX7# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22220 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22430 |
YX70,72 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22430 |
YX70,72 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22430 |
YX70,72 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
ILLUST NO. 6 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22050 |
GX7#,LX70,SX70,YX7#..(3FC,5F)..(GD,GL,GR,GT,LG,LS) |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20030 |
GX7#,LX70,MX71,SX70,YX7#..GD,GL,GR,GT,LG,LS |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
GX7#,LX7#,MX71,SX70,YX7# MATSUSHITA |
1 | ||
| 84340-32010 |
GX7#,LX7#,MX71,SX70,YX7# TOKAIRIKA |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
GX7#,LX7#,MX71,SX70,YX7# MATSUSHITA |
1 | ||
| 84340-32010 |
GX7#,LX7#,MX71,SX70,YX7# TOKAIRIKA |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GX7#,LX70,SX70,YX7#..(3FC,5F)..(GD,GL,GR,GT,LG,LS) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GX7#,LX70,SX70,YX7#..(3FC,5F)..(GD,GL,GR,GT,LG,LS) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29295 |
YX70,72 |
1 | ||
| Common parts | ||||
| 90167-20001 | ||||
| 90170-10017 | ||||
| 90266-02002 | ||||
| 90430-08252 | ||||
| 90463-12014 | ||||
| 91651-60616 | ||||
| 93315-14014 | ||||
| 93319-15008 | ||||
| 93567-55014 | ||||
ILLUST NO. 7 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83301 - GAGE SUB-ASSY, FUEL SENDER (FOR LPG TANK) | ||||
| 83301-20016 |
YX70,72 |
1 | ||
| 83302 - BODY SUB-ASSY, FUEL SENDER GAGE | ||||
| 83302-22010 |
YX70,72 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 90430-42255 |
YX70,72 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 90430-42255 |
YX70,72 |
1 | ||
| 84560 - SWITCH ASSY, FUEL VALVE CONTROL | ||||
| 84560-22040 |
YX70,72 |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90179-06007 | ||||
| 90463-12014 | ||||
| 91651-40610 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 3 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29365 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| 84112-29425 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19125 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 84140-29095 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22350 |
LX76,YX7# |
1 | ||
| 84310B - SWITCH, TURN SIGNAL | ||||
| 84332-39195 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 84332-29235 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29715 |
LX76,YX7# |
1 | ||
| 84652-80065 |
LX76,YX7# |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-30430 | ||||
| 93315-14010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
