YX70-XEMNP (1984)
Toyota Mark 2

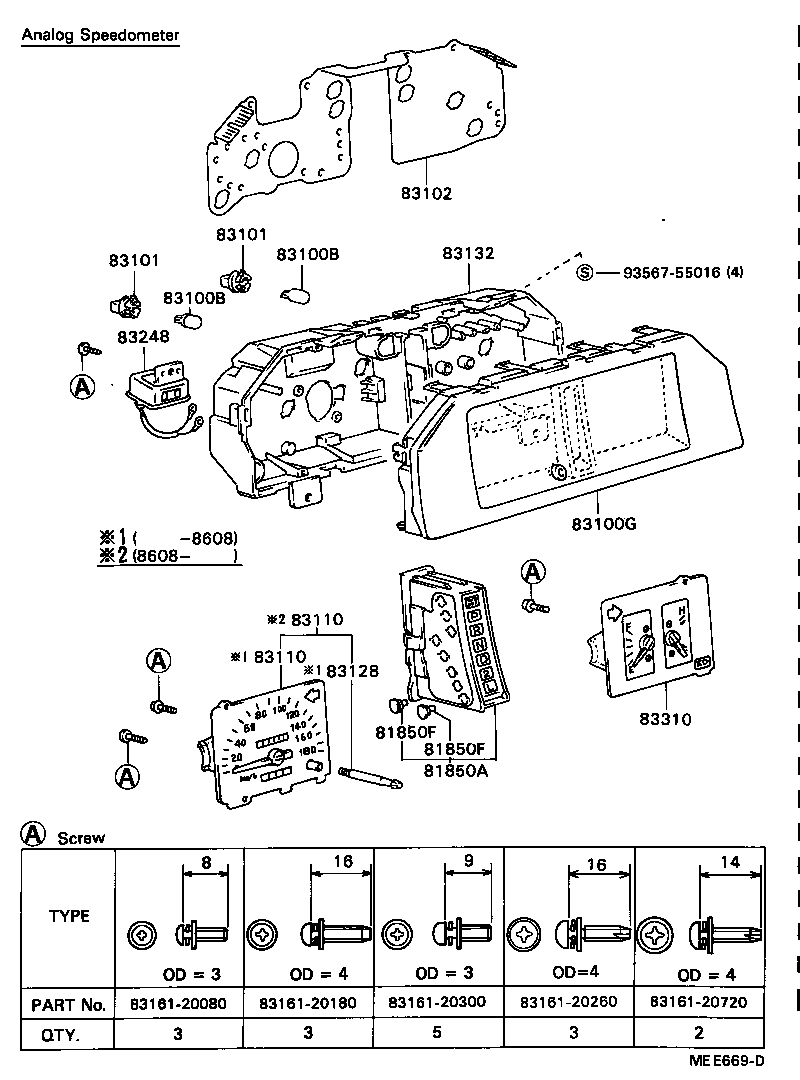

ILLUST NO. 1 OF 3(8408- )SX70..KYO,STD ; (8408- )LX7#,YX7#..CBR,DSL,LPG ; (8701- )SX70..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850A - LAMP ASSY, INDICATOR | ||||
| 81850-22110 |
GX7#,LX7#,SX70,YX70..3FC,5F |
1 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50140 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,12V 1.4W,WHITE,JEKO |
1 | ||
| 84999-50150 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,GREEN,JEKO |
1 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50140 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,12V 1.4W,WHITE,JEKO |
1 | ||
| 84999-50150 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,GREEN,JEKO |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,GREEN |
4 | ||
| 99132-12034 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W,12V 3.4W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,GREEN |
4 | ||
| 99132-12034 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W,12V 3.4W |
4 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-22960 |
YX7#;SX70..KYO,STD W/O TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
GX7#,LX7#,MX71,SX70,YX7# |
4 | ||
| 83101-20070 |
GX7#,LX7#,MX71,SX70,YX7# GREEN |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
GX7#,LX7#,MX71,SX70,YX7# |
4 | ||
| 83101-20070 |
GX7#,LX7#,MX71,SX70,YX7# GREEN |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22680 |
LX7#,YX7#..CBR,DSL,LPG W/O TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A121 |
GX7#,SX70,YX70 |
1 | ||
| 83110-2A120 |
GX7#,MX71,SX70,YX70 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A121 |
GX7#,SX70,YX70 |
1 | ||
| 83110-2A120 |
GX7#,MX71,SX70,YX70 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A120 |
LX7#,YX7#..CBR,DSL,LPG W/O TACHOMETER |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-22080 |
GX7#,LX7#,MX71,SX70,YX7# W/*AS |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22340 |
YX7#;SX70..KYO,STD W/O TACHOMETER,W/TEMP GAGE |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20260 | ||||
| 83161-20300 | ||||
| 83161-20720 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-22290 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22290 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22690 |
YX7#..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22690 |
YX7#..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22690 |
YX7#..5F |
1 | ||
| Common parts | ||||
| 90480-32010 | ||||
