YX70-XEMNP (1984)
Toyota Mark 2
Production
Aug 1984
-
Aug 1986
Engine
2YPU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )YX7#

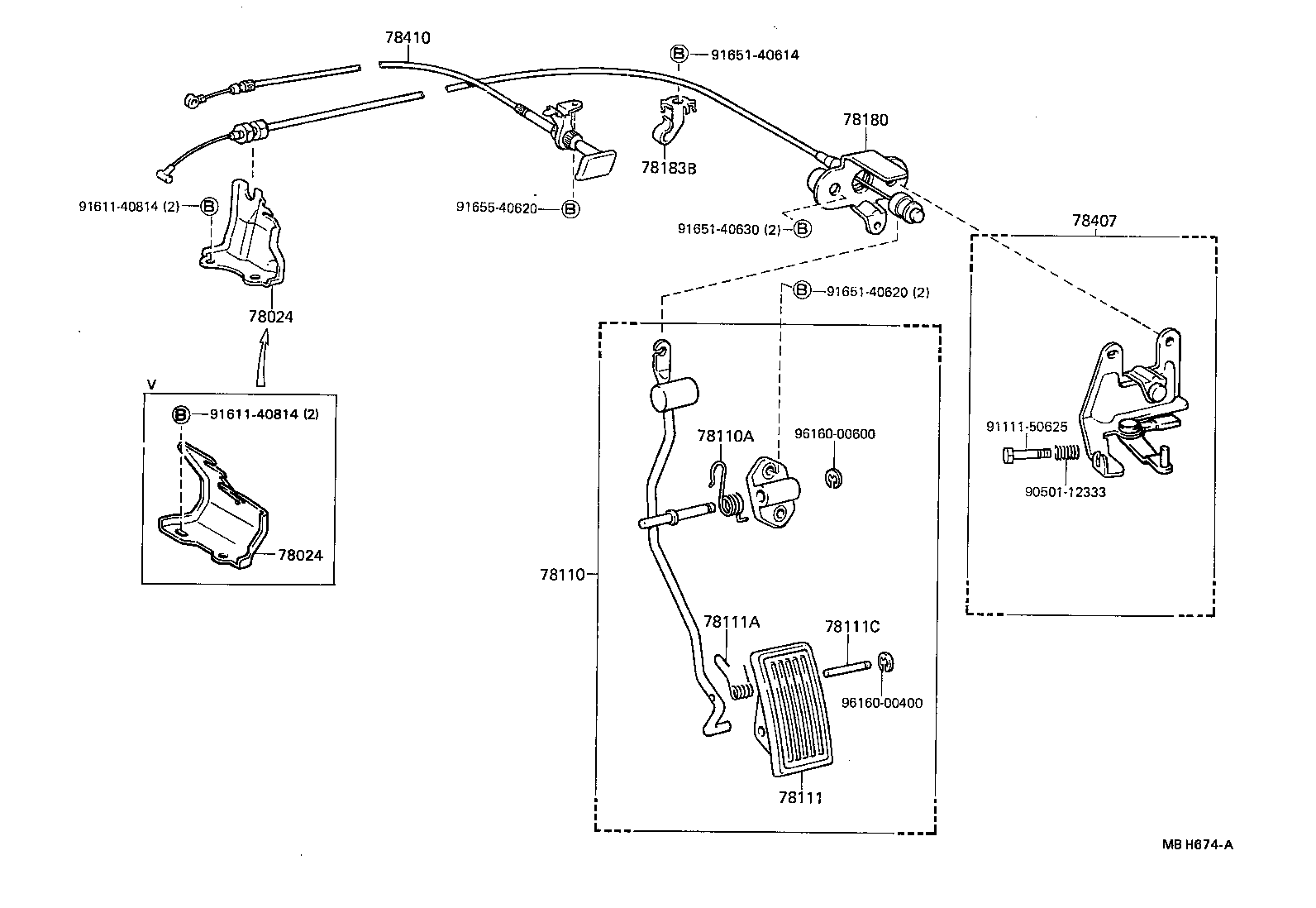

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-20060 |
YX70 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-20060 |
YX70 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22220 |
GX7#,LX7#,SX70,YX7#..5F |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
GX7#,LX7#,SX70,YX7#..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23088 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22590 |
YX70 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-22040 |
GX71,LX70,MX71,YX70..LPG,TBO,TD,TWC,TWT |
1 | ||
| 78407 - ARM SUB-ASSY, THROTTLE CONTROL | ||||
| 78407-22050 |
YX70 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-22050 |
YX70,72 |
1 | ||
| Common parts | ||||
| 90501-12333 | ||||
| 91111-50625 | ||||
| 91611-40814 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 91655-40620 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
