YX70-XEMNP (1984)
Toyota Mark 2
Production
Aug 1984
-
Aug 1986
Engine
2YPU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )YX70,72

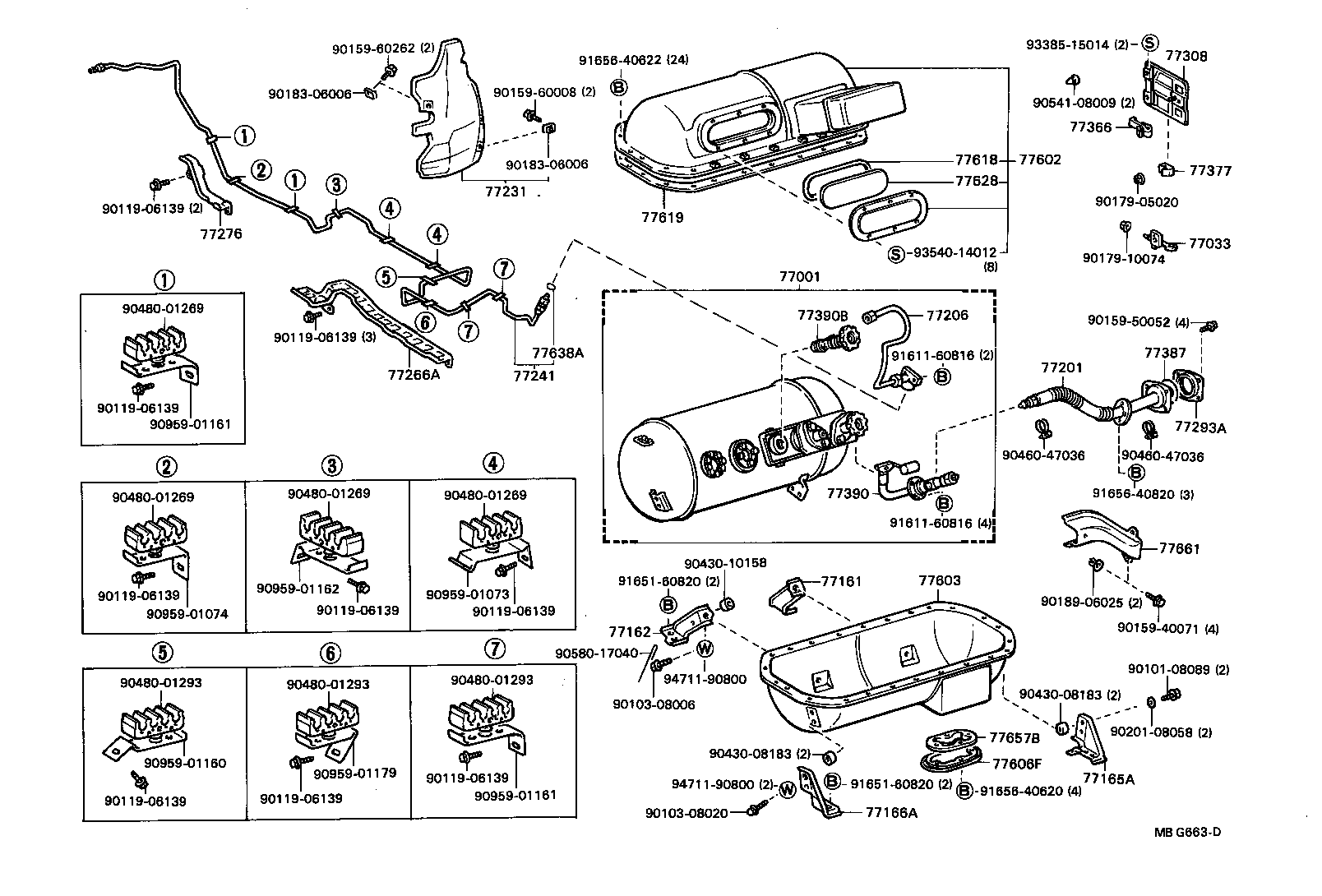

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001 - TANK ASSY, FUEL (LPG) | ||||
| 77001-22370 |
YX70,72 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-22020 |
YX70,72 |
1 | ||
| 77161 - BRACKET, FUEL TANK, FRONT RH | ||||
| 77161-22020 |
YX70,72 |
1 | ||
| 77162 - BRACKET, FUEL TANK, FRONT LH | ||||
| 77162-22020 |
YX70,72 |
1 | ||
| 77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH | ||||
| 77165-22020 |
YX70,72 |
1 | ||
| 77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH | ||||
| 77166-22020 |
YX70,72 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22170 |
YX70,72 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-22030 |
YX70,72 |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77277-22060 |
YX70,72 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-22310 |
YX70,72 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-22050 |
YX7# |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22030 |
YX7# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-22060 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22030 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-22020 |
YX70,72 |
1 | ||
| 77390B - VALVE, FUEL TANK OUTLET | ||||
| 90977-01019 |
YX70,72 |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77601-22080 |
YX70,72 |
1 | ||
| 77603 - CASE SUB-ASSY, FUEL TANK, LOWER | ||||
| 77603-22050 |
YX70,72 |
1 | ||
| 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT | ||||
| 77606-20030 |
YX70,72 |
1 | ||
| 77618 - GASKET, CASE WINDOW | ||||
| 77618-30010 |
YX70,72 |
1 | ||
| 77619 - SEAL, FUEL TANK VALVE COVER TO FLOOR | ||||
| 77619-22030 |
YX70,72 |
1 | ||
| 77628 - GLASS, CASE COVER WINDOW | ||||
| 77628-30010 |
YX70,72 |
1 | ||
| 77638A - RING, O (FOR TANK VALVE JOINT SLEEVE) | ||||
| 96712-24011 |
YX70,72 |
1 | ||
| 77657B - SEAL, FUEL TANK COVER VENT CASE, UPPER | ||||
| 77657-20020 |
YX70,72 |
1 | ||
| 77661 - COVER, FUEL INLET PIPE | ||||
| 77661-22040 |
YX70,72 |
1 | ||
| Common parts | ||||
| 90101-08089 | ||||
| 90103-08006 | ||||
| 90103-08020 | ||||
| 90119-06139 | ||||
| 90159-40071 | ||||
| 90159-50052 | ||||
| 90159-60008 | ||||
| 90159-60262 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90183-06006 | ||||
| 90189-06025 | ||||
| 90201-08058 | ||||
| 90430-08183 | ||||
| 90430-10158 | ||||
| 90460-47036 | ||||
| 90480-01269 | ||||
| 90480-01293 | ||||
| 90541-08009 | ||||
| 90580-17040 | ||||
| 90959-01073 | ||||
| 90959-01074 | ||||
| 90959-01160 | ||||
| 90959-01161 | ||||
| 90959-01162 | ||||
| 90959-01179 | ||||
| 91611-60816 | ||||
| 91651-60820 | ||||
| 91656-40620 | ||||
| 91656-40622 | ||||
| 91656-40820 | ||||
| 93385-15014 | ||||
| 93540-14012 | ||||
| 94711-90800 | ||||
