YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

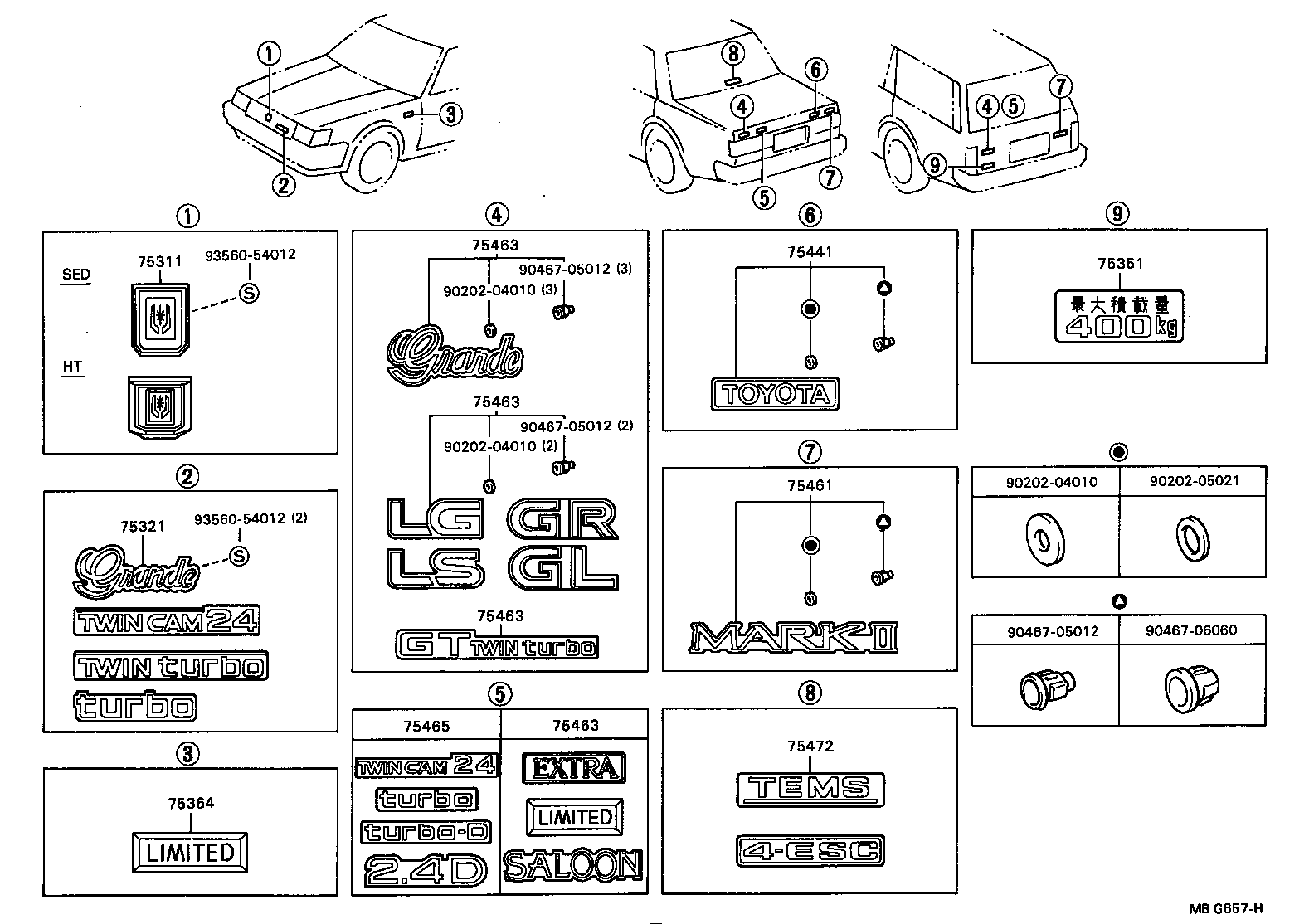

Click highlighted areas on diagram

diagram 75311 75321 75351 75364 75441 75461 75463 75463 75463 75463 75465 75472 9020204010 9020204010 9020204010 9020205021 9046705012 9046705012 9046705012 9046706060 9356054012 9356054012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-22190

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75441 - PLATE, REAR NAME, NO.1
75442-22040

GX71,LX70,MX71,SX70,YX70,72

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-22090

GX7#,LX7#,MX71,SX70,YX7#

ﾏｰｸ 2,MARK 2

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-22470

LX70,SX70,YX7#..GL

GL,GL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-22470

LX70,SX70,YX7#..GL

GL,GL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-22470

LX70,SX70,YX7#..GL

GL,GL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-22470

LX70,SX70,YX7#..GL

GL,GL

 1
Common parts
90202-04010
90202-05021
90467-05012
90467-06060
93560-54012
