YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )SED,V,WG

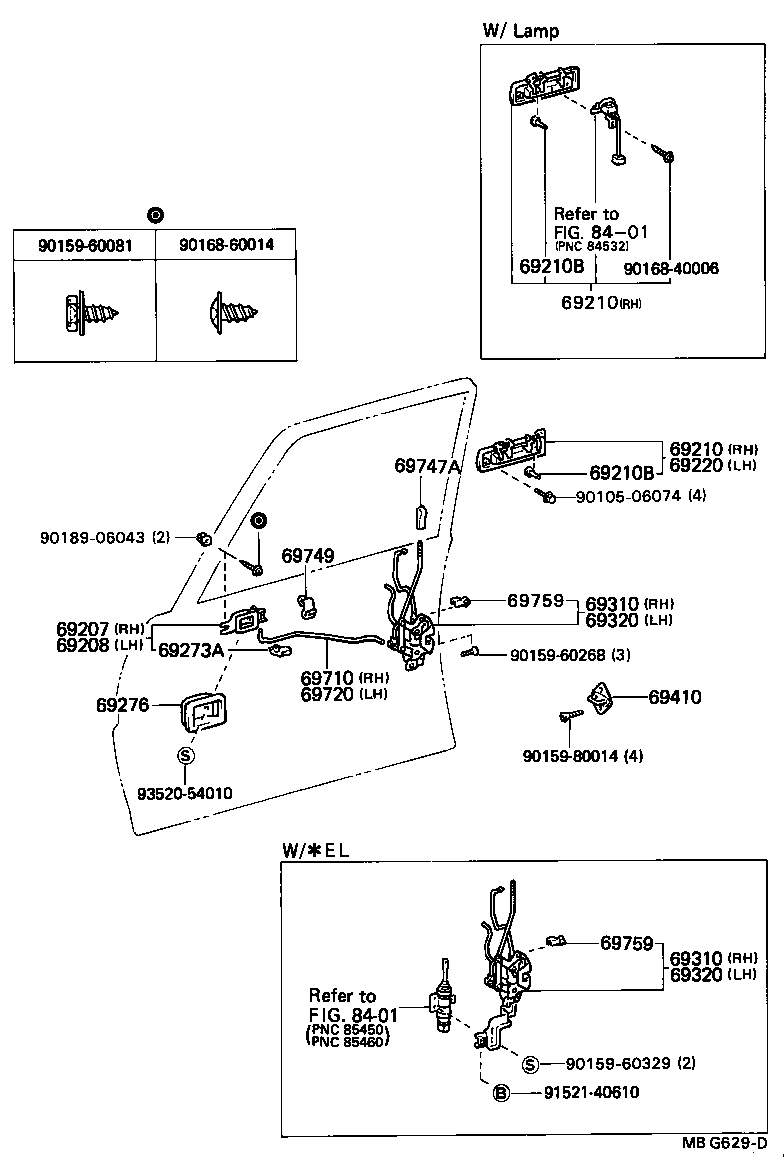

Click highlighted areas on diagram

diagram 69207 69208 69210 69210 69210B 69210B 69220 69273A 69276 69310 69310 69320 69320 69410 69710 69720 69747A 69749 69759 69759 8401 8401 9010506074 9015960081 9015960268 9015960329 9015980014 9016840006 9016860014 9018906043 9152140610 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-2202003

GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD

GRAY,COOL GRAY,TRIM1#

 1
69205-2202005

GX71,LX7#,SX70,YX7#..DX,GL,LS

BEIGE,BEIGE,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-2202005

GX71,LX7#,SX70,YX7#..DX,GL,LS

BEIGE,BEIGE,TRIM4#

 1
69206-2202003

GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD

GRAY,COOL GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22080

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22080

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX7#,LX7#,MX71,SX70,YX7#

 4
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX7#,LX7#,MX71,SX70,YX7#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-22070

GX7#,LX7#,MX71,SX70,YX7#

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20060

GX71,LX70,SX70,YX70..GL,KYO,LS,STD

LH

 1
69759-20070

GX71,LX70,SX70,YX70..GL,KYO,LS,STD

RH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-2205005

GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS

BEIGE,BEIGE,TRIM4#

 2
69277-2205003

GX7#,LX7#,MX71,SX70,YX7#

GRAY,COOL GRAY,TRIM1#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22170

GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22170

GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22170

GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22170

GX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

GX7#,LX7#,MX71,SX70,YX7#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-22040

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-22040

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3003015

GX7#,LX7#,MX71,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)

BEIGE,BEIGE,TRIM4#

 2
69741-3003003

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

GRAY,COOL GRAY,TRIM1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010

GX7#,LX7#,MX71,SX70,YX7#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20050

GX7#,LX7#,MX71,SX70,YX7#

RH

 1
69759-20040

GX7#,LX7#,MX71,SX70,YX7#

LH

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20050

GX7#,LX7#,MX71,SX70,YX7#

RH

 1
69759-20040

GX7#,LX7#,MX71,SX70,YX7#

LH

 1
Common parts
90105-06074
90159-60081
90159-60268
90159-60329
90159-80014
90168-40006
90168-60014
90189-06043
91521-40610
93520-54010
Linked diagrams
8401
