YX70-XEMNP (1984)
Toyota Mark 2

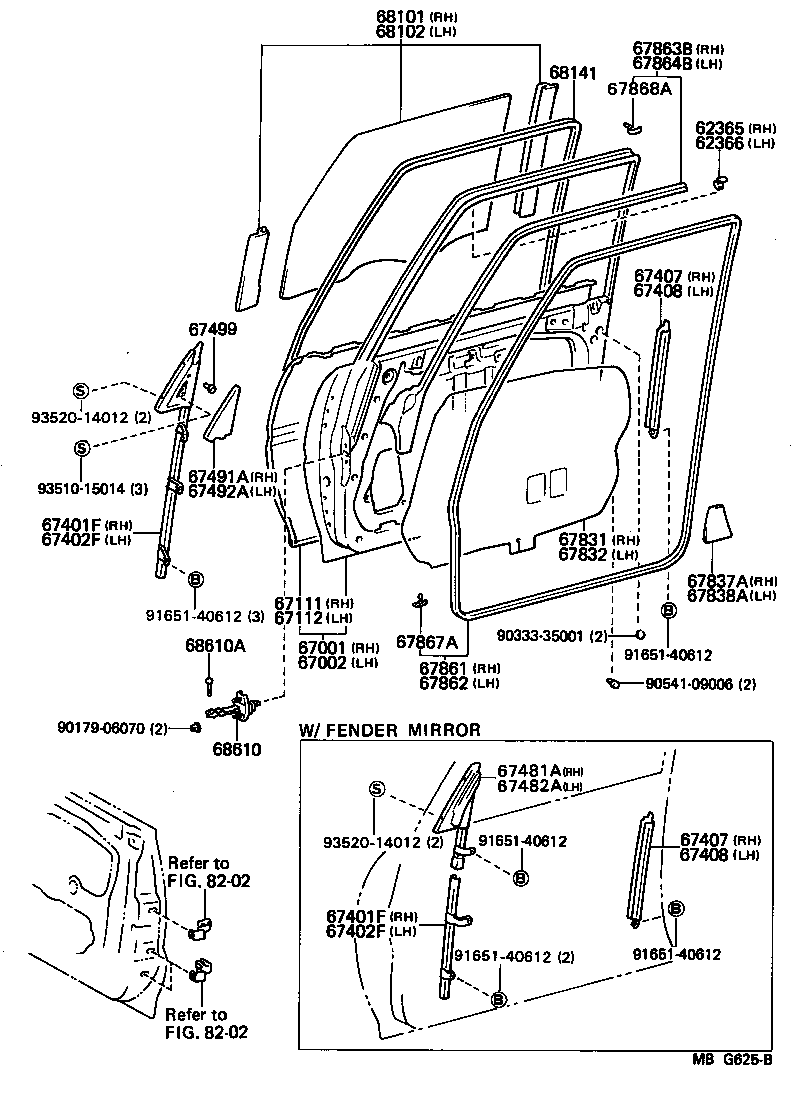

ILLUST NO. 1 OF 2(8408- )SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62365 - CLIP, DOOR WINDOW GLASS, FRONT RH | ||||
| 62369-22030 |
GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD |
1 | ||
| 62366 - CLIP, DOOR WINDOW GLASS, FRONT LH | ||||
| 62369-22030 |
GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-22200 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-22200 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-22120 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-22130 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG W/FENDER MIRROR |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG W/FENDER MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG W/FENDER MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG W/FENDER MIRROR |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-22040 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-22040 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-22040 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-22040 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-22070 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG W/FENDER MIRROR |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-22040 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG W/FENDER MIRROR |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-22130 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG COLD SPEC |
1 | ||
| 67831-22100 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-22130 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG COLD SPEC |
1 | ||
| 67832-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-22020 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG COLD SPEC |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-22020 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-22140 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-22140 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-22020 |
GX7#,LX7#,MX71,SX70,YX7# RH |
1 | ||
| 67868-22010 |
GX7#,LX7#,MX71,SX70,YX7# LH |
1 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30040 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-22070 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG *TT,厚さ=4.0,W/*FM,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-22070 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG *TT,厚さ=4.0,W/*FM,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-22080 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH,COLD SPEC |
1 | ||
| 68141-22060 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH |
1 | ||
| 68151-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH |
1 | ||
| 68151-22030 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH,COLD SPEC |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-22030 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
GX7#,LX7#,MX71,SX70,YX7# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-35001 | ||||
| 90541-09006 | ||||
| 91651-40612 | ||||
| 93510-15014 | ||||
| 93520-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

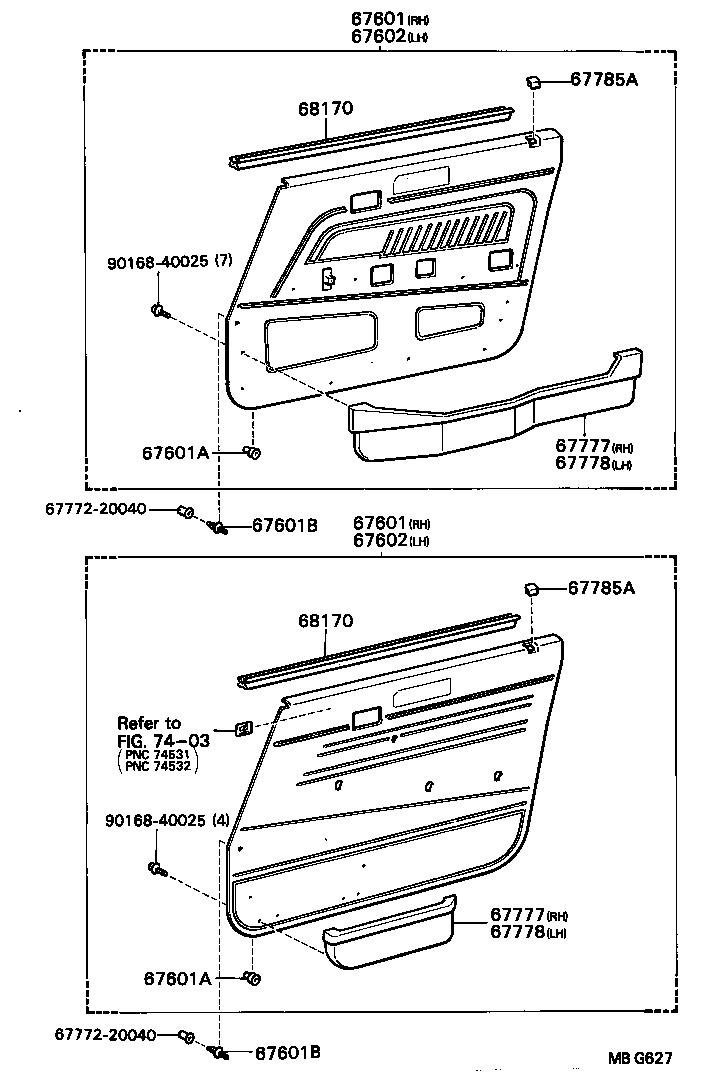

ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2242005 |
YX70..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67650-2242003 |
YX70..GL GRAY,GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-2242005 |
YX70..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67650-2242003 |
YX70..GL GRAY,GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30060 |
GX7#,LX7#,MX71,SX70,YX7# BLUE |
18 | ||
| 67771-22010 |
GX7#,LX7#,MX71,SX70,YX7# BLACK |
8 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30060 |
GX7#,LX7#,MX71,SX70,YX7# BLUE |
18 | ||
| 67771-22010 |
GX7#,LX7#,MX71,SX70,YX7# BLACK |
8 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704305 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704313 |
GX7#,LX7#,MX71,SX70,YX7# GRAY,COOL GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0704305 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS BEIGE,BEIGE,TRIM4# |
2 | ||
| 90467-0704313 |
GX7#,LX7#,MX71,SX70,YX7# GRAY,COOL GRAY,TRIM1# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2A36003 |
YX70..GL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2A36005 |
YX70..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2A36003 |
YX70..GL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-2A36005 |
YX70..GL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204035 |
GX71,LX7#,SX70,YX7#..DX,GL,LS BEIGE,BEIGE,TRIM4# |
1 | ||
| 67777-2204043 |
GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204035 |
GX71,LX7#,SX70,YX7#..DX,GL,LS BEIGE,BEIGE,TRIM4# |
1 | ||
| 67777-2204043 |
GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203035 |
GX71,LX7#,SX70,YX7#..DX,GL,LS BEIGE,BEIGE,TRIM4# |
1 | ||
| 67778-2203043 |
GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203035 |
GX71,LX7#,SX70,YX7#..DX,GL,LS BEIGE,BEIGE,TRIM4# |
1 | ||
| 67778-2203043 |
GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67785-2203003 |
GX7#,LX7#,MX71,SX70,YX7# GRAY,COOL GRAY,TRIM1# |
2 | ||
| 67785-2203005 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67785-2203003 |
GX7#,LX7#,MX71,SX70,YX7# GRAY,COOL GRAY,TRIM1# |
2 | ||
| 67785-2203005 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS BEIGE,BEIGE,TRIM4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH |
1 | ||
| 68220-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG RH |
1 | ||
| 68220-22090 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG LH |
1 | ||
| Common parts | ||||
| 67772-20040 | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 7403 | ||||
