YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(8408-8510)GD..EFI ; (8502- )LX7#..DX,GL,GR ;(8510- )SX70,YX7#..DX,GL,GR,STD

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22430

SX70,YX7#..DX,GL,GR,STD

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

GX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD

 1
44606-12520

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
44610 - BOOSTER ASSY, BRAKE
44610-22470

SX70,YX7#..DX,GL,GR,STD

AISIN

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX7#,LX7#,MX71,SX70,YX7#

 1
Common parts
90179-08038

ILLUST NO. 1 OF 4(8408-8502)DX,GL,GR,KYO,LG,LS,STD ; (8502-8510)SX70,YX7#..DX,GL,GR,STD ; (8502-

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-22430

SX70,YX7#..DX,GL,GR,STD

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

GX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD

 1
44606-12520

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
44610 - BOOSTER ASSY, BRAKE
44610-22470

SX70,YX7#..DX,GL,GR,STD

AISIN

 1
44618 - SEAL, BOOSTER BODY
44621-28120

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
44621-28120

GX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
44628-28120

GX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD

 1
44642 - PISTON, BRAKE BOOSTER
44642-16050

LX7#,SX70,YX7#..CBR,DSL,LPG

 1
44642-16050

LX70..KYO;SX70,YX7#

 1
44663 - KEY, VALVE STOPPER
44635-28120

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
44635-28120

GX7#,SX70,YX7#..DX,GL,GR,LG,LS,STD

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX7#,LX7#,MX71,SX70,YX7#

 1
Common parts
90179-08038

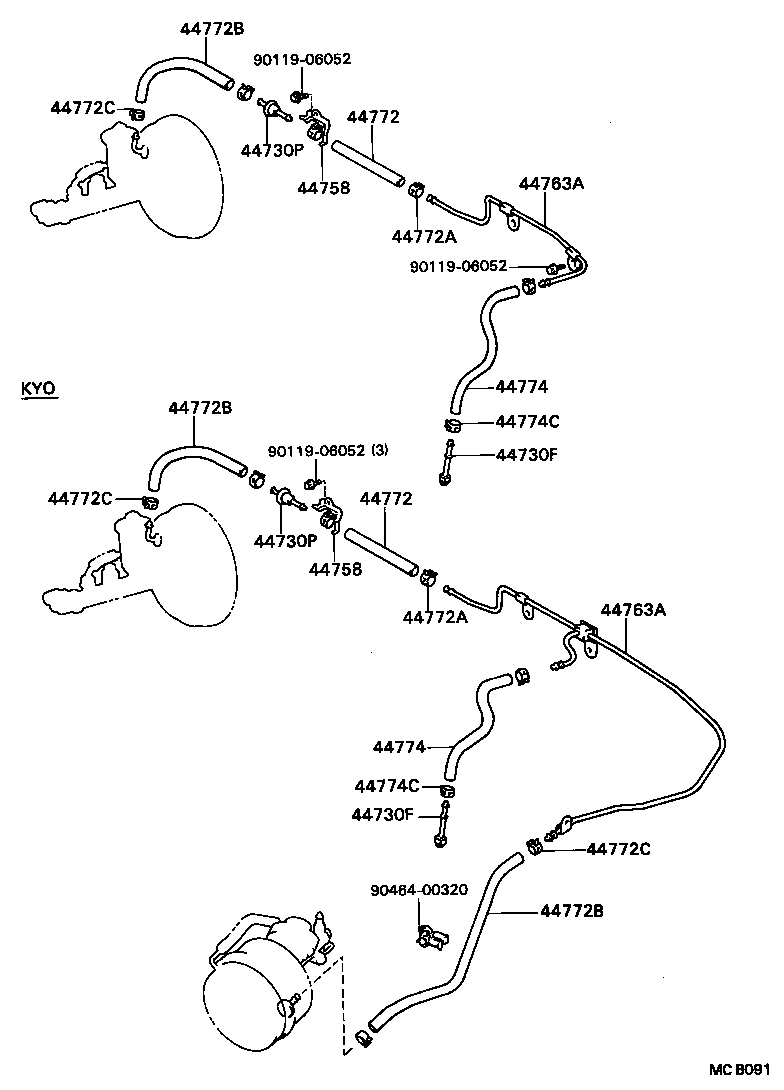

ILLUST NO. 4 OF 4(8408- )YX7#

Click highlighted areas on diagram

diagram 44730F 44730F 44730P 44730P 44758 44758 44763A 44763A 44772 44772 44772A 44772A 44772B 44772B 44772B 44772C 44772C 44772C 44774 44774 44774C 44774C 9011906052 9011906052 9011906052 9046400320
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YX7#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

YX7#

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-10010

GX7#,SX70,YX7#..CBR,EFI,LPG,TWC

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-10010

GX7#,SX70,YX7#..CBR,EFI,LPG,TWC

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22170

SX70,YX7#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22170

SX70,YX7#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-22080

YX7#..DX,GL

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-22080

YX7#..DX,GL

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
95445-09150

YX7#

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
95445-09150

YX7#

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16002

SX70,YX7#

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16002

SX70,YX7#

 2
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22060

GX7#,SX70,YX7#..CBR,EFI,LPG

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22060

GX7#,SX70,YX7#..CBR,EFI,LPG

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22060

GX7#,SX70,YX7#..CBR,EFI,LPG

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GX7#,LX7#,MX71,SX70,YX7#

 4
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GX7#,LX7#,MX71,SX70,YX7#

 4
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GX7#,LX7#,MX71,SX70,YX7#

 4
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22080

YX7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22080

YX7#

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

MX71,YX7#

 2
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

MX71,YX7#

 2
Common parts
90119-06052
90464-00320
