YX70-XEMNP (1984)
Toyota Mark 2
Production
Aug 1984
-
Aug 1986
Engine
2YPU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )YX7#..DX,GL

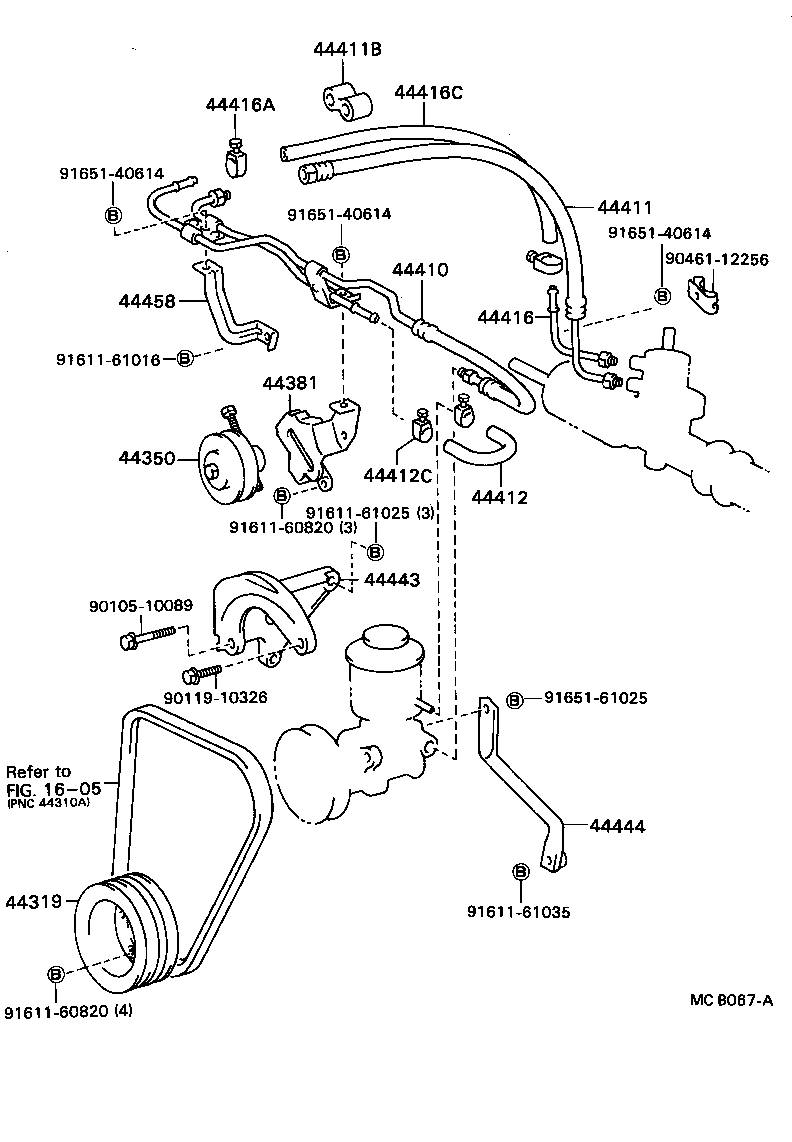

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-20010 |
YX7# |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-20040 |
YX7# |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-20010 |
YX7# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-22190 |
YX7#..DX,GL |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-22350 |
YX7#..DX,GL |
1 | ||
| 44411B - CUSHION(FOR PRESSURE FEED HOSE) | ||||
| 90540-18002 |
YX7# |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-22140 |
YX7#..DX,GL |
1 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
YX7#..DX,GL |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-22200 |
YX7# |
1 | ||
| 44416A - CLAMP(FOR RETURN HOSE) | ||||
| 90460-01001 |
GX7#,LX7#,MX71,YX7# |
2 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 44412-22230 |
YX7# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28011 |
YX70,76 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
YX7# |
1 | ||
| 44458 - BRACKET, TUBE SUPPORT, NO.2 | ||||
| 44458-22110 |
YX70,76 W/COOLER |
1 | ||
| 44458-30030 |
YX7# |
1 | ||
| Common parts | ||||
| 90105-10089 | ||||
| 90119-10326 | ||||
| 90461-12256 | ||||
| 91611-60820 | ||||
| 91611-61016 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91651-40614 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
