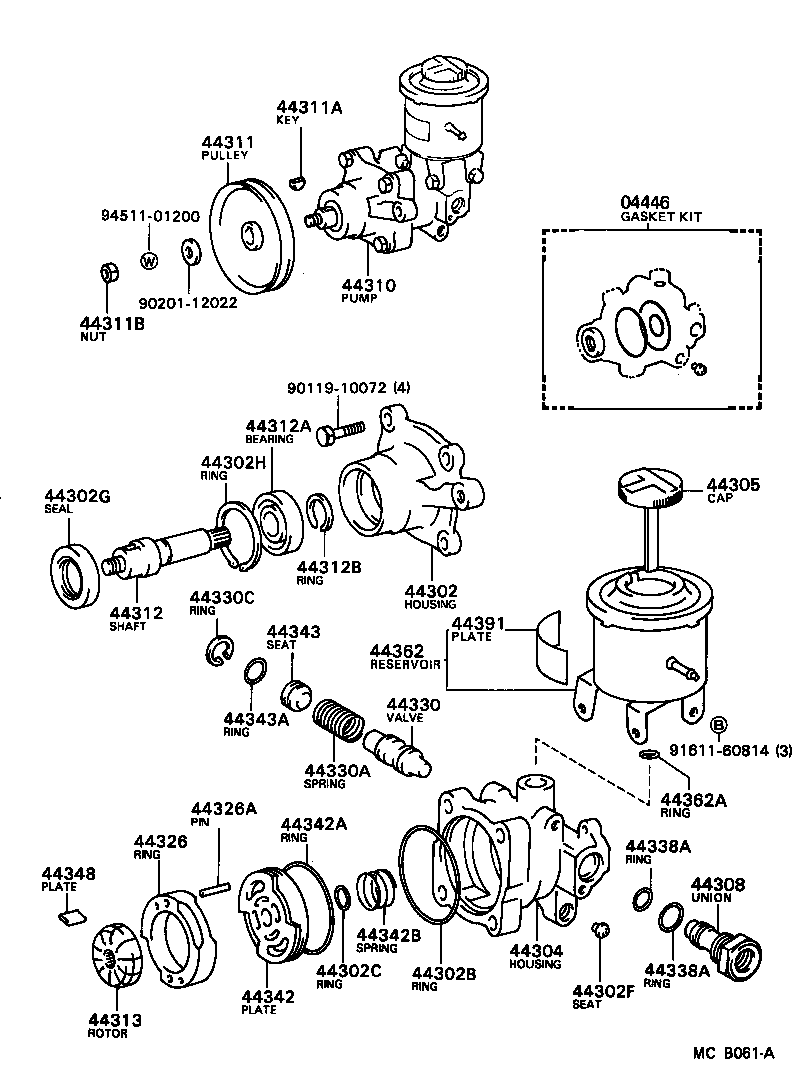

YX70-XEMNP (1984)
Toyota Mark 2
(8408- )YX7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-35020 |
YX7# |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-14010 |
YX7# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
LX7#,MX71,YX7# |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
GX7#,LX7#,MX71,YX7#..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GX7#,YX7# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
GX7#,LX70,MX71,YX70..DSL,EFI,LPG,TBO,TD |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
LX7#,MX71,YX7# |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-28011 |
YX7# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
MX71,YX7# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-14041 |
LX7#,MX71,YX7# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-22310 |
YX70 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12010 |
YX7# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90170-12011 |
GX7#,LX7#,MX71,YX7#..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
GX7#,LX7#,MX71,YX7#..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
LX7#,MX71,YX7# |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
GX7#,LX7#,MX71,YX7#..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12010 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ無し,NO MARK |
1 | ||
| 44313-12040 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-12050 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 4,MARK 4 |
1 | ||
| 44313-12030 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-12020 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 1,MARK 1 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12040 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12010 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ無し,NO MARK |
1 | ||
| 44325-12020 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-12030 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-12050 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS ﾏｰｸ 4,MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 長さ=25,外径=5.0,L=25.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-14020 |
LX7#,MX71,YX7# ﾏｰｸ B,MARK B |
1 | ||
| 44330-14030 |
LX7#,MX71,YX7# ﾏｰｸ C,MARK C |
1 | ||
| 44330-14010 |
LX7#,MX71,YX7# ﾏｰｸ A,MARK A |
1 | ||
| 44330-14040 |
LX7#,MX71,YX7# ﾏｰｸ D,MARK D |
1 | ||
| 44330-14060 |
LX7#,MX71,YX7# ﾏｰｸ F,MARK F |
1 | ||
| 44330-14050 |
LX7#,MX71,YX7# ﾏｰｸ E,MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
GX7#,LX70,MX71,SX70,YX70..GD,GL,GR,KYO,LG,LS |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
LX7#,MX71,YX7# |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 外径=17.0,内径=13.0,ID=14 |
1 | ||
| 90301-22001 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 外径=25.5,内径=22.5,ID=22 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 外径=17.0,内径=13.0,ID=14 |
1 | ||
| 90301-22001 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 外径=25.5,内径=22.5,ID=22 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
GX7#,LX7#,MX71,YX7#..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
GX7#,LX7#,MX71,YX7#..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
GX7#,LX7#,MX71,YX7#..CBR,DSL,EFI,LPG,TBO,TD |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
LX7#,MX71,YX7# |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
LX7#,MX71,YX7# |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12040 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 長さ=14.991,ROTOR MARK 3 |
10 | ||
| 44345-12010 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 長さ=14.997,ROTOR NO MARK |
10 | ||
| 44345-12020 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 長さ=14.995,ROTOR MARK 1 |
10 | ||
| 44345-12050 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 長さ=14.989,ROTOR MARK 4 |
10 | ||
| 44345-12030 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,KYO,LG,LS 長さ=14.993,ROTOR MARK 2 |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44306-22160 |
YX7# |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 96711-19013 |
GX7#,MX71,YX7#..CBR,EFI,LPG,TBO |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
GX7#,MX71,YX7#..CBR,EFI,LPG,TBO |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90201-12022 | ||||
| 91611-60814 | ||||
| 94511-01200 | ||||
