YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

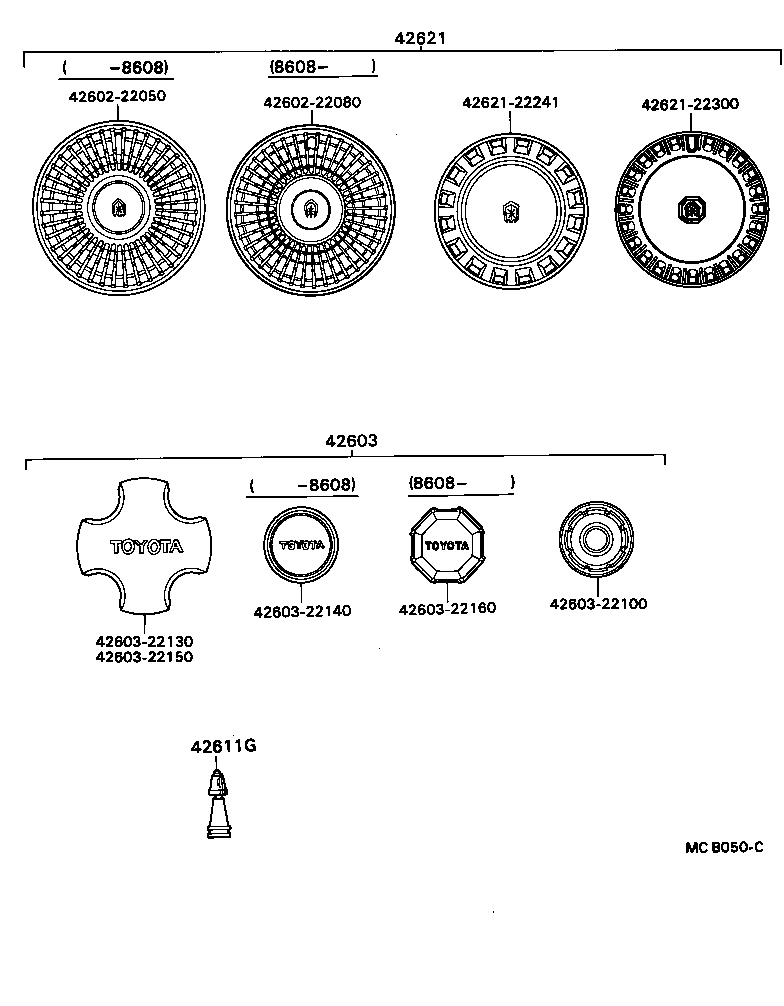

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 4260222050 4260222080 42603 4260322100 4260322130 4260322140 4260322150 4260322160 42611G 42621 4262122241 4262122300
Part # Description Qty Price
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

GX7#,LX7#,MX71,SX70,YX7#

 5
42621 - CAP, WHEEL
42621-22241

YX7#..GL

 4
Common parts
42602-22050
42602-22080
42603-22100
42603-22130
42603-22140
42603-22150
42603-22160
42621-22241
42621-22300

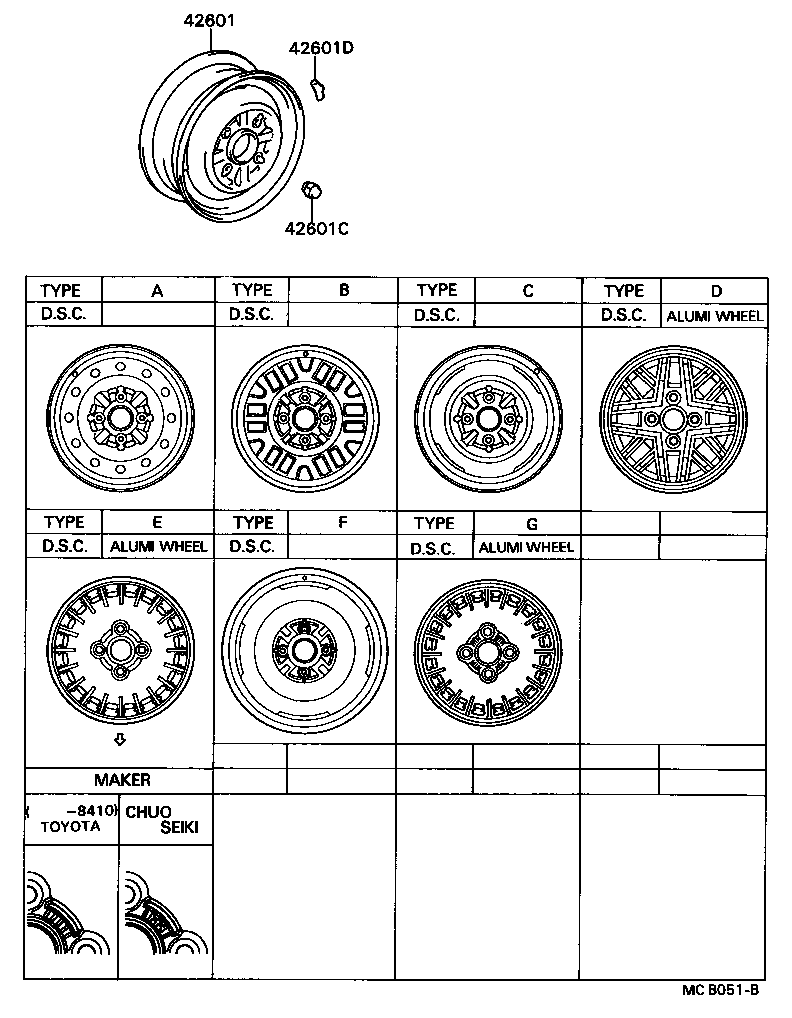

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 42601 42601C 42601D
Part # Description Qty Price
42601 - WHEEL, DISC
42611-22210

LX76,YX7#..DX,GL

5J-14,TYPE A

 5
42601C - NUT, HUB (FOR AXLE)
90942-01007

GX7#,LX70,MX71,SX70,YX7#..GD,GL,GR,GT,LG,LS

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03027

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

60G,厚さ=9.5,60G

 1
90942-03022

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

40G,厚さ=9.5,40G

 1
90942-03025

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

50G,厚さ=9.5,50G

 1
90942-03020

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

30G,厚さ=10,30G

 1
90942-03029

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

70G,厚さ=9.5,70G

 1
90942-03101

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

45G,45G

 1
90942-03099

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

25G,25G

 1
90942-03100

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

35G,35G

 1
90942-03031

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

80G,厚さ=9.5,80G

 1
90942-03098

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

15G,15G

 1
90942-03109

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

75G,75G

 1
90942-03102

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

55G,55G

 1
90942-03017

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

20G,厚さ=8,20G

 1
90942-03041

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

10G,厚さ=7.5,10G

 1
90942-03108

GX7#,LX7#,MX71,SX70,YX7#..CBR,DSL,EFI,LPG,TBO,TD,TWC

65G,65G

 1
