YX70-XEMNP (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1986
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )YX7#..5F

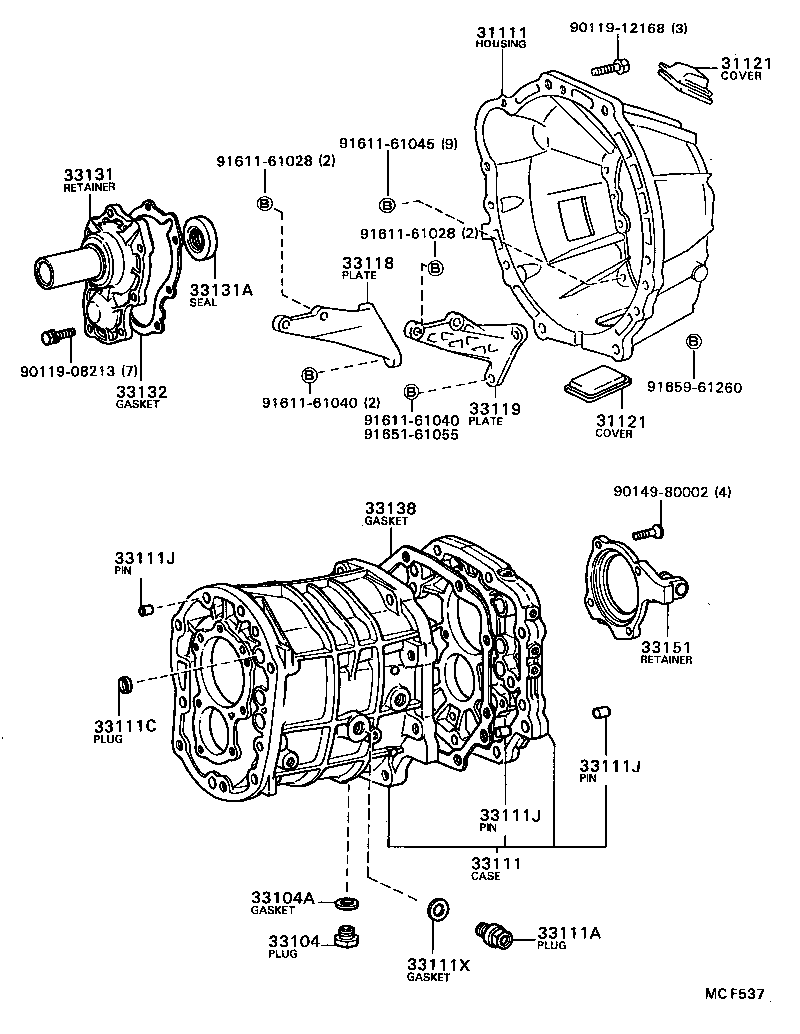

Click highlighted areas on diagram

diagram 31111 31121 31121 33104 33104A 33111 33111A 33111C 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908213 9011912168 9014980002 9161161028 9161161028 9161161040 9161161040 9161161045 9165161055 9165961260
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-30190

YX7#..5F

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-30040

YX7#..5F

UPR

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-30040

YX7#..5F

UPR

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GX7#,LX7#,SX70,YX7#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GX7#,LX7#,SX70,YX7#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-22040

YX70,72..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GX7#,LX7#,SX70,YX7#..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

GX7#,LX7#,SX70,YX7#..5F

外径=14

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX7#,LX7#,SX70,YX7#..5F

長さ=16,外径=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX7#,LX7#,SX70,YX7#..5F

長さ=16,外径=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX7#,LX7#,SX70,YX7#..5F

長さ=16,外径=12

 6
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

GX7#,LX7#,SX70,YX7#..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-28010

YX7#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-28010

YX7#..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22020

GX7#,LX7#,SX70,YX7#..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

GX7#,LX7#,SX70,YX7#..5F

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-22010

GX7#,LX7#,SX70,YX7#..5F

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-22010

GX7#,LX7#,SX70,YX7#..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-22010

GX7#,LX7#,SX70,YX7#..5F

 1
Common parts
90119-08213
90119-12168
90149-80002
91611-61028
91611-61040
91611-61045
91651-61055
91659-61260
